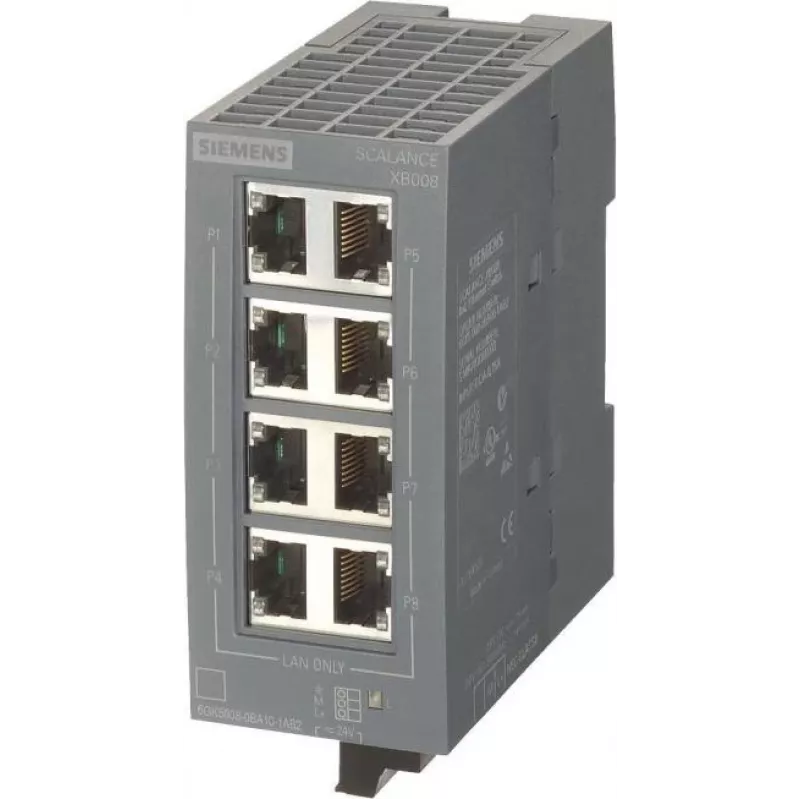

Siemens 6GK5008-0BA10-1AB2 SCALANCE XB008 Switch Ethernet industrial no gestionado, 8 puertos 10/100 Mbps, montaje en carril DIN

The Siemens SCALANCE XB008 is a compact, unmanaged Industrial Ethernet switch designed for reliable data communication in harsh industrial environments. With 8 RJ45 ports supporting 10/100 Mbit/s, it provides a cost-effective solution for connecting automation components. The switch features a robust plastic housing, DIN rail or wall mounting, and a wide operating temperature range from -10 to +60 °C, making it ideal for use in control cabinets and industrial settings.

Advantages

• Unmanaged plug-and-play operation reduces installation time and complexity.
• Redundant power input ensures high availability and fault tolerance.
• Compact design saves space in control cabinets.
• Compliant with IEEE 802.3, 802.3u, and 802.3x standards for interoperability.
• Auto-negotiation and auto MDI/MDI-X simplify cabling.

Suitable for

• Industrial automation networks
• Factory floor communication
• Building automation systems
• Machine-to-machine connectivity
• Remote monitoring applications

Key specifications

• Switch type: Unmanaged
• Number of Ethernet ports: 8
• Port type: RJ45
• Ethernet speed: 10/100 Mbit/s (Fast Ethernet)
• Power supply: 24 V DC (18.5–30.2 V DC)
• Current consumption: Max. 0.1 A at 24 V DC
• Mounting: DIN rail, wall mounting
• Operating temperature: -10 to +60 °C
• Storage temperature: -40 to +80 °C
• Protection class: IP20
• Housing material: Plastic
• Redundant power input: Yes
• Auto-negotiation: Yes
• Auto MDI/MDI-X: Yes

Recommendations

For optimal performance, use shielded Ethernet cables and ensure proper grounding. The switch is suitable for use in industrial environments with moderate vibration and shock. For extended temperature ranges or additional features, consider the managed SCALANCE XB-200 series.
