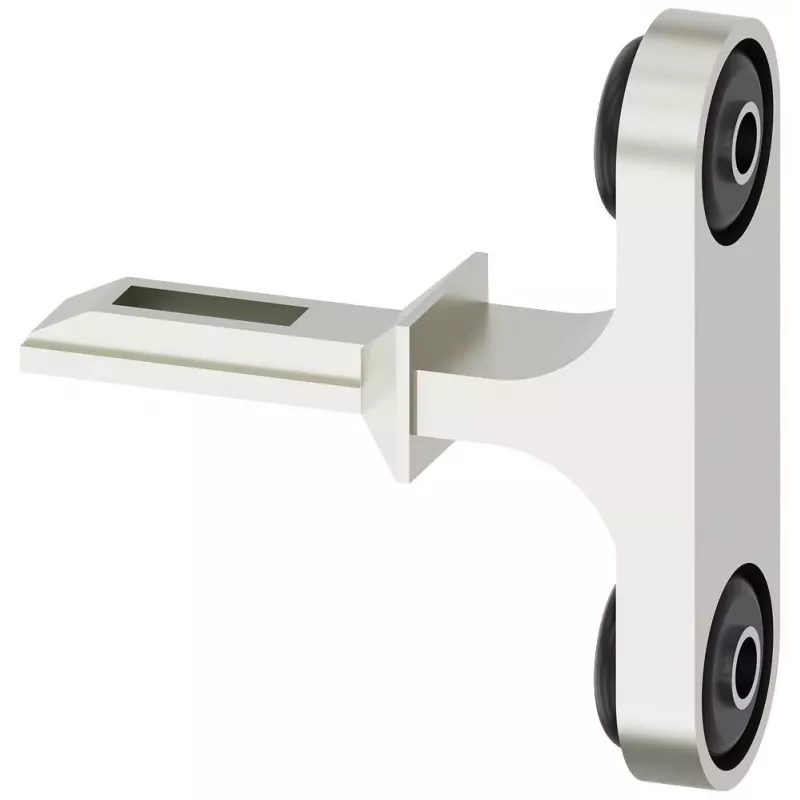

Siemens Actuador separado para montaje vertical 3SE50000AV02

In safety-critical machinery, a position switch alone cannot guarantee that a movable guard is securely closed. This separate actuator provides the mechanical key that engages with compatible Siemens SIRIUS position switches, ensuring reliable monitoring of hinged or sliding guards. It is the missing link for a complete safety circuit.

Who is it for

Maintenance engineers and machine builders who need a robust, metal actuator for vertical mounting on guards in industrial environments. It suits applications where a tongue or key actuator is required for safety switch operation.

Main features

• Separate actuator for use with Siemens SIRIUS 3SE51, 3SE52, and 3SE53 safety position switches
• Vertical mounting orientation for flexible installation
• Metal construction for durability in harsh industrial settings
• Mechanical operating principle, no electronics required

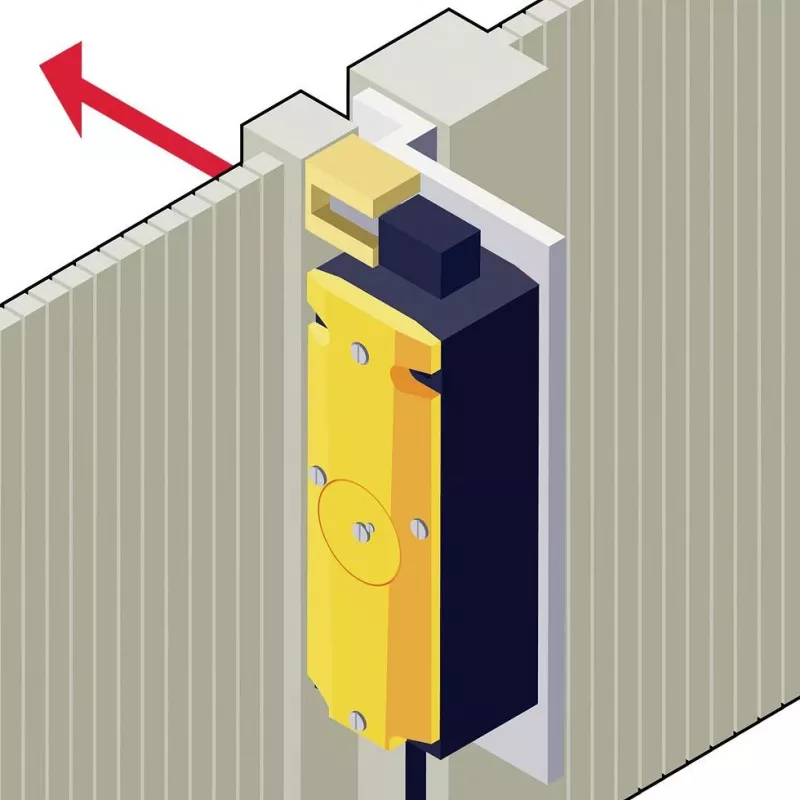

• Designed for hinged or sliding guards and doors

Specifications

• Component type: Separate actuator
• Actuator design: Tongue / key actuator
• Mounting type: Vertical
• Compatibility: Siemens SIRIUS 3SE51, 3SE52, 3SE53
• Material: Metal
• Series: Siemens SIRIUS 3SE5

Tips

Verify that the actuator matches the specific position switch model before installation. For safety circuits, always follow the switch manufacturer's instructions and applicable standards.
