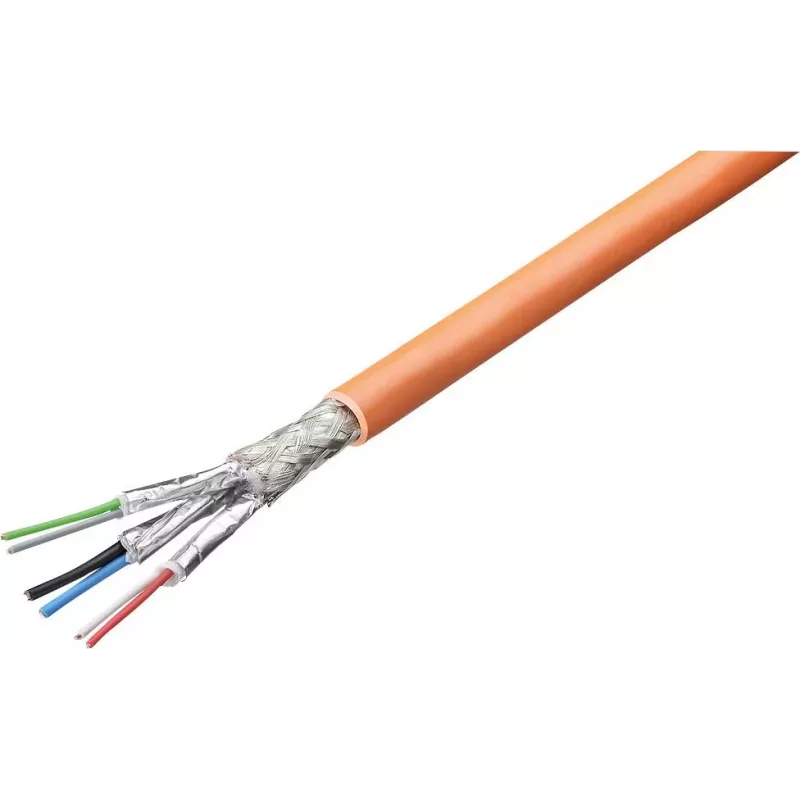

Siemens Cable especial 2x0,75ST+2 7MH4702-8AG (7MH47028AG)

For technicians connecting Siemens SITRANS F M MAG 5000 and MAG 6000 electromagnetic flow meters in industrial process automation, this 10-meter special cable provides the necessary signal and power conductors in one shielded jacket. The cable combines a twisted pair for signal transmission with two additional cores for power or control, all protected by an overall shield and a grey PVC jacket.

Key specifications

• Length: 10 m
• Signal cores: 2 x 0.75 mm² twisted pair
• Power/control cores: 2 x 0.34 mm²
• Shielding: Overall shield
• Jacket material: PVC
• Outer diameter: 9.5 mm
• Colour: Grey
• Operating temperature: -20 °C to +70 °C
• Voltage rating: 300 V
• Termination: Unterminated (bare ends)

Why choose it

This cable is specifically designed for Siemens flow meters, ensuring reliable signal integrity and power delivery in demanding industrial environments. The twisted pair construction minimizes electromagnetic interference, and the overall shield provides additional protection.

Ideal use cases

• Connecting Siemens SITRANS F M MAG 5000 flow meters
• Connecting Siemens SITRANS F M MAG 6000 flow meters
• Industrial automation and process instrumentation installations

Good to know

The cable is supplied with bare ends for custom termination. It complies with CE and RoHS directives.
