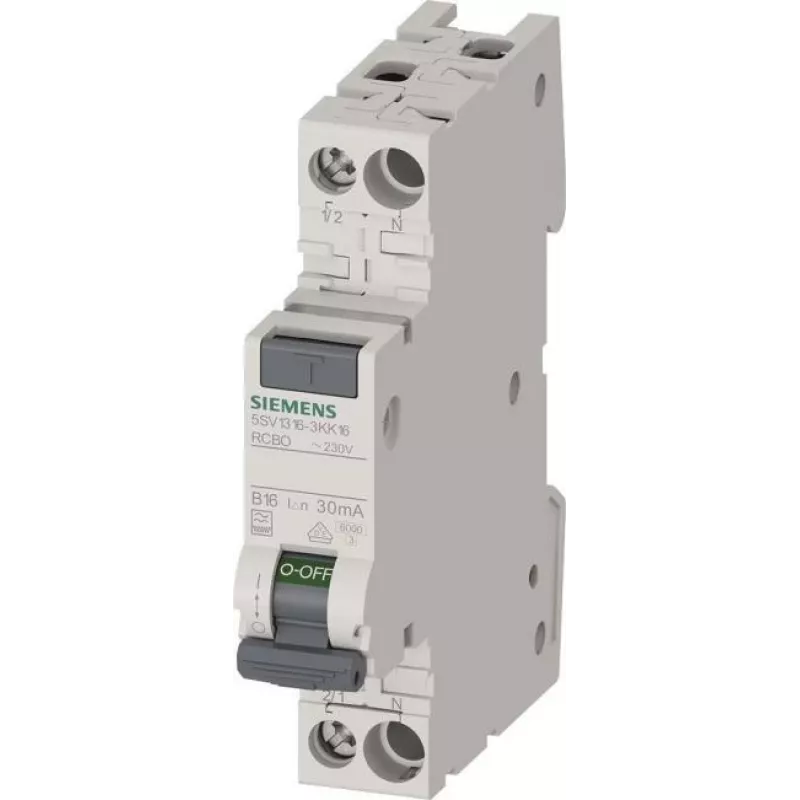

Siemens SENTRON 5SV1316-3KK16 RCBO tipo F 30mA B16 1P+N 16A 6kA

The Siemens SENTRON 5SV1316-3KK16 is a compact Residual Current Circuit Breaker with Overcurrent Protection (RCBO) designed for reliable protection in industrial and commercial applications. This Type F device combines a 16 A overcurrent release (B characteristic) with a 30 mA residual current protection, ensuring safety against both overloads and earth faults. Ideal for circuits with frequency converters or other equipment generating mixed frequencies, the Type F design provides enhanced immunity to unwanted tripping.

Advantages

Combined overcurrent and residual current protection in a single device saves space and installation time. Type F sensitivity ensures compatibility with modern electronic loads. High short-circuit breaking capacity of 6 kA guarantees robust performance. Easy DIN rail mounting and screw terminals simplify wiring.

Suitable for

• Industrial control panels
• Commercial building distribution boards
• Circuits with frequency converters, UPS systems, or LED lighting
• Protection of final circuits in TN and TT systems

Key specifications

• Product Type: Residual Current Circuit Breaker with Overcurrent Protection (RCBO)
• Series: SENTRON
• Number of Poles: 1P+N (1-pole protected, 2-pole switching)
• Rated Current (In): 16 A
• Tripping Characteristic: B
• Rated Residual Operating Current (IΔn): 30 mA
• Residual Current Type: Type F
• Rated Voltage (Ue): 230 V AC
• Rated Frequency: 50/60 Hz
• Short-Circuit Breaking Capacity (Icn): 6 kA
• Mounting Type: DIN rail (TH 35 mm)
• Degree of Protection: IP20 (terminals), IP40 (with enclosure)
• Operating Temperature Range: -25 to +45 °C
• Terminal Type: Screw terminals
• Terminal Capacity (Solid/Stranded): 0.75 to 25 mm²
• Mechanical Endurance: 10000 switching cycles
• Electrical Endurance: 10000 switching cycles
• Pollution Degree: 2
• Overvoltage Category: III
• Standards: EN 61009-1, IEC 61009-1

Recommendations

For optimal performance, ensure proper torque settings for screw terminals as per manufacturer guidelines. This RCBO is suitable for use in distribution boards with IP40 or higher enclosure rating. Always verify compatibility with upstream protective devices.
