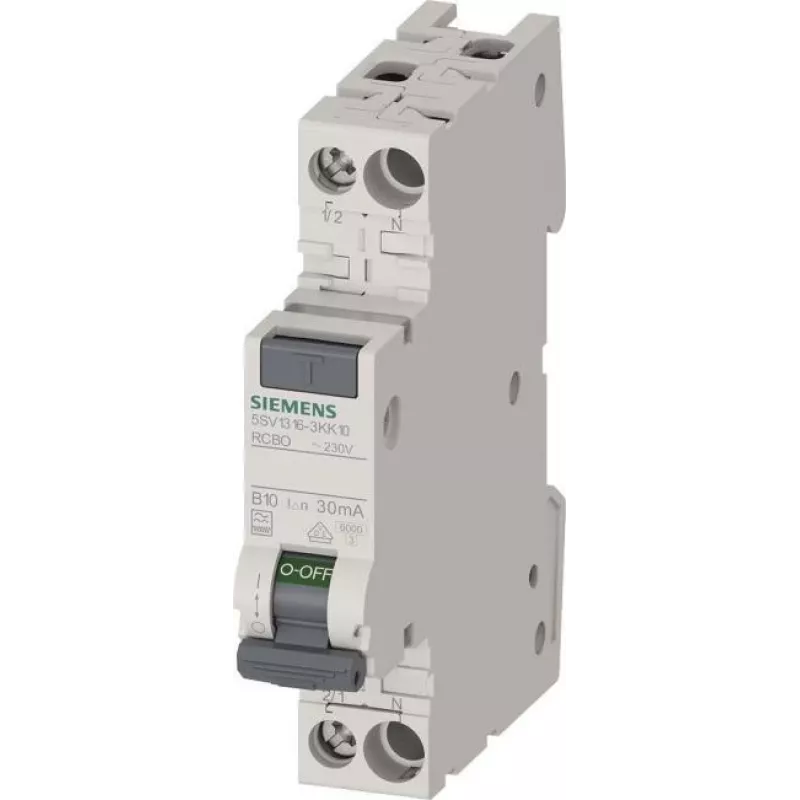

Siemens SENTRON Interruptor diferencial/automático 1TE 1P+N 6kA tipo F 30mA B10 - interruptor automático magnetotérmico (5SV13163KK10)

The Siemens SENTRON 5SV13163KK10 is a high-quality Residual Current Breaker with Overcurrent (RCBO) designed for reliable protection in residential and commercial electrical installations. This compact 1TE device combines a residual current device (RCD) and a miniature circuit breaker (MCB) in one unit, saving space in the distribution board.

Advantages

Combined overcurrent and residual current protection in a single module reduces installation time and cabinet space. Type F sensitivity ensures protection against AC, pulsating DC, and mixed frequencies up to 1 kHz, making it suitable for modern appliances with variable frequency drives. The B tripping characteristic provides fast response for resistive and small inductive loads.

Suitable for

• Residential and commercial electrical panels
• Protection of final circuits supplying socket outlets, lighting, and small appliances
• Installations requiring Type F residual current protection (e.g., equipment with frequency converters)

Key specifications

• Rated current: 10 A
• Tripping characteristic: B
• Rated residual operating current: 30 mA
• Residual current type: Type F
• Rated short-circuit breaking capacity: 6 kA
• Number of poles: 1P+N
• Rated voltage: 230 V AC
• Frequency: 50/60 Hz
• Mounting: DIN rail (EN 60715)
• Module width: 1 TE (18 mm)
• Degree of protection: IP20 (terminals), IP40 (front panel)
• Operating temperature: -25 to +55 °C
• Standards: IEC/EN 61009-1

Recommendations

For optimal performance, ensure proper tightening torque of screw terminals (0.75-25 mm²) and maintain adequate ventilation in the distribution board. Always follow local electrical regulations.
