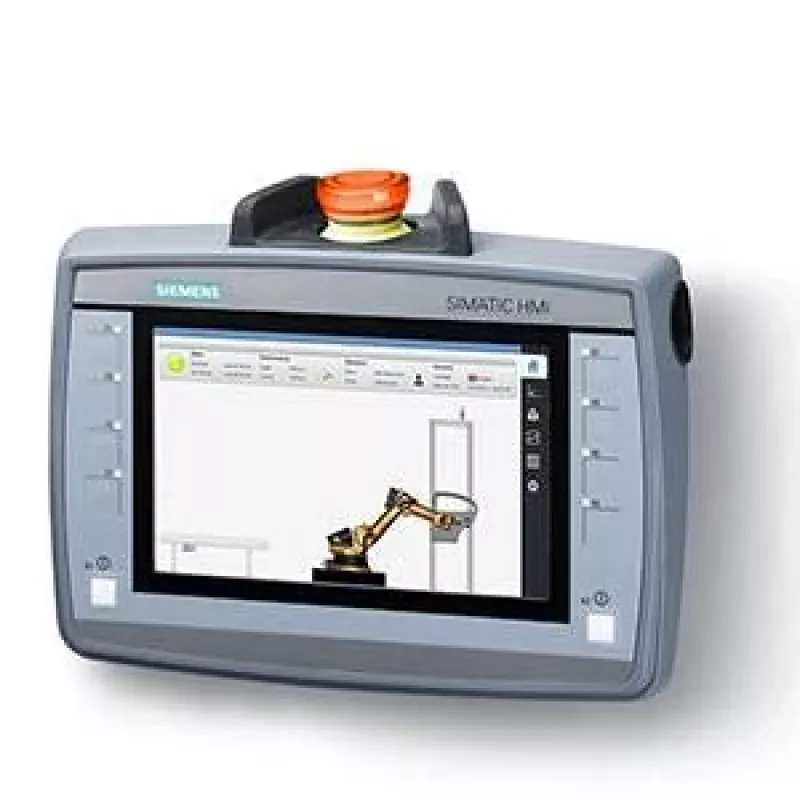

Siemens SIMATIC HMI KTP700F Mobile Panel táctil TFT de 7" con PROFINET, IP65, parada de emergencia y pulsadores de habilitación 6AV21252GB230AX0

In industrial environments where operators must move between machines, fixed HMI panels force them to return to a single location to acknowledge alarms or stop processes. The Siemens SIMATIC HMI KTP700F Mobile solves this by putting a rugged 7-inch touch panel in the operator's hands, with integrated safety functions that allow safe control from anywhere on the plant floor.

Who is it for

This mobile HMI is built for machine builders and plant operators who need a portable, safety-rated interface for commissioning, maintenance, and machine control. It suits applications in packaging, material handling, and automated assembly where operators move along the line.

Main features

• 7-inch widescreen TFT display with 800 x 480 pixel resolution and 16 million colors for clear visualization.
• Resistive touch screen works with gloves, ideal for industrial use.
• Integrated safety elements: 3-stage acknowledgment button, emergency stop button, and key switch.
• PROFINET interface for reliable communication with Siemens PLCs.
• USB 2.0 Type A port for data transfer and maintenance.
• Front panel rated IP65 for dust and water resistance; rear rated IP20.
• Runs on Windows CE 6.0 with 12 MB user memory, configurable via TIA Portal WinCC Comfort V13 SP1 UPD3 or higher.
• Powered by 24 V DC (19.2–28.8 V), with maximum current consumption of 1.2 A.
• Operating temperature range: 0 to 45 °C.

Specifications

• Display: 7" TFT, 800 x 480 pixels, 16 million colors, LED backlight dimmable.
• Touch: Resistive.
• Processor: ARM.
• User memory: 12 MB.
• Operating system: Windows CE 6.0.
• Interfaces: PROFINET (Ethernet), USB 2.0 Type A.
• Safety functions: 3-stage acknowledgment button, emergency stop button, key switch.
• Enclosure rating: Front IP65, rear IP20.
• Power supply: 24 V DC (19.2–28.8 V), max 1.2 A.
• Configuration software: TIA Portal WinCC Comfort V13 SP1 UPD3 or higher.
• Operating temperature: 0 to 45 °C.

Tips

For optimal performance, ensure the device is configured with a compatible version of TIA Portal and that the power supply remains within the specified voltage range. The resistive touch screen is best operated with a stylus or gloved finger for precise input.
