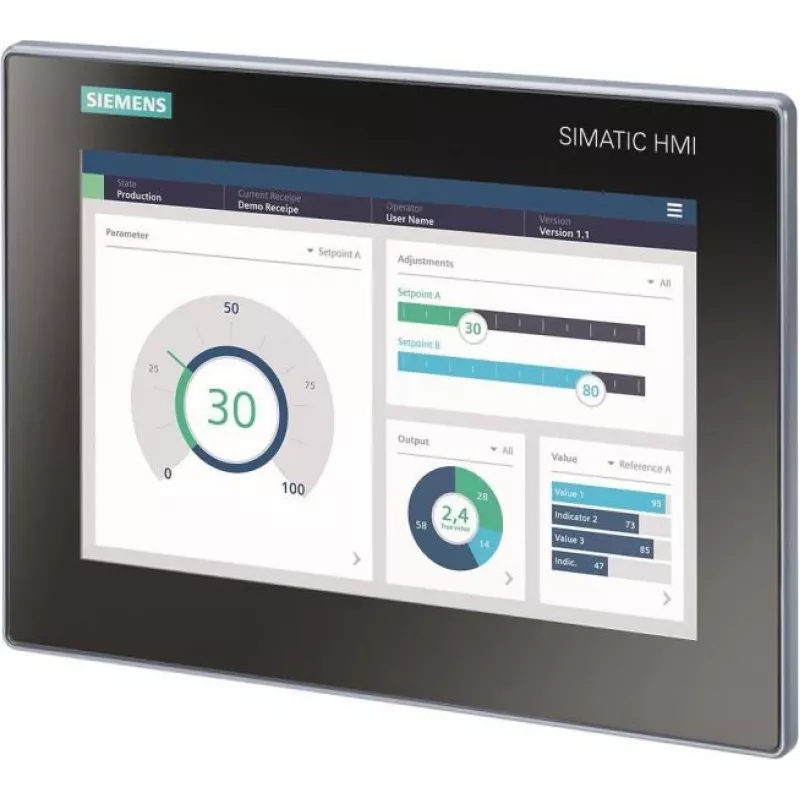

Siemens SIMATIC HMI MTP1000 Unified Basic Panel pantalla táctil de 10,1" , PROFINET, 24V DC

The Siemens SIMATIC HMI MTP1000 Unified Basic Panel (6AV2123-3KB32-0AW0) is a modern human-machine interface designed for efficient machine and plant operation. With a 10.1-inch widescreen TFT display featuring capacitive multi-touch technology, it offers intuitive and responsive control. The panel is powered by an ARM-based processor and runs on a Linux-based operating system, ensuring reliable performance in industrial environments.

Advantages

This HMI panel provides a high-resolution 1280x800 pixel display with 16 million colors for clear visualization. Its capacitive multi-touch screen supports gestures for easy navigation. The device includes PROFINET/Industrial Ethernet and two USB Type A interfaces for flexible connectivity. With an IP65 front protection rating, it is resistant to dust and water jets, making it suitable for harsh industrial settings.

Suitable for

• Industrial automation and control systems
• Machine building and plant engineering
• Process monitoring and data visualization
• Applications requiring a robust, panel-mounted HMI

Key specifications

• Display: 10.1" TFT widescreen, LED backlight, 1280x800 pixels
• Touch: Capacitive multi-touch
• Processor: ARM-based
• RAM: 1 GB
• User memory: 12 MB for project data
• Communication: 1x PROFINET/Industrial Ethernet (RJ45), 2x USB Type A
• Input voltage: 24 V DC (19.2 V to 28.8 V)
• Power consumption: max. 14.4 W
• Protection rating: front IP65, rear IP20
• Mounting: panel mounting, cut-out 269 x 212 mm
• Operating temperature: 0 to 50 °C
• Backlight lifetime: 50,000 hours at 25°C
• Configuration software: TIA Portal WinCC Unified Basic V16 or higher

Recommendations

For optimal performance, use the Siemens TIA Portal software for configuration. Ensure proper panel mounting and sealing to maintain IP65 protection. This device is ideal for new installations or upgrades in industrial automation.
