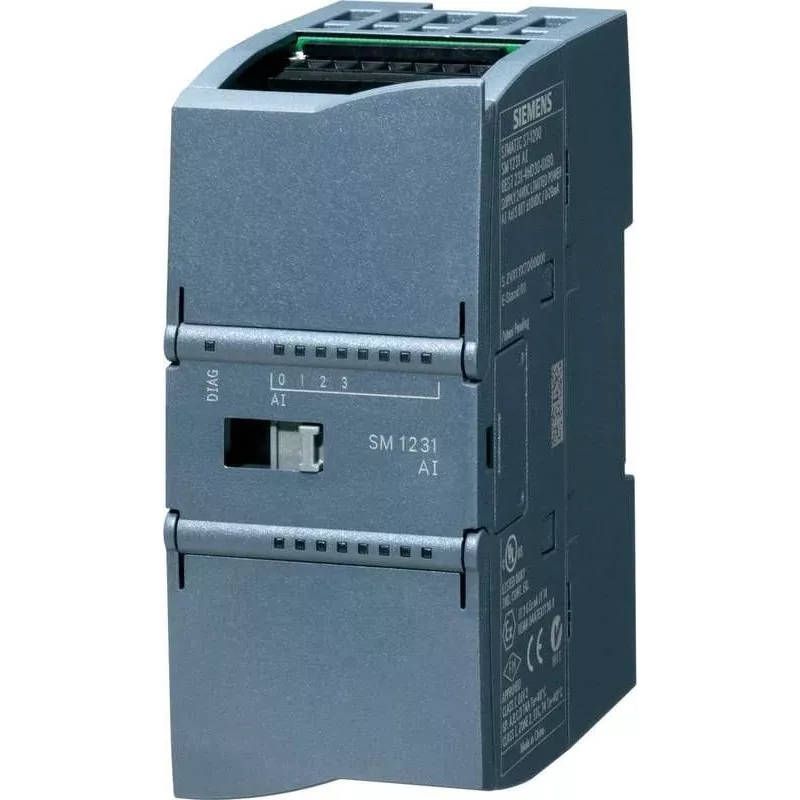

Siemens SIMATIC S7-1200 SM 1231 módulo de entrada analógica 6ES7231-4HD32-0XB0, 4 AI, 0-20mA/4-20mA, 13 bits, bornes enchufables

Automation engineers integrating the SIMATIC S7-1200 PLC into process control systems often require precise current signal acquisition from field transmitters. The Siemens SM 1231 analog input module 6ES7231-4HD32-0XB0 delivers four 13-bit analog inputs for 0-20 mA or 4-20 mA current loops, enabling accurate monitoring of pressure, flow, level, or temperature in industrial environments.

Key specifications

• 4 analog inputs, configurable for 0-20 mA or 4-20 mA current signals
• 13-bit resolution with 0.625 µA per bit for high measurement precision
• Pluggable terminal block for fast wiring and module replacement
• Compact 45 mm width for space-efficient panel installation
• Operates on 24 V DC from the S7-1200 backplane bus
• Supports diagnostics for wire break and overflow/underflow detection
• CE, UL, and cULus certified for global industrial use

Why choose it

This module extends the S7-1200's native I/O with dedicated analog current inputs, eliminating the need for external signal converters. Its high resolution and built-in diagnostics reduce commissioning time and improve system reliability. The pluggable terminals simplify maintenance, allowing pre-wiring and quick module swaps without rewiring.

Ideal use cases

• Connecting 2-wire or 4-wire 4-20 mA transmitters for process variables
• Monitoring analog sensors in packaging, material handling, and HVAC systems
• Retrofitting existing S7-1200 installations with additional analog channels
• Data acquisition applications requiring 13-bit current measurement

Good to know

The module is compatible with all SIMATIC S7-1200 CPUs (firmware V4.0 or higher) and can be mounted directly to the right of the CPU or other signal modules. It draws power from the backplane bus, so no separate supply wiring is needed. For best accuracy, use shielded twisted-pair cables and keep signal wiring away from high-voltage lines.
