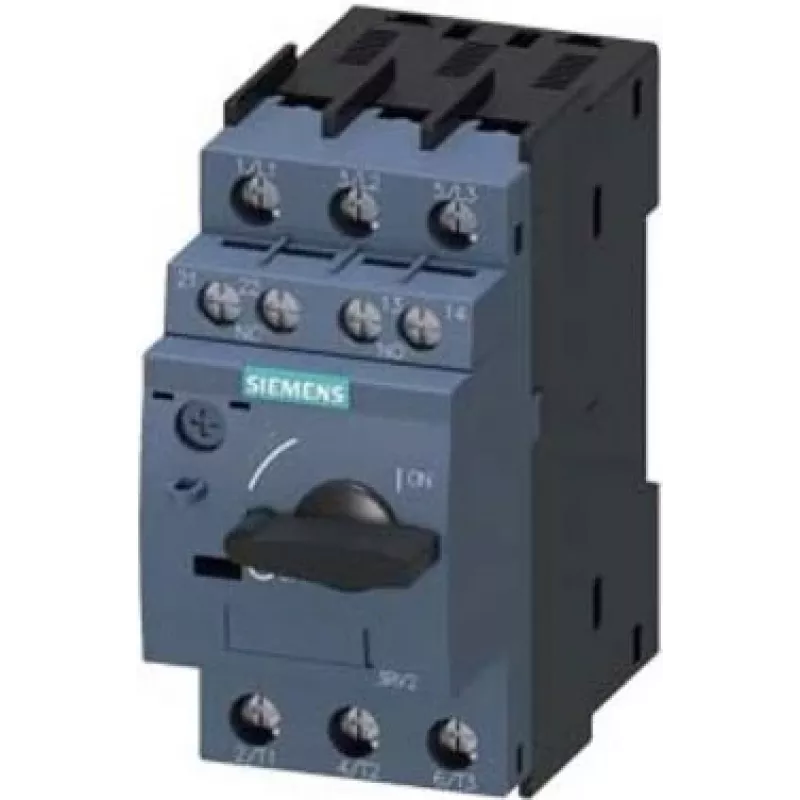

SIEMENS SIRIUS 3RV2 interruptor de protección de motor, 0,18-0,25A, 3 polos, clase 10, bornes de tornillo, 3RV20110CA15

A compact motor starter protector that sets itself apart with a fixed magnetic short-circuit release at 3.3 A and a thermal overload range adjustable from 0.18 to 0.25 A. The SIRIUS 3RV2 series delivers dependable protection for small AC motors in industrial control panels, combining precise trip settings with a space-saving S00 footprint.

Highlights

• Adjustable thermal overload release: 0.18–0.25 A
• Fixed magnetic short-circuit release: 3.3 A
• High breaking capacity: 100 kA at 400 V AC
• 3-pole design with screw terminals for secure wiring
• Class 10 trip characteristic for normal motor starting
• Mounts on standard 35 mm DIN rail or via screw fixing
• IP20 finger-safe protection

In daily use

The 3RV20110CA15 sits directly at the motor branch, providing both overload and short-circuit protection without the need for separate fuses. Its thermal release reacts to sustained overcurrents, while the magnetic trip clears high-level faults instantly. The adjustment dial allows fine-tuning within the 0.18–0.25 A window, ensuring the motor is protected without nuisance tripping during normal inrush. Screw terminals accept solid or stranded conductors, and the clear switching state indication simplifies troubleshooting on the factory floor.

Full specifications

• Brand: SIEMENS
• Model: 3RV20110CA15
• MPN: 3RV20110CA15
• EAN: 4011209840874
• Product type: Motor starter protector
• Series: SIRIUS 3RV2
• Size: S00
• Rated operational current (Ie): 0.18–0.25 A
• Adjustable current range (Ir): 0.18–0.25 A
• Short-circuit release (N-release): 3.3 A fixed
• Short-circuit breaking capacity (Icu): 100 kA at 400 V AC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Number of poles: 3
• Trip class: CLASS 10
• Connection type: Screw terminal
• Mounting type: DIN rail / Screw mounting
• Operating temperature: -20 to +60 °C
• Degree of protection: IP20
• Switching capacity: Standard
• Overload release type: Thermal (adjustable)
• Short-circuit release type: Magnetic (fixed)
• Suitable for: AC motors
• Electrical service life: 100,000 switching cycles

Final note

Engineered for reliable motor protection in compact installations, the 3RV20110CA15 offers precise adjustment and high fault-clearing capability in a DIN-rail-mountable package.
