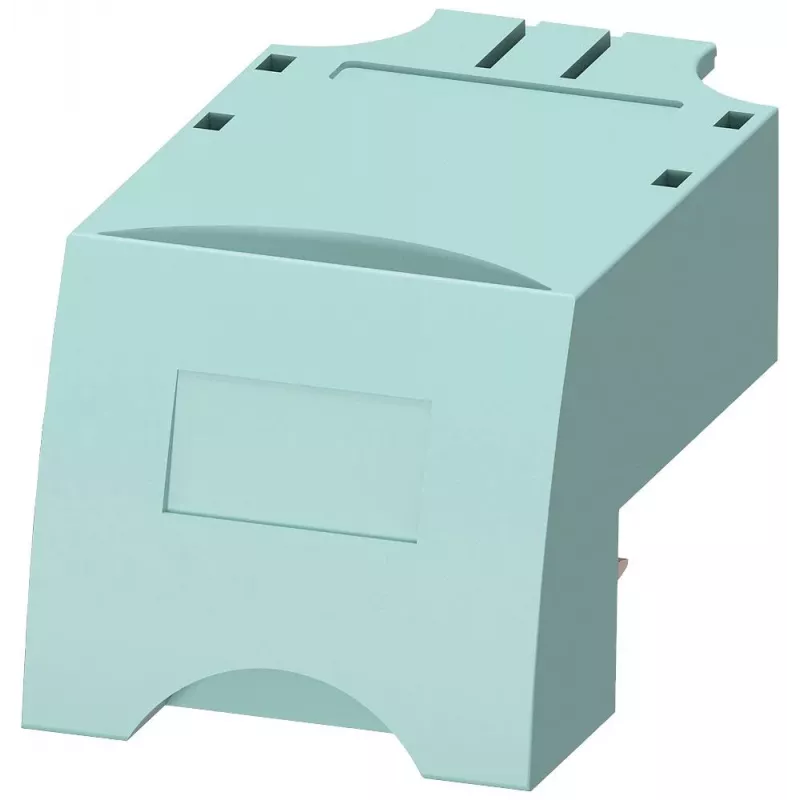

SIEMENS SIRIUS 3RV2917-5AA00 conector para interruptor automático S00, borne de resorte, configuración sencilla

This plug-in connector is an accessory for SIEMENS SIRIUS 3RV2 circuit breakers and motor starters, providing a reliable spring-type terminal connection for frame size S00. Its simple design allows quick and secure plug-in mounting without tools.

Advantages

The spring-type terminal ensures vibration-resistant and maintenance-free connections. The plug-in design enables fast installation and replacement, reducing downtime. The connector is built from insulating material, offering electrical safety and durability.

Suitable for

• SIEMENS SIRIUS 3RV2 circuit breakers, size S00
• Motor starter protectors and compact starters
• Industrial control panels and machinery

Key specifications

• Connection technology: Spring-type terminal
• Design configuration: Simple
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Operating temperature: -25 to +60 °C
• Degree of protection: IP20
• Pollution degree: 3
• Housing material: Insulating material
• Colour: Dark grey / Black

Recommendations

Use this connector with compatible SIEMENS SIRIUS devices to ensure proper fit and performance. Verify the frame size and connection type before ordering.
