Siemens SIRIUS 3RV2917-5CA00 Módulo de conexión para interruptores de protección de motor S00 y contactores

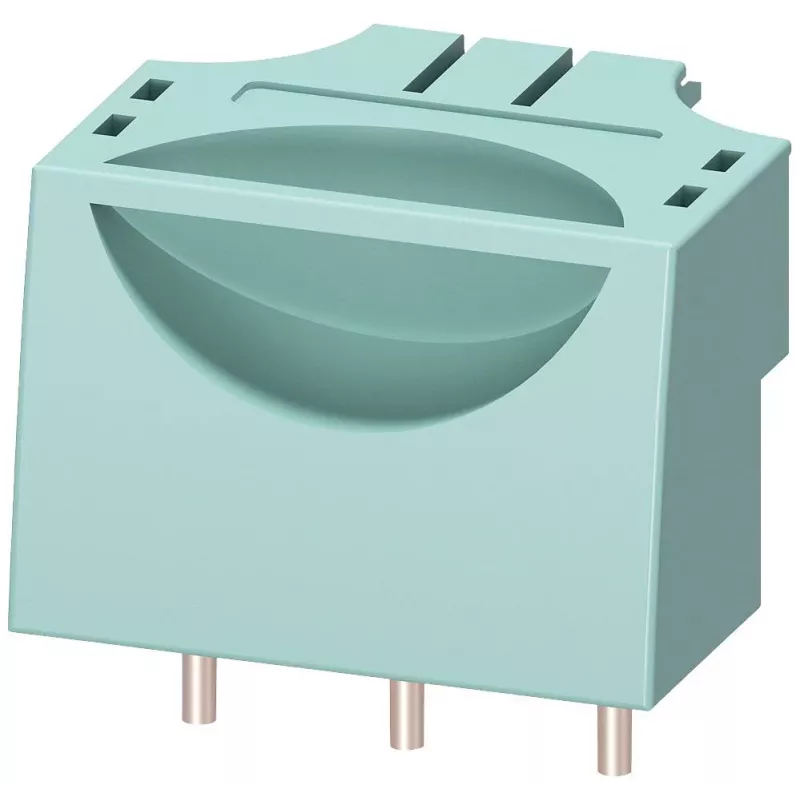

When building compact motor starter combinations with Siemens SIRIUS devices, linking the motor starter protector and contactor can be a wiring challenge. The Siemens 3RV2917-5CA00 link module solves this by providing a direct, tool-free electrical and mechanical connection between a 3RV2 motor starter protector and a 3RT2 contactor, both in size S00. This creates a space-saving, reliable starter assembly without additional wiring.

Who is it for

This link module is intended for panel builders, machine builders, and maintenance technicians who assemble or service motor starters using Siemens SIRIUS modular components. It is essential for anyone needing a quick and secure connection between the protection and switching devices in industrial control applications.

Main features

• Direct plug-in connection between SIRIUS 3RV2 motor starter protector and 3RT2 contactor, size S00
• Connects all 3 main current paths simultaneously
• Tool-free mounting and removal for fast assembly
• Compact design saves space in the control cabinet
• Compatible with the Siemens SIRIUS modular system
• Operating temperature range: -25 to +60 °C

Specifications

• Product type: Link module
• For use with: Siemens SIRIUS motor starter protectors and contactors
• Compatible motor starter series: SIRIUS 3RV2, size S00
• Compatible contactor series: SIRIUS 3RT2, size S00
• Number of poles connected: 3
• Mounting method: Direct mounting / plug-in
• Electrical connection: Main current path connection
• Standards: IEC 60947
• Storage temperature range: -40 to +80 °C
• Application: Industrial motor control, automation

Tips

Ensure both the motor starter protector and contactor are size S00 and from the specified series before installation. The module snaps into place without tools, but verify alignment of the main current paths to avoid damage. For maintenance, the module can be removed quickly to separate the devices.
