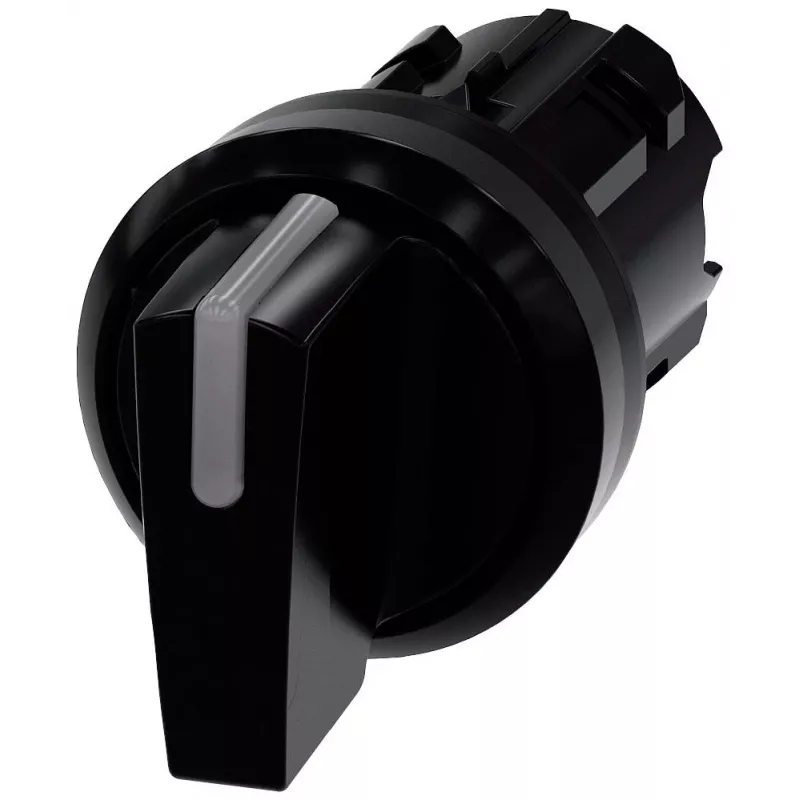

Siemens SIRIUS ACT 3SU1002-2BN10-0AA0 accionamiento de selector, 22mm, 3 posiciones, enclavamiento, mango giratorio corto, negro, iluminable

Control panels often require a robust selector switch that can withstand harsh industrial environments while providing clear visual indication of the selected position. The Siemens 3SU10022BN100AA0 selector switch actuator addresses this need with its durable plastic front ring and illuminable black toggle, designed for 22 mm mounting holes.

Who is it for

This actuator is intended for machine builders, panel builders, and maintenance technicians who need a reliable, latching selector switch for control circuits in industrial applications. It is suitable for use in environments where front protection up to IP69K is required.

Main features

• Selector switch actuator with short toggle, black colour
• Mounting diameter: 22 mm
• Number of positions: 3, with switching angle 2 x 45°
• Operating mode: latching
• Illuminable design (illumination capability: yes)
• Front ring material: plastic, colour black
• Degree of protection (front): IP66, IP67, IP69, IP69K
• Mechanical service life: 100,000 switching cycles
• Operating temperature: -25 to +70 °C

Specifications

• Brand: Siemens
• Model: 3SU10022BN100AA0
• MPN: 3SU1002-2BN10-0AA0
• Product type: Selector switch actuator
• Series: SIRIUS ACT
• Mounting diameter: 22 mm
• Number of positions: 3
• Switching angle: 2 x 45°
• Operating mode: Latching
• Actuator type: Short toggle
• Actuator colour: Black
• Front ring material: Plastic
• Front ring colour: Black
• Illumination capability: Yes
• Degree of protection (front): IP66, IP67, IP69, IP69K
• NEMA rating (front): NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Mechanical service life: 100,000 switching cycles
• Standards compliance: IEC 60947-5-1, EN 60947-5-1, UL, CSA
• Shock resistance: 10g / 11 ms
• Vibration resistance: 10 ... 500 Hz: 5g

Tips

When integrating this actuator, ensure the control panel cutout is exactly 22 mm in diameter to maintain the specified front protection rating. For illuminated operation, pair with a compatible LED module from the SIRIUS ACT series.
