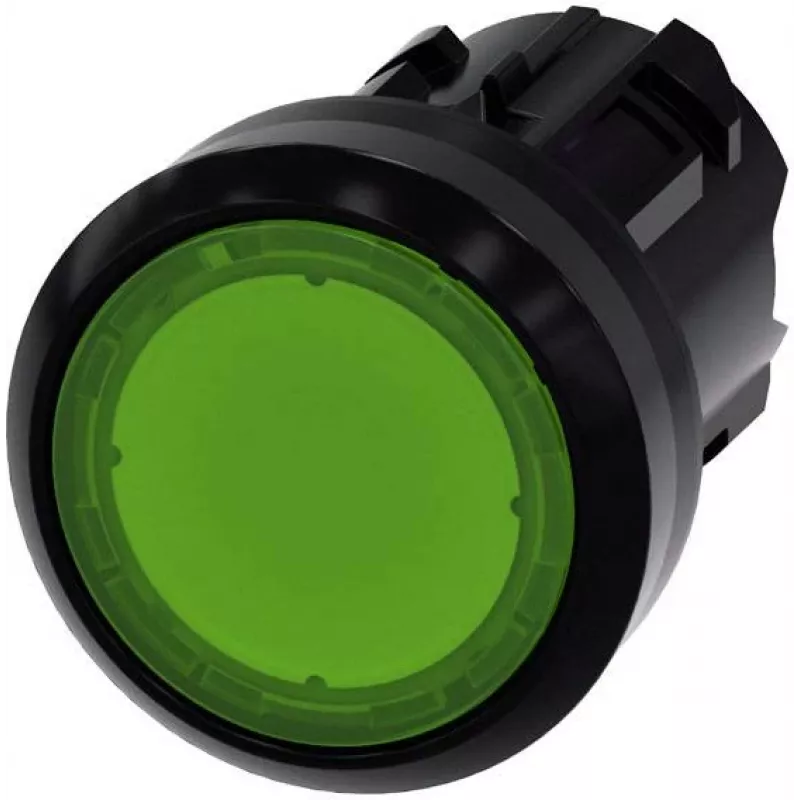

Siemens SIRIUS ACT Accionamiento de pulsador, 22mm, redondo, verde, momentáneo, sin iluminación, anillo frontal de plástico, negro 3SU10010AD400AA0

Industrial control panels often require a reliable, easy-to-actuate button that can withstand harsh environments while providing clear visual feedback. The Siemens SIRIUS ACT pushbutton actuator solves this by offering a robust 22mm round green actuator designed for front panel mounting, ensuring quick and safe machine operation.

Who is it for

This actuator is ideal for machine builders, panel builders, and maintenance technicians who need a dependable momentary pushbutton for control circuits in industrial applications such as conveyors, packaging machines, and process control systems.

Main features

• 22mm mounting diameter fits standard industrial panel cutouts.
• Round actuator shape with flat button design for comfortable operation.
• Green actuator color provides clear status indication.
• Momentary (spring return) operation returns the button to its original position after release.
• Non-illuminated design simplifies wiring and reduces cost.
• Plastic front ring in black offers a clean, professional appearance.
• High degree of protection: IP66, IP67, IP69K on the front, suitable for washdown environments.
• Wide operating temperature range from -25 to +70 °C.
• Long mechanical service life of 10,000,000 switching cycles.
• Compatible with SIRIUS ACT holders and contact blocks for flexible configuration.

Specifications

• Product Type: Pushbutton Actuator
• Series: SIRIUS ACT
• Mounting Diameter: 22 mm
• Actuator Shape: Round
• Actuator Color: Green
• Operating Mode: Momentary (Spring Return)
• Illumination: Non-illuminated
• Front Ring Material: Plastic
• Front Ring Color: Black
• Degree of Protection (Front): IP66, IP67, IP69K
• NEMA Rating (Front): NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
• Operating Temperature: -25 to +70 °C
• Mechanical Service Life: 10,000,000 switching cycles
• Mounting Type: Front Panel Mounting
• Compatibility: SIRIUS ACT Holders and Contact Blocks
• Button Design: Flat Button
• Number of Command Points: 1

Tips

Combine this actuator with a SIRIUS ACT contact block (sold separately) to complete the pushbutton assembly. Ensure the panel cutout is exactly 22mm for a secure fit. For illuminated applications, consider a different actuator variant with LED support.
