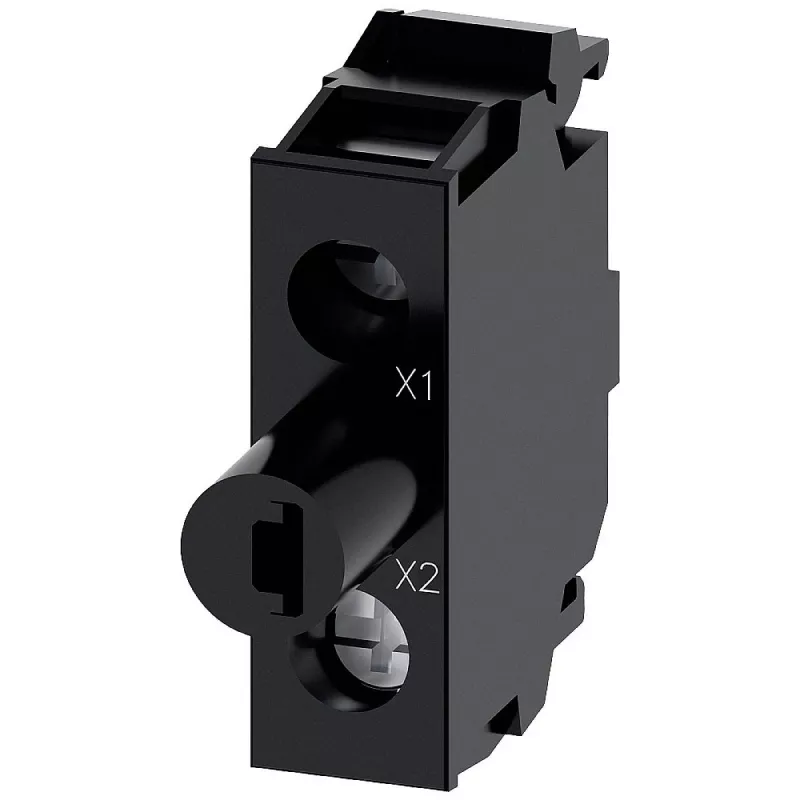

Siemens SIRIUS ACT Módulo LED con LED integrado, azul, 24V AC/DC, borne de tornillo, montaje 22mm 3SU14012BB501AA0

This LED module from the SIRIUS ACT series integrates the light source directly into the module, eliminating the need for a separate bulb and simplifying installation in 22mm control units. Its blue illumination provides clear status indication, and the screw terminal connection ensures secure wiring in industrial environments.

Highlights

• Integrated blue LED for permanent illumination
• Operates on 24V AC/DC, suitable for diverse control circuits
• Screw terminal connection for reliable, tool-secured wiring
• Front plate mounting for 22mm control units
• Long electrical service life of 100,000 hours

In daily use

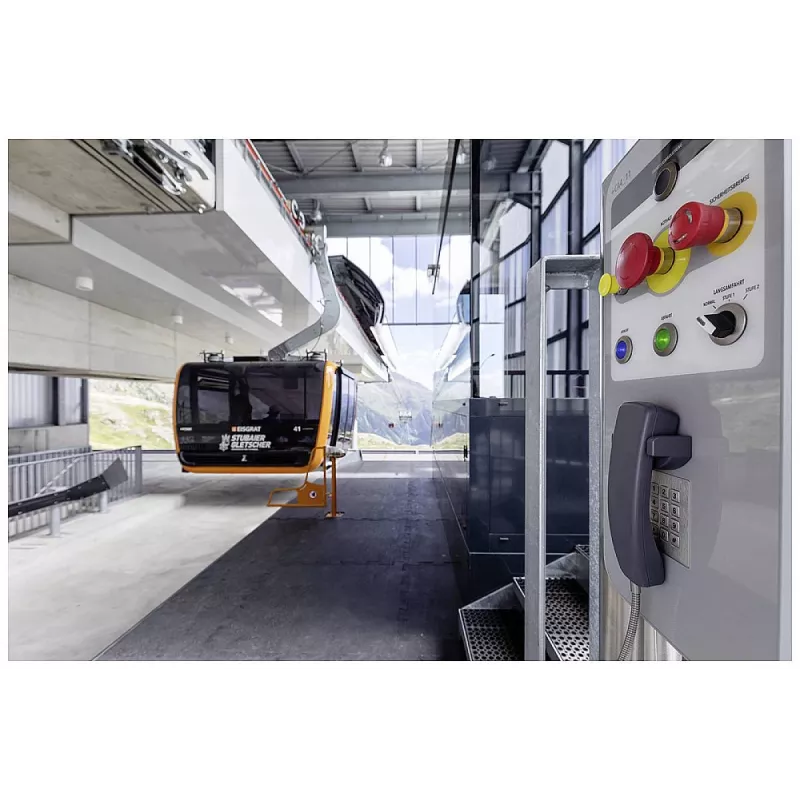

Designed for control panels and operator interfaces, this module provides consistent blue indication. Its compact design and screw terminals make it easy to integrate into existing setups. The module's wide operating temperature range from -25 to +70 °C ensures reliable performance in various industrial conditions.

Full specifications

• Product Type: LED Module
• Series: SIRIUS ACT
• Illumination Color: Blue
• Operating Voltage: 24 V AC/DC
• Rated Insulation Voltage: 320 V
• Rated Impulse Withstand Voltage: 4 kV
• Current Type: AC/DC
• Connection Type: Screw Terminal
• Mounting Type: Front Plate Mounting (for 22mm control units)
• Light Source: LED
• Electrical Service Life: 100,000 hours (at 24V)
• Power Consumption: 1.1 W (at 24V)
• Current Consumption: 25 mA (at 24V)
• Degree of Protection (IP): IP20 (module only)
• Ambient Operating Temperature: -25 to +70 °C
• Ambient Storage Temperature: -40 to +80 °C
• Relative Humidity: 10-95% (non-condensing)
• Compatibility: For 22mm Control Units
• Illumination Type: Permanent Light

Final note

This module is a reliable choice for adding blue indication to your control system, with straightforward installation and long-lasting LED technology.
