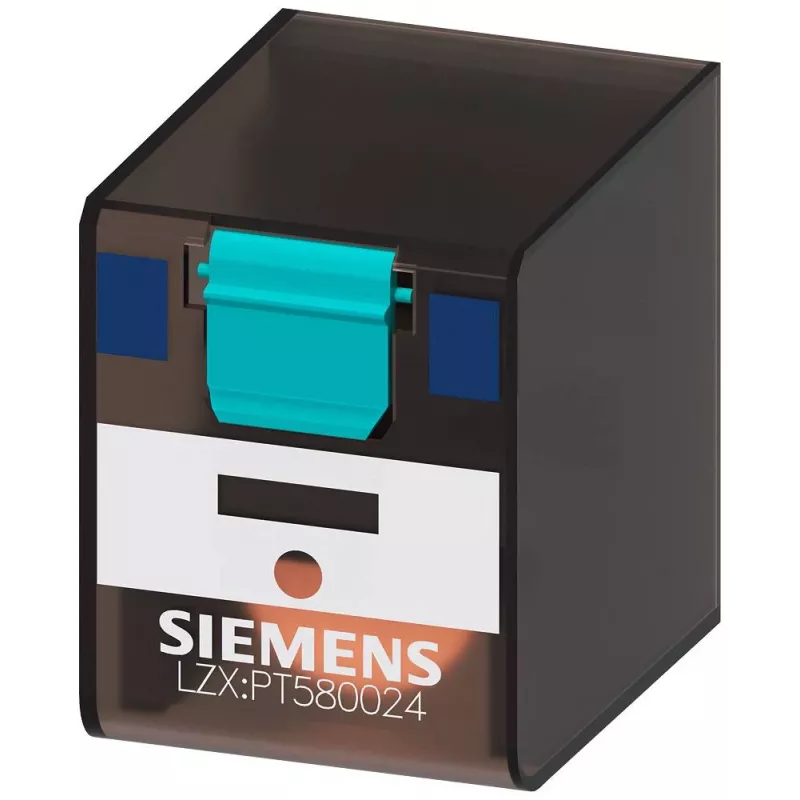

Siemens SIRIUS LZX PT580024 relé enchufable, 5 conmutadores, bobina 24V DC, 6A

The Siemens LZX:PT580024 is a plug-in relay from the SIRIUS LZX series, offering five changeover contacts and a 24V DC coil. Its 6 A switching capacity and AgNi contacts make it suitable for a wide range of industrial control tasks where reliable signal multiplication is required.

Highlights

• 5 changeover contacts (5PDT) for versatile switching configurations
• 24V DC coil with low power consumption of approximately 0.9 W
• Contacts rated for 6 A at up to 250 V AC/DC
• Silver nickel (AgNi) contact material for long service life
• Designed for plug-in mounting with compatible SIRIUS LZS sockets

In daily use

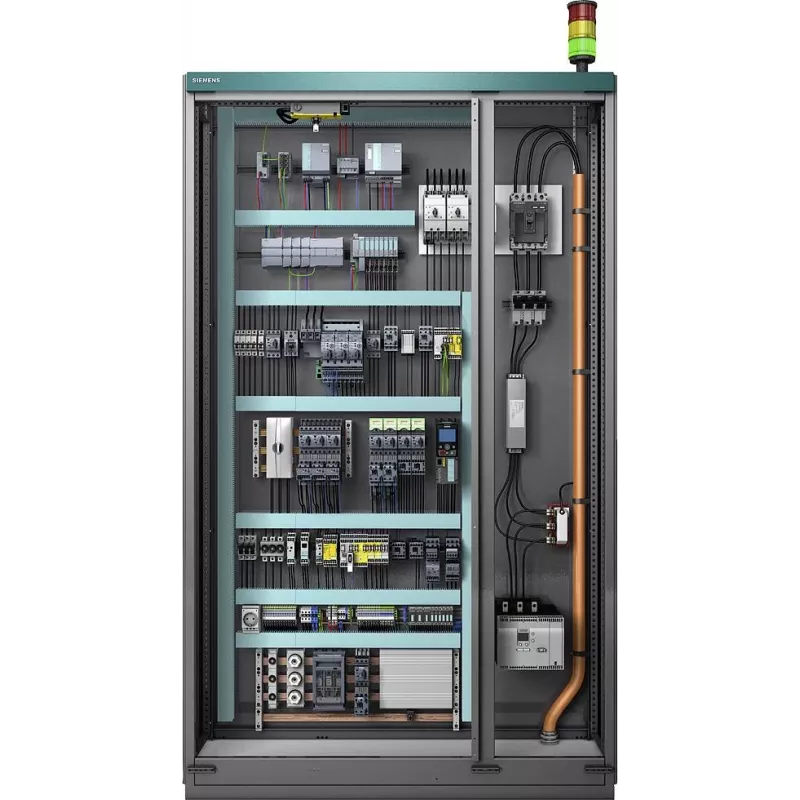

This relay is intended for installation into a suitable relay socket, such as the LZS:PT5A400. With a mechanical endurance of 30 million cycles and an electrical endurance of 100,000 cycles at rated load, it provides dependable performance in control cabinets and automation systems. The operating temperature range of -40 to +70 °C allows use in demanding environments.

Full specifications

• Product type: Plug-in Relay
• Series: SIRIUS LZX
• Number of contacts: 5 changeover (5 CO / 5PDT)
• Coil voltage: 24V DC
• Rated current (contacts): 6 A
• Switching voltage (max): 250 V AC/DC
• Contact material: Silver Nickel (AgNi)
• Coil power consumption: approx. 0.9 W
• Electrical endurance: 100,000 switching cycles (at rated load)
• Mechanical endurance: 30,000,000 switching cycles
• Operating temperature range: -40 to +70 °C
• Protection class: IP40
• Mounting type: Plug-in (for relay socket)
• Dielectric strength (coil/contact): 2.5 kV AC
• Compatible socket series: SIRIUS LZS (e.g., LZS:PT5A400)

Final note

For reliable switching in industrial applications, the Siemens LZX:PT580024 offers a robust combination of contact configuration, coil efficiency, and durability.
