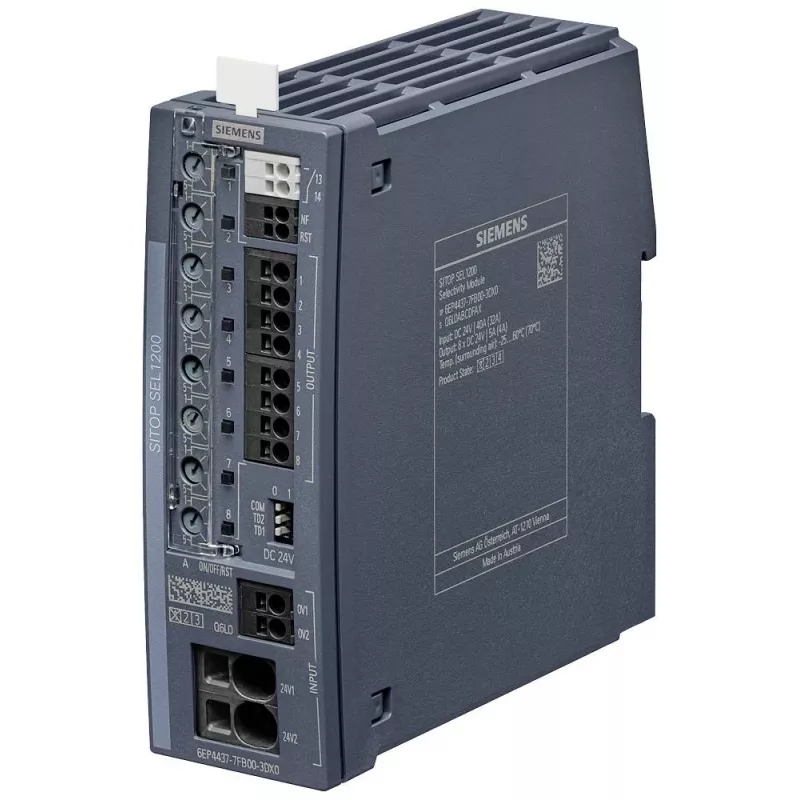

Siemens SITOP SEL1200 Módulo de selectividad 24 V DC 4 canales 40 A 6EP44377FB003DX0

The SITOP SEL1200 selectivity module provides selective fault clearance for 24 V DC load circuits, ensuring reliable operation of industrial control systems. It features four independently adjustable output channels, each capable of delivering 0.5 A to 10 A, with a total output current of up to 40 A. Channel-selective overload and short-circuit protection prevent a fault on one channel from affecting others, while LED status indicators and a potential-free group alarm contact enable quick diagnostics. Designed for DIN rail mounting, the module operates efficiently with >97% efficiency across a wide temperature range of -25 to +70 °C.

Advantages

Channel-selective protection increases system availability by isolating faults to individual circuits. The adjustable output current per channel allows precise adaptation to connected loads, reducing nuisance tripping. High efficiency minimizes heat generation, and the compact DIN rail housing saves panel space.

Suitable for

• 24 V DC industrial control circuits requiring selective protection
• Machinery and automation systems with multiple 24 V loads
• Applications where individual circuit monitoring and alarm signaling are needed

Key specifications

• Input voltage: 24 V DC
• Output voltage: 24 V DC
• Number of outputs: 4 channels
• Output current per channel: 0.5 A to 10 A (adjustable)
• Total output current: max. 40 A
• Protection: overload and short-circuit, channel-selective
• Status indication: LED per channel
• Alarm output: potential-free contact (group alarm)
• Mounting: DIN rail
• Operating temperature: -25 to +70 °C
• Degree of protection: IP20
• Connections: screw terminals
• Efficiency: >97%

Recommendations

Ideal for use with SITOP power supplies to distribute and protect 24 V DC power in industrial environments. Verify that the total load current does not exceed 40 A and that each channel's setting matches the connected load for optimal protection.
