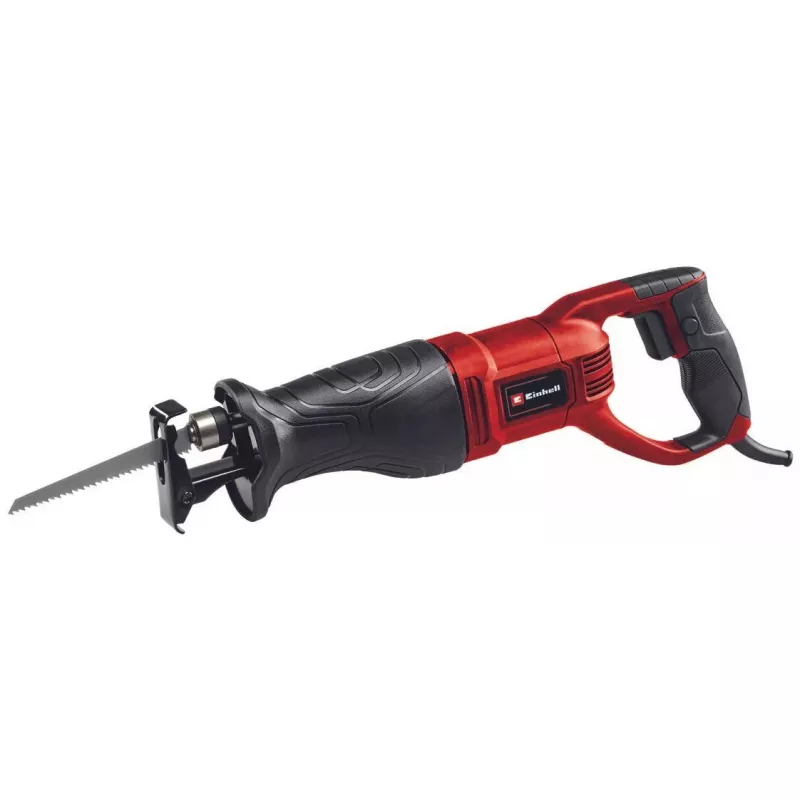

Sierra de calar Einhell TC-AP 690 E

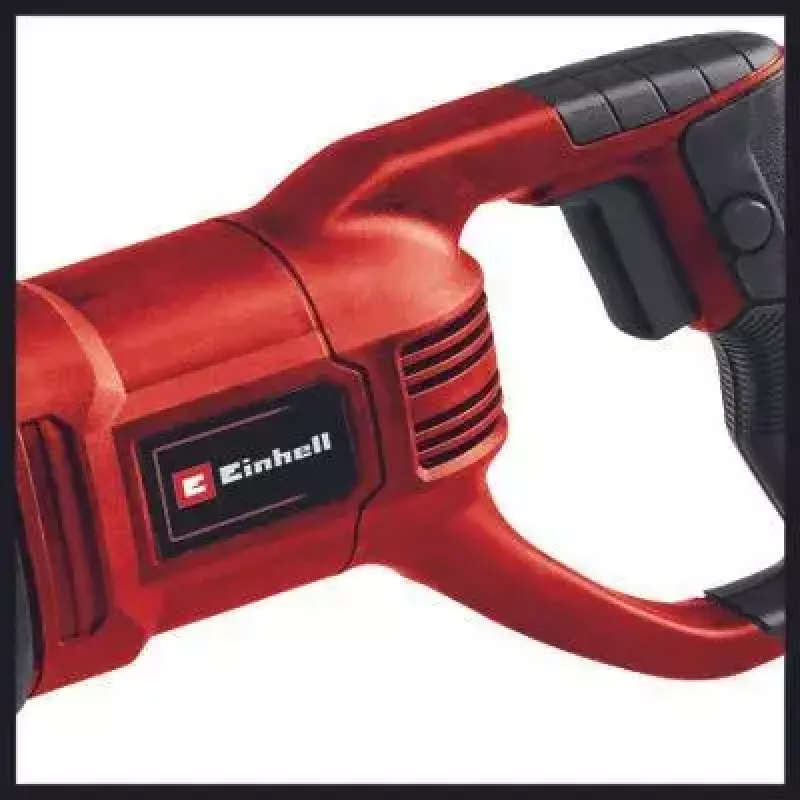

The Einhell TC-AP 690 E jigsaw is a 690 W universal saw designed for material-appropriate work in the garden, workshop and garage. It cuts wood up to 115 mm and steel up to 10 mm, and its lightweight 2.2 kg body and slim ergonomic design with a large softgrip make it comfortable to handle. The tool includes an adjustable saw shoe and is supplied with a wood-cutting blade.

Advantages

The 690 W motor delivers sufficient power for demanding DIY and repair tasks while the 20 mm stroke height and 2,800 rpm no-load speed ensure efficient cutting. The adjustable saw shoe allows the blade to be set for the maximum cutting depth of 115 mm. Safety features include a switch-on lock to prevent accidental starts, and the blade can be changed quickly without tools. The saw is supplied ready to use with a blade for wood.

Suitable for

• Cutting timber and thick branches
• Flush cuts against walls and worktops
• Cutting plastic and non-ferrous materials
• Light steel cutting (up to 10 mm)

Key specifications

• Brand: EINHELL
• Model: TC-AP 690 E (MPN 4326161, EAN 4006825661170)
• Power: 690 W
• Cutting depth (wood): 115 mm
• Cutting depth (steel): 10 mm
• Stroke height: 20 mm
• No-load speed: 2,800 rpm
• Weight: 2.2 kg
• Blade thickness range: 0.8–1.5 mm

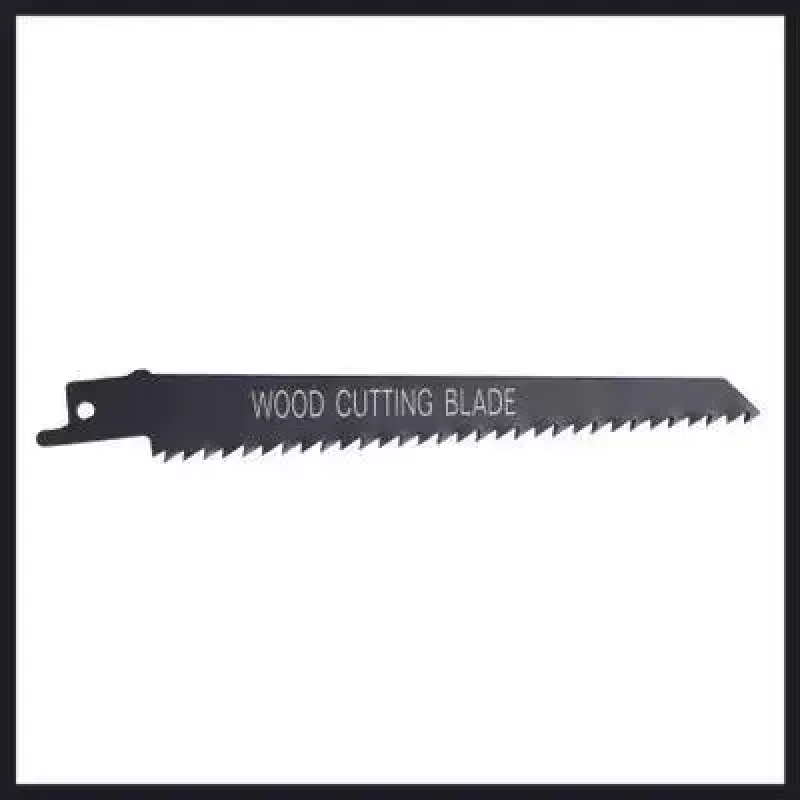

• Delivery includes: wood saw blade

How to use

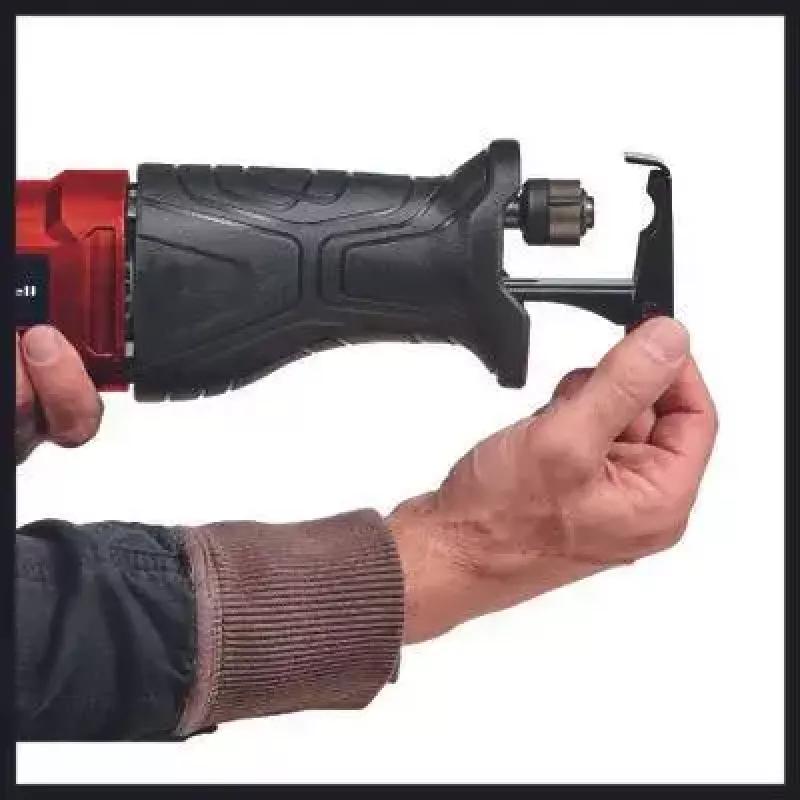

Secure the workpiece before cutting and select a blade suitable for the material and desired cut. Use the supplied Allen key to adjust the saw shoe so the blade reaches the required cutting depth. Switch on the saw and allow it to reach full speed before beginning the cut; guide the saw steadily along the cut line without forcing it. For blade replacement, unlock the quick-release mechanism and change the blade according to the direction markings, then ensure the blade is securely seated before use.

Recommendations

Wear appropriate personal protective equipment (safety glasses, hearing protection and gloves) and keep hands clear of the blade. For metal cutting, use the correct metal blade and reduce feed pressure to avoid overheating. Store the saw in a dry place and remove the blade for long-term storage.
