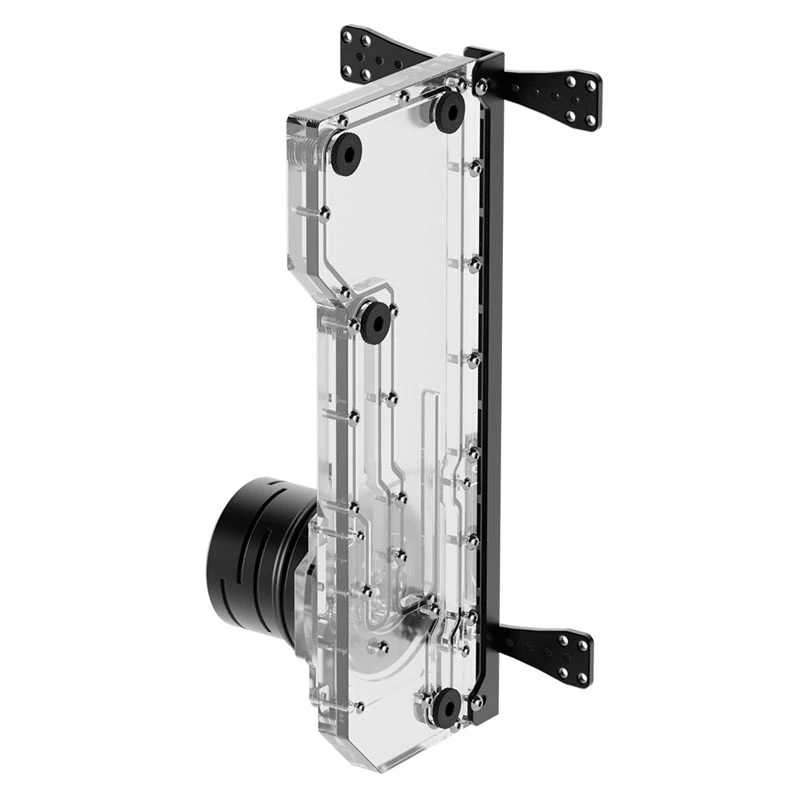

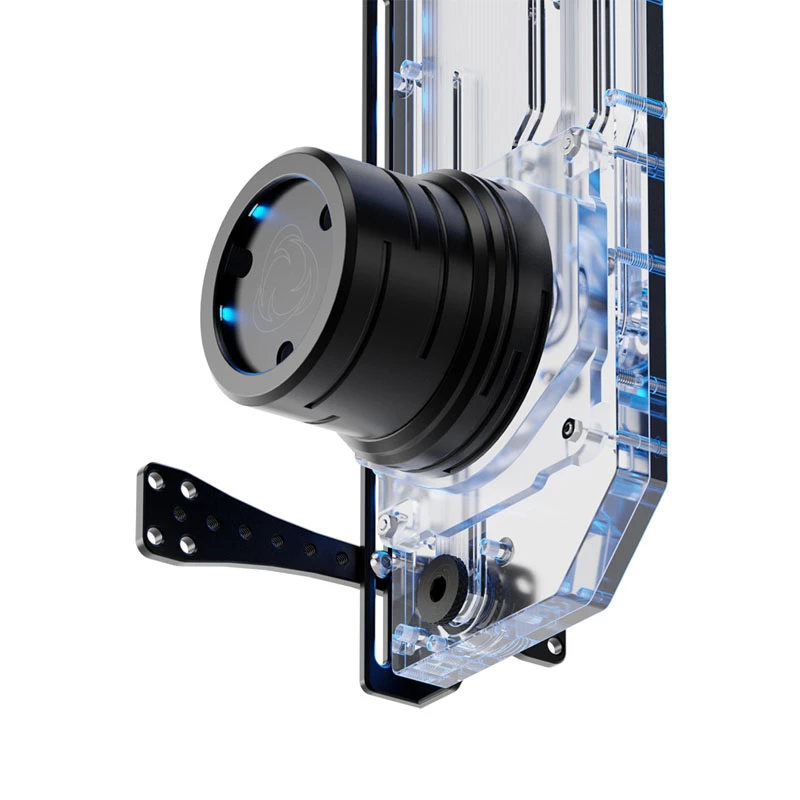

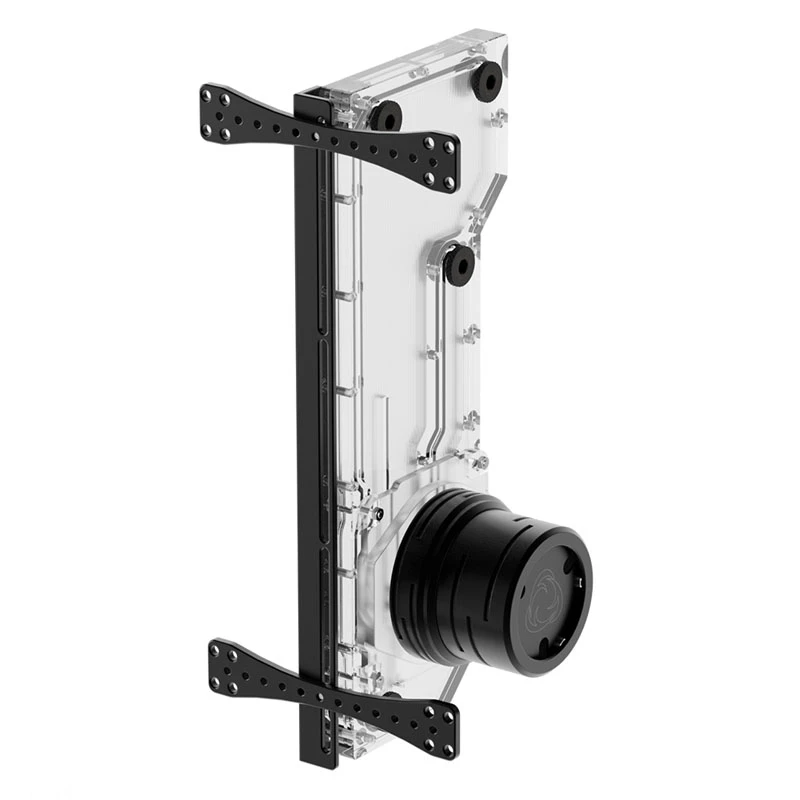

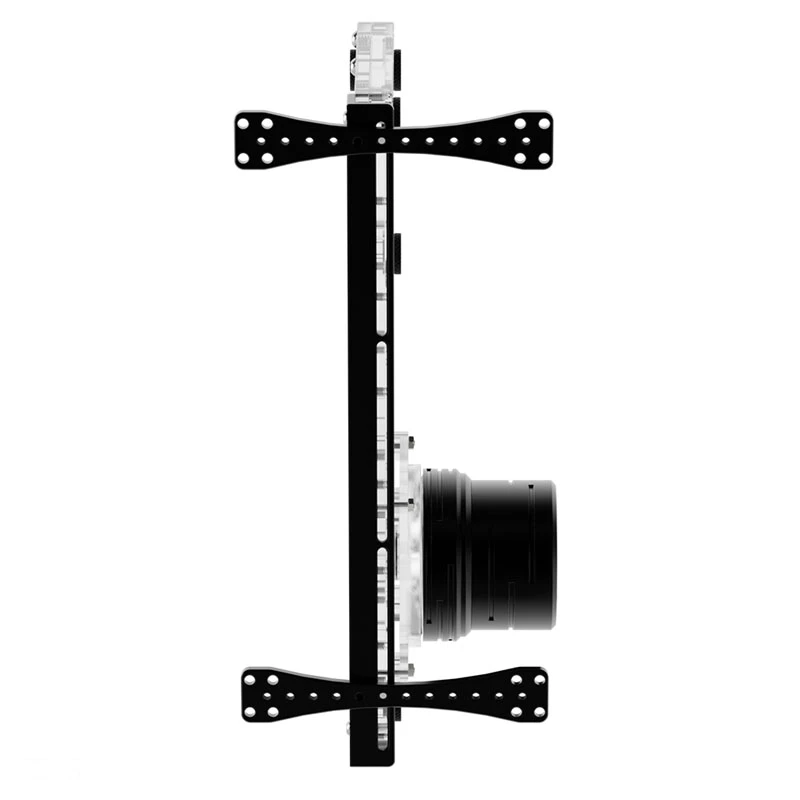

Singularity Resonance 2.0 Single D5 Distro Plate — placa de distribución con depósito de bomba única para refrigeración líquida personalizada

The Singularity Resonance 2.0 Single D5 Distro Plate is a distribution plate designed for custom PC water-cooling loops that integrates a single D5-format pump location with a reservoir interface. It provides organised coolant routing and dedicated mounting points for fittings and tubing, enabling a compact and modular pump-reservoir assembly. The distro plate simplifies loop layout, reduces external tubing runs, and is intended for builders who need a clean, space-efficient solution for high-performance cooling systems.

Advantages

This distro plate consolidates pump and reservoir mounting into a single component, reducing the number of separate parts and simplifying installation. By integrating a D5-format pump location, the design supports widely used pump form factors and compatible fittings. The organised internal channels and clearly positioned ports make loop routing cleaner and easier to maintain, while the compact footprint helps save space inside the case and improves overall loop tidiness.

Suitable for

• Custom PC water-cooling builds using a single D5-format pump
• Compact or mid-tower cases where space-efficient pump-reservoir integration is required
• Systems where simplified tubing runs and easier maintenance are priorities
• High-performance desktop rigs that use dedicated distro plates for cleaner loop layouts

Key specifications

• Form factor: single pump reservoir distribution plate compatible with D5-format pumps
• Material: rigid distribution plate construction suitable for coolant flow management
• Ports: multiple fittings locations for inlet, outlet and loop routing (thread standards depend on fittings used)
• Mounting: dedicated mounting points for pump and reservoir integration to secure assembly inside the case
• Compatibility: intended for custom water-cooling loops and common D5 pump form factors

How to use

Mount the distro plate in the chosen location inside the case where it provides the best routing for your loop. Secure the D5-format pump to the designated pump mounting area according to the pump manufacturer’s mounting instructions. Attach the reservoir interface and install fittings into the threaded ports as required for your loop. Connect tubing between the distro plate ports and other loop components (radiator, CPU/GPU blocks, and return lines), ensuring correct flow direction and leak-tight connections. Perform a pressure or leak test with coolant to verify seals before powering the system.

Recommendations

Use fittings and tubing compatible with D5-format pump connections and ensure all threaded ports are sealed with appropriate washers or thread tape where applicable. Plan hose routing to minimise sharp bends and ensure adequate clearance for other components. Follow standard leak-testing procedures and allow time to check for slow leaks after initial fill. Consider using corrosion-inhibiting coolant and periodic maintenance to maintain optimal performance.
