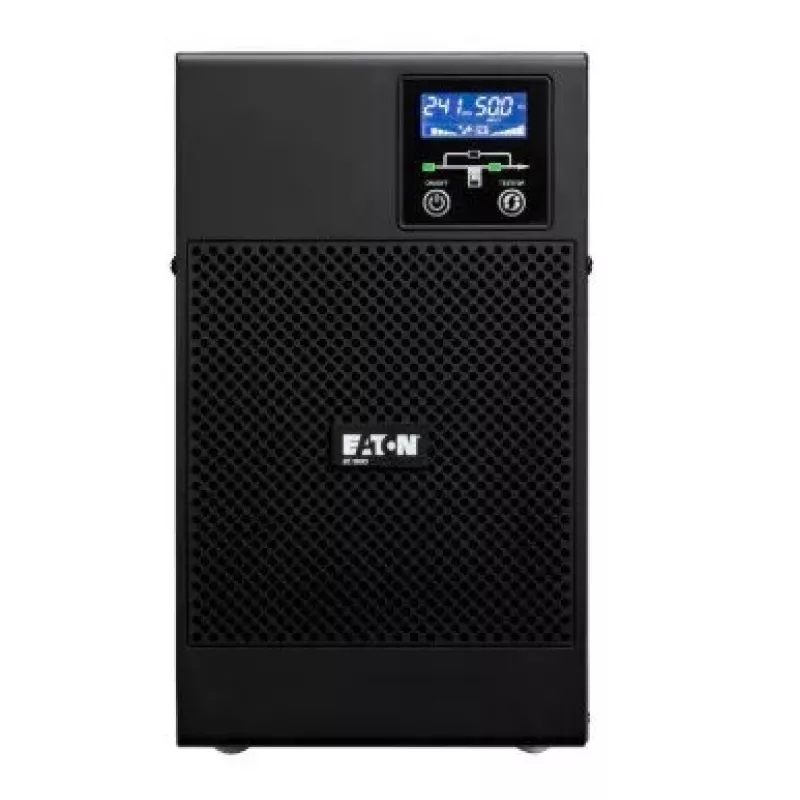

Sistema de alimentación ininterrumpida Eaton 9E

The Eaton 9E Uninterruptible Power Supply is a 1 kVA double-conversion UPS that delivers 800 W of output power and provides dependable voltage and frequency regulation. It includes four IEC 320 AC outlets and offers backup runtimes of approximately 4 minutes at full load and 12 minutes at half load. Certified to IEC/EN 62040-2 and CE, the Eaton 9E is designed to protect critical equipment by continuously monitoring incoming power and supplying clean, stable output with a 0.8 power factor.

Advantages

Double-conversion topology ensures continuous online voltage and frequency regulation for sensitive equipment. The 0.8 power factor enables the Eaton 9E to deliver usable output power efficiently, supporting more servers or devices compared with some similarly rated UPS models. Compact rack/tower-friendly design with four IEC 320 outlets simplifies connection of multiple devices, while IEC/EN 62040-2 and CE certification confirm compliance with relevant safety and performance standards.

Suitable for

• Small server rooms and network closets
• Workstations and critical desktop systems
• Network equipment: switches, routers and firewalls
• Point-of-sale terminals and small IT cabinets

Key specifications

• Output power: 800 W
• Output power capacity: 1 kVA

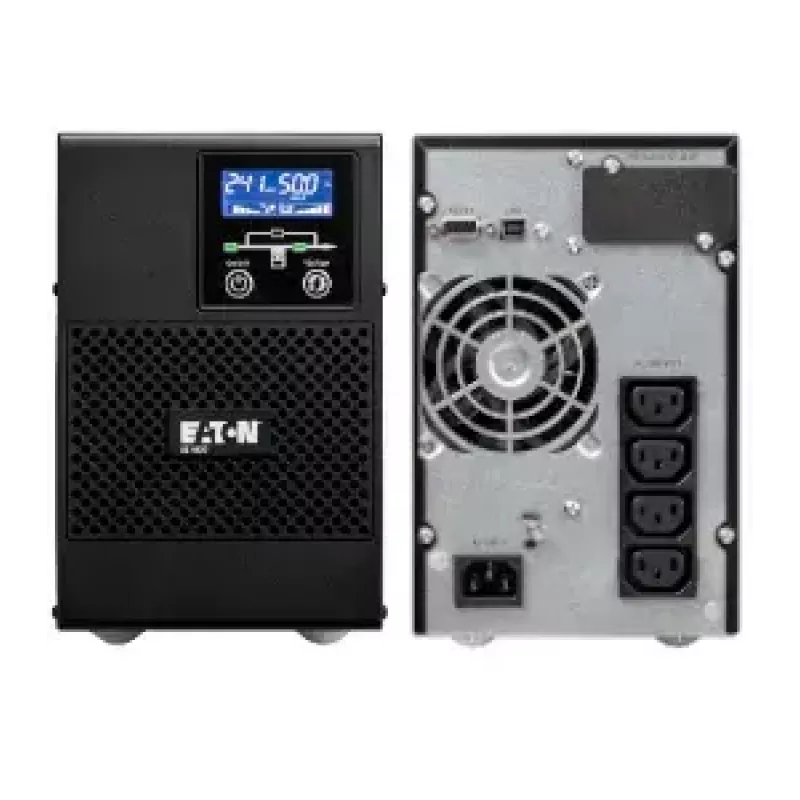

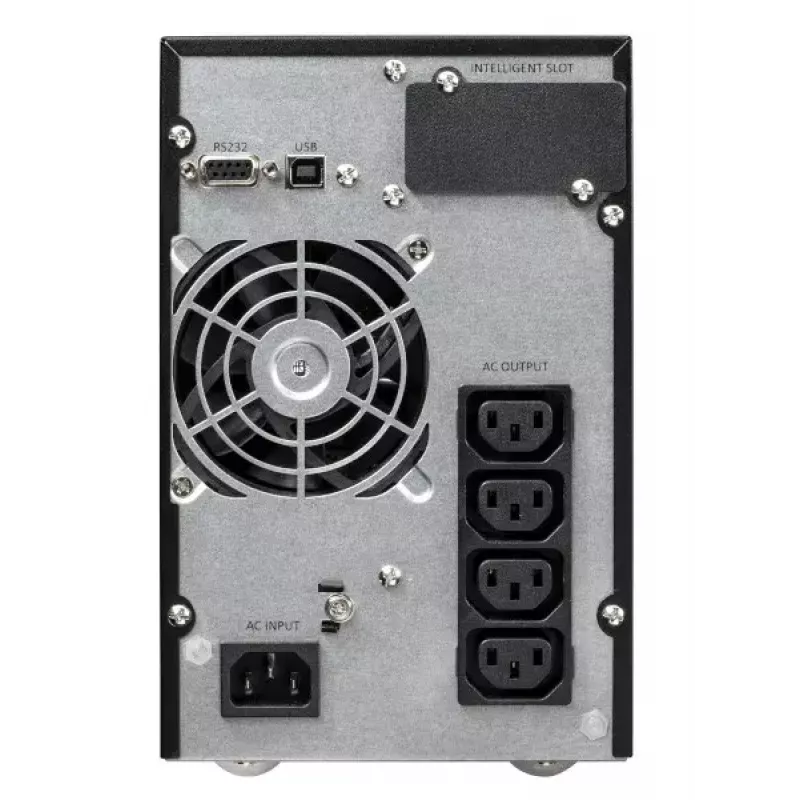

• AC outlets quantity: 4 IEC 320 outlets
• Backup time: ~4 minutes at full load, ~12 minutes at half load
• Topology: Double-conversion (online)
• Certifications: IEC/EN 62040-2, CE
• Weight: 9.5 kg
• Brand / MPN / EAN: EATON / 9E1000I / 786689166564

How to use

Install the Eaton 9E on a stable surface or in a compatible rack following the manufacturer’s mounting instructions. Connect critical devices to the four IEC 320 outlets, and plug the UPS into a grounded mains outlet. Configure any available management or alarm settings according to your network or system requirements. Regularly test the UPS by performing controlled shutdowns and verify the reported runtime under expected load conditions.

Recommendations

For reliable backup performance, size the UPS to keep typical loads below full capacity—aim for around 50–80% of the 800 W rating for longer runtime and reduced battery stress. Perform periodic battery checks and replace batteries according to Eaton’s service schedule or when runtime decreases noticeably.
