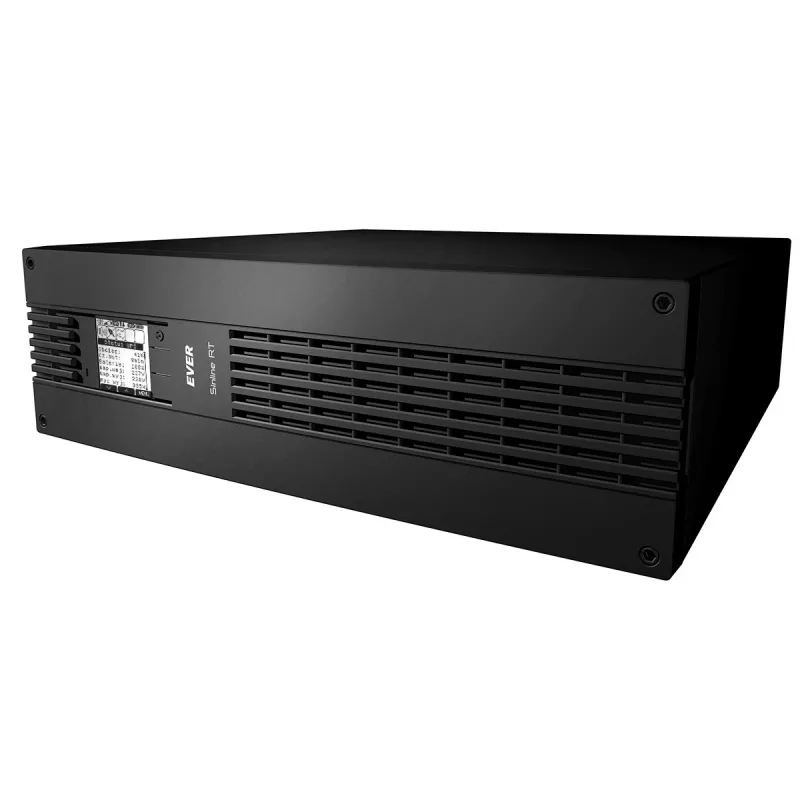

Sistema de alimentación ininterrumpida Ever SINLINE RT 1600

EVER SINLINE RT 1600 is a line-interactive UPS with 1.6 kVA (1250 W) output capacity in a convertible rack/tower housing. Designed to protect computer servers, small networks, workstations and other sensitive IT and electronic equipment, it provides AVR voltage regulation, a Clear Digital Sinus (CDS) waveform in battery mode and user-replaceable internal battery. The unit includes 8 C13 outlets, a USB 2.0 port, integrated network management support and an extended LCD for real-time status and backup time prediction.

Advantages

The SINLINE RT 1600 combines automatic voltage regulation (AVR) to correct mains variations without using battery power and a Clear Digital Sinus output when running on battery to ensure clean sinusoidal power to connected devices. Thermal-compensated battery charging prolongs battery life and reduces maintenance costs. User-replaceable batteries and a convertible Rack/Tower housing increase flexibility for installation and service. Integrated communication options (HID USB and network management card supporting SNMPv2/HTTP) enable remote monitoring and simple connection without additional software.

Suitable for

• Small and medium server cabinets and rack-mounted equipment
• Workstations and desktop PC protection
• Small office or branch network infrastructure
• Critical electronic devices requiring clean sinusoidal backup

Key specifications

• Output power capacity: 1.6 kVA (1250 W)
• AC outlets: 8 × C13
• Battery: 7 Ah, user-replaceable
• Typical backup time: ~3 minutes at full load
• Ports: USB 2.0 (HID), integrated network management (SNMPv2/HTTP)

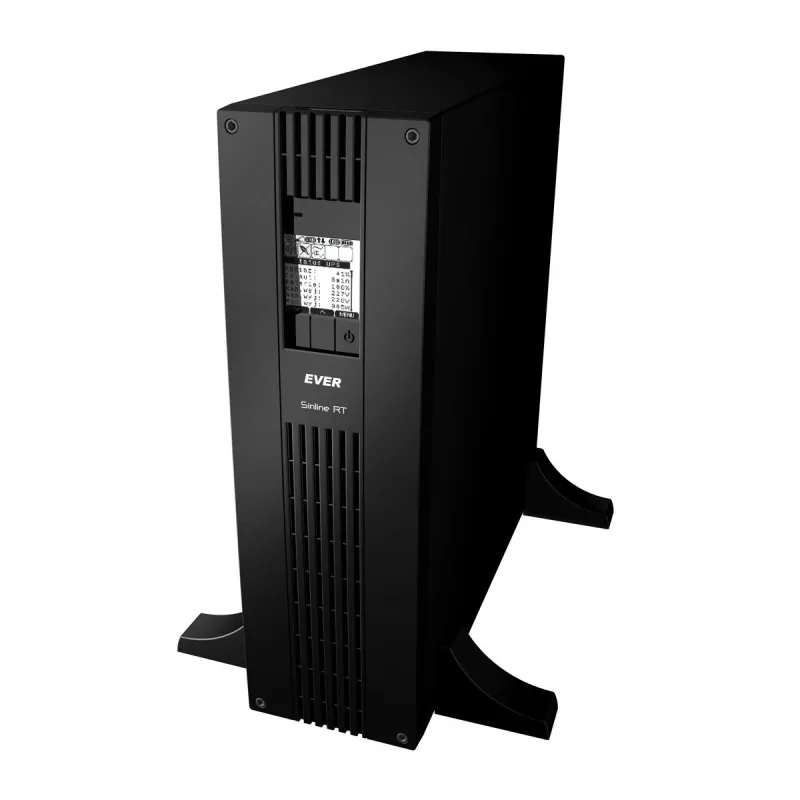

• Form factor: Convertible Rack/Tower, active cooling
• Weight: 22 kg; Colour: Black

How to use

Install the UPS in rack or tower orientation according to available space and secure it mechanically if mounted in a rack. Connect critical equipment to the C13 outlets and attach the UPS to mains power to allow battery charging. Use the LCD to review operational parameters and to read the predicted autonomous runtime. For communication and graceful shutdowns, connect the USB port to a host or install the network management card into the provided slot and configure SNMP/HTTP access as required. Replace the internal battery following the user-replaceable battery instructions when the unit indicates battery degradation.

Recommendations

For reliable protection, connect only essential devices to the UPS to prolong backup time; maintain regular battery checks and ensure adequate ventilation around the unit. Use the AVR feature to reduce unnecessary battery cycles and configure monitoring via SNMP or USB for automatic alerts and orderly shutdowns.
