Sistema de alimentación ininterrumpida EVER SINLINE RT XL 3000, 3 kVA (3000 W), Line-Interactive, 1 fase, 9 salidas CA, Rack/Torre

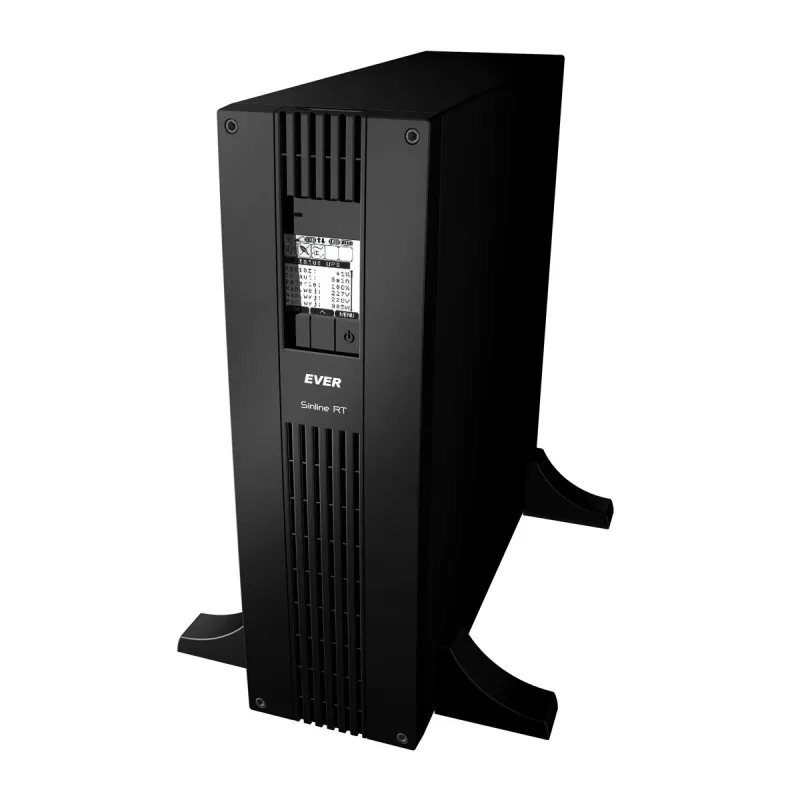

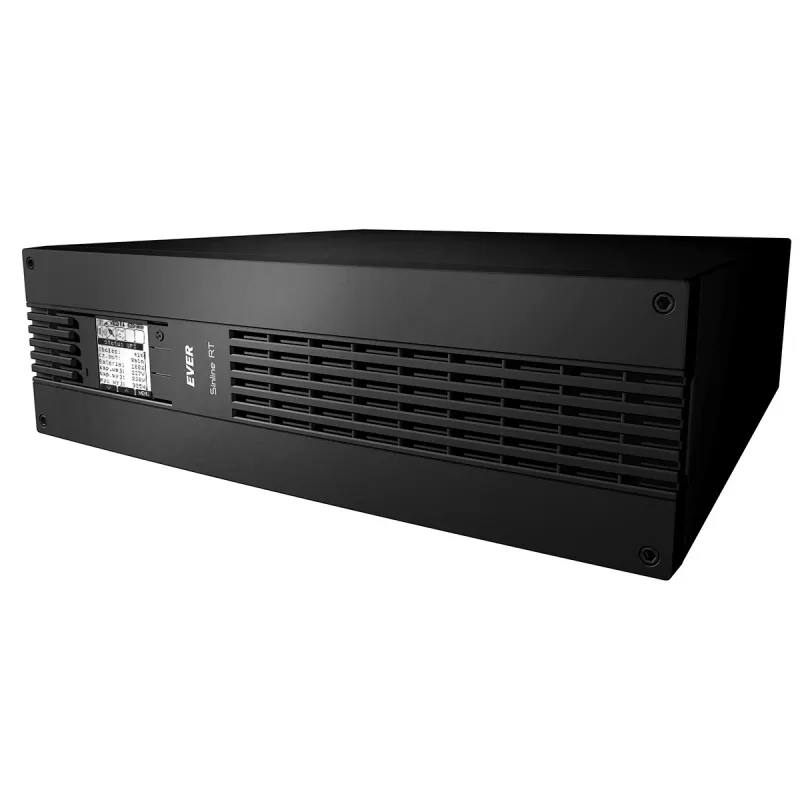

The Ever SINLINE RT XL 3000 is a line-interactive UPS with 3 kVA apparent power and 3000 W active output power, designed for protecting computer servers, small networks, workstations and other IT or electronic equipment. The unit is available in a universal rack/tower housing, supports user-replaceable batteries and can be extended with an optional external battery module. The UPS includes an LCD for system monitoring, active cooling and comes with an input power cable.

Advantages

The UPS provides true sine output in battery mode using a Clear Digital Sinus (CDS) system and features automatic voltage regulation (AVR) to correct mains voltage without using battery power. It offers network integration via an integrated management card (SNMPv2/HTTP), HID USB for simple device connection, LAN (1 Gbit/s) filtering, manageable outputs, and optional interfaces such as RS232/RS485 with MODBUS and an Emergency Power Off (EPO) option. Thermal-compensated battery charging improves battery life and the cold-start function allows starting connected devices from battery power when mains are absent.

Suitable for

• Server rooms and rack-mounted network equipment
• Small office networks and workstations
• Critical electronic and IT devices requiring clean sinusoidal output
• Environments needing remote monitoring and managed power outlets

Key specifications

• Output power: 3000 W
• Output capacity: 3 kVA

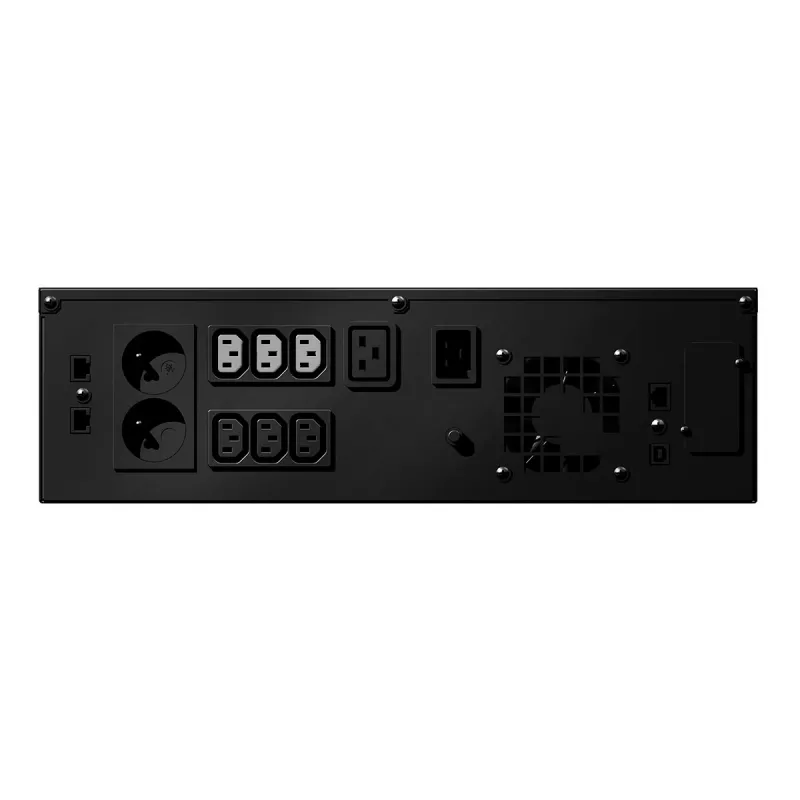

• AC outlets: 9 (combination of C13 and C19)
• Battery: 7 Ah, 12 V (user-replaceable)
• Typical backup time: ~3 minutes at full load
• Interfaces: USB HID, integrated SNMPv2/HTTP network card; optional RS232/RS485 (MODBUS)
• LAN filter: 1 Gbit/s
• Form factor: Rack/Tower convertible; colour: Black
• Weight: 42 kg

How to use

Install the UPS in a rack or place it as a tower on a stable surface and connect the input power cable to the mains. Connect protected equipment to the provided AC outlets (C13/C19). Configure network and communication settings via the LCD or the integrated management card, and connect a computer using the HID USB port for basic monitoring without additional drivers. If required, install optional communication cards (RS232/RS485 or EPO) following the manufacturer instructions. Replace batteries only with compatible 12 V 7 Ah modules and follow safety procedures when performing maintenance.

Recommendations

For optimal battery life, place the UPS in a temperature-stable environment, avoid exposure to high humidity or dust, and enable thermal-compensated charging when available. Test the cold-start and managed output functions after installation and schedule regular battery checks and replacements according to load and manufacturer guidance.
