Sistema de alimentación ininterrumpida PowerWalker VI 1500 SCL FR

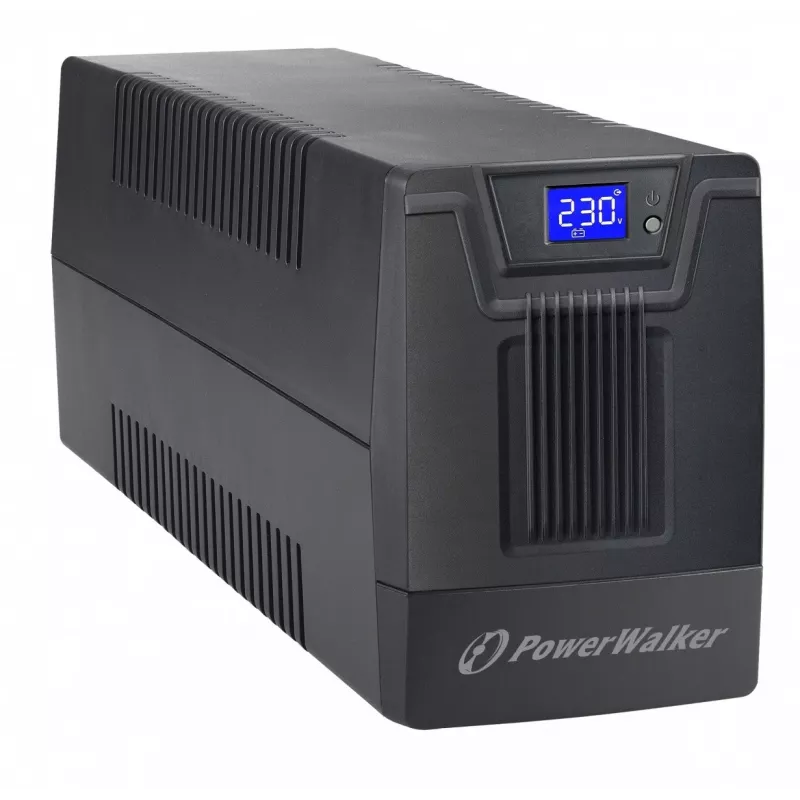

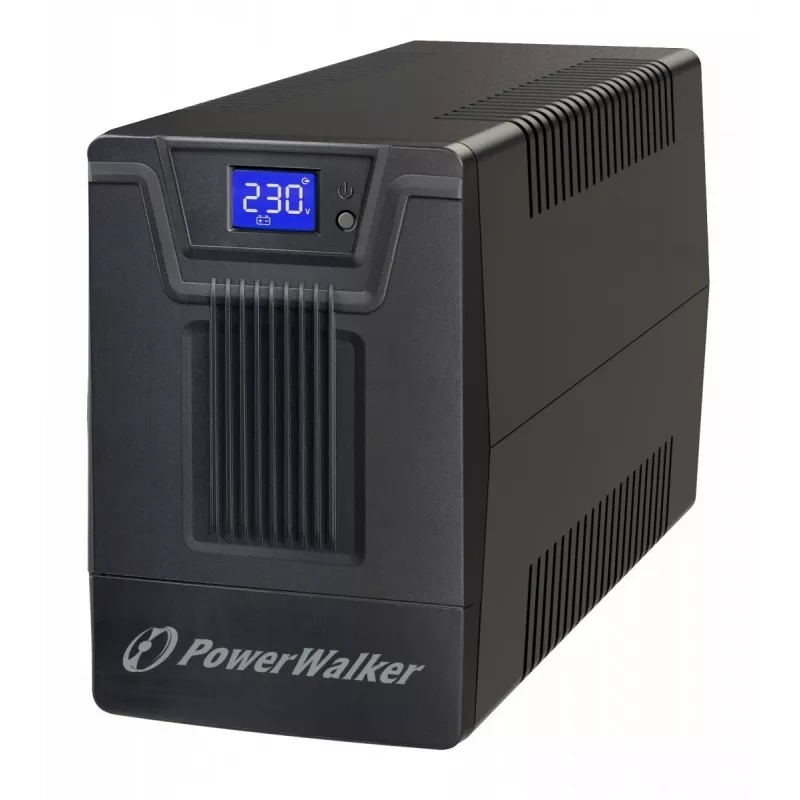

The PowerWalker VI 1500 SCL FR is a Line-Interactive uninterruptible power supply (UPS) designed for home and small office use. With a capacity of 1.5 kVA (900 W output) and four Type E AC outlets, this tower UPS provides basic power protection and a robust 18 Ah, 12 V internal battery. Its compact dimensions (130 × 320 × 182 mm) and black housing make it suitable for placement near PCs, network devices and other sensitive equipment.

Advantages

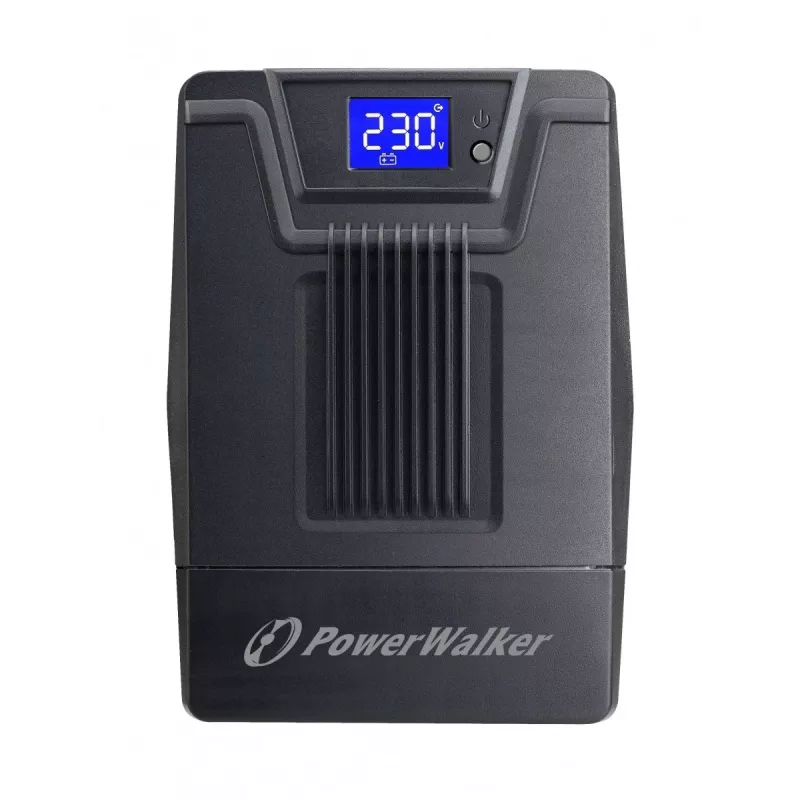

The VI 1500 SCL FR uses a microprocessor-controlled Automatic Voltage Regulator to stabilize incoming voltage by automatically switching to boost or buck modes when needed. It supports cold start operation, allowing the UPS to be turned on directly from battery power, and batteries can be charged while the unit is in standby. A touch panel displays key monitored parameters and a USB HID port enables direct monitoring by the operating system or via PowerWalker ViewPower software. The product is supplied without a software CD or USB cable to reduce cost and environmental impact.

Suitable for

• Desktop PCs and workstations
• Home office equipment (routers, modems, NAS)
• Peripherals and external drives requiring short-term backup

Key specifications

• Output power capacity: 1.5 kVA
• Output power: 900 W

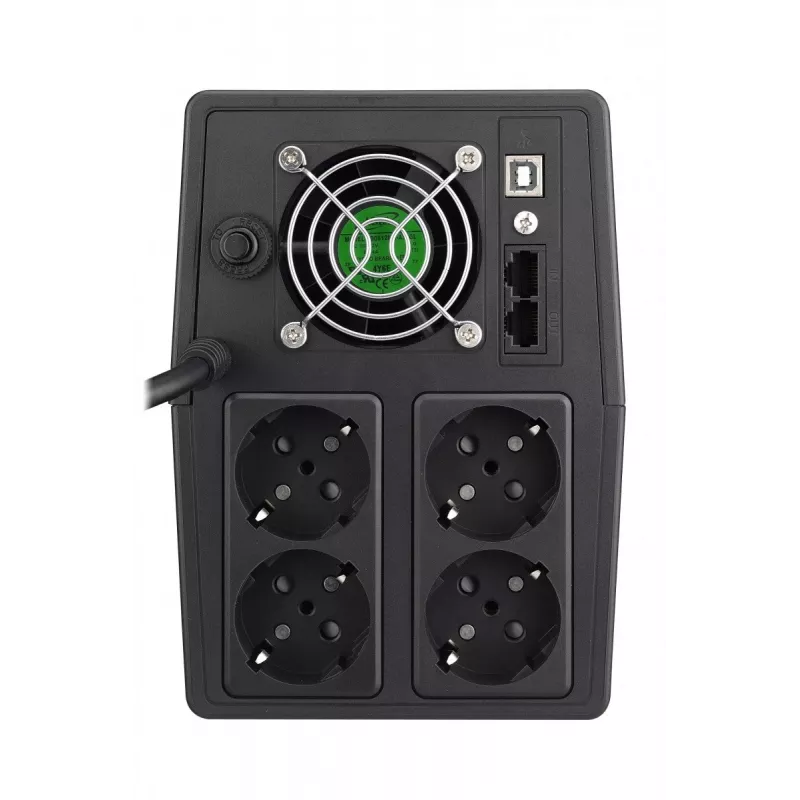

• AC outlets: 4 × Type E (CEE 7/5)
• Battery: 12 V, 18 Ah internal battery
• Form factor: Tower
• Dimensions (W × D × H): 130 × 320 × 182 mm
• Weight: 10.4 kg
• Color: Black

How to use

Place the UPS on a stable, flat surface with adequate ventilation and connect critical devices to the Type E outlets. Plug the UPS into mains to keep the internal battery charged; in case of mains failure the unit will automatically switch to battery-backed output. Use the touch panel to view load and battery status. For extended configuration and monitoring, connect the UPS to a computer via the USB HID port and use the operating system’s native drivers or download PowerWalker ViewPower software from the manufacturer’s website.

Recommendations

For reliable operation, allow the internal battery to complete initial charge before relying on battery backup, perform periodic battery tests, and avoid installing the UPS in excessively hot, dusty, or humid locations. Keep a compatible USB cable on hand if you plan to use the ViewPower software, as it is not included with the unit.
