Sistema de alimentación ininterrumpida SAI Armac R/2000I/PF1 2 kVA 2000 W 8 salidas AC

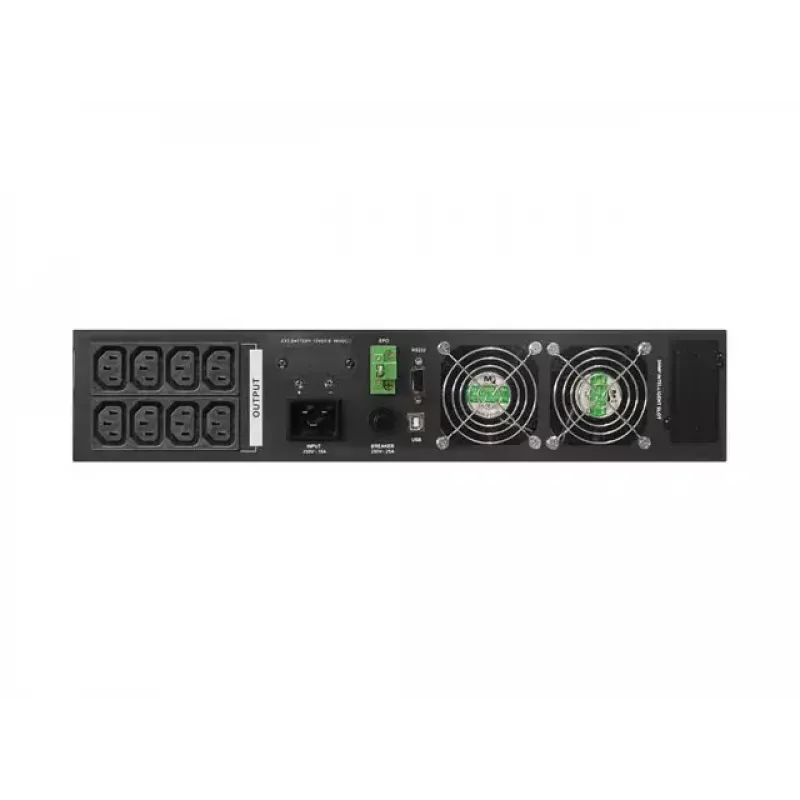

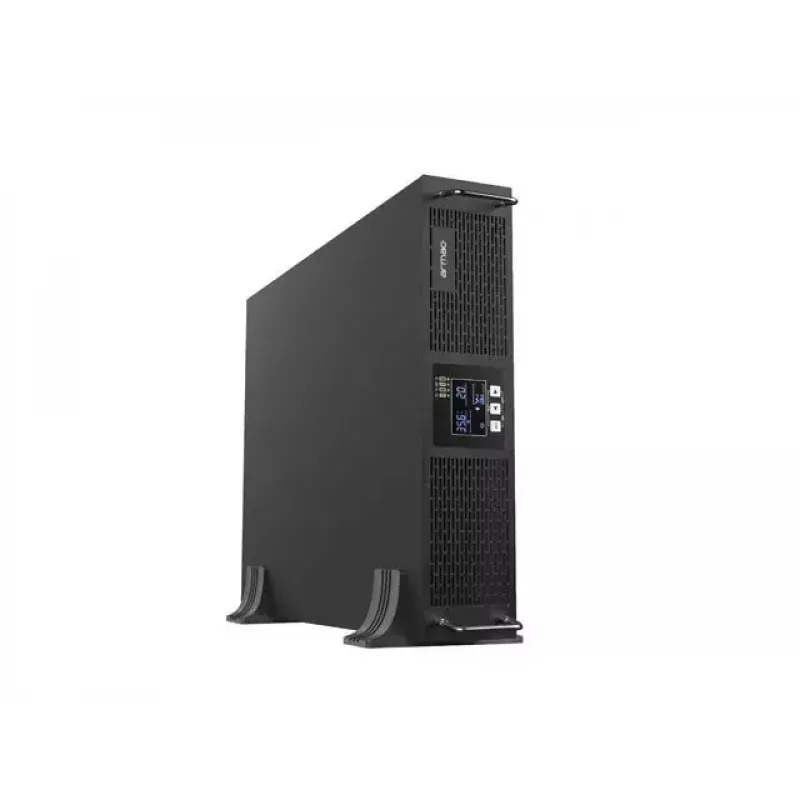

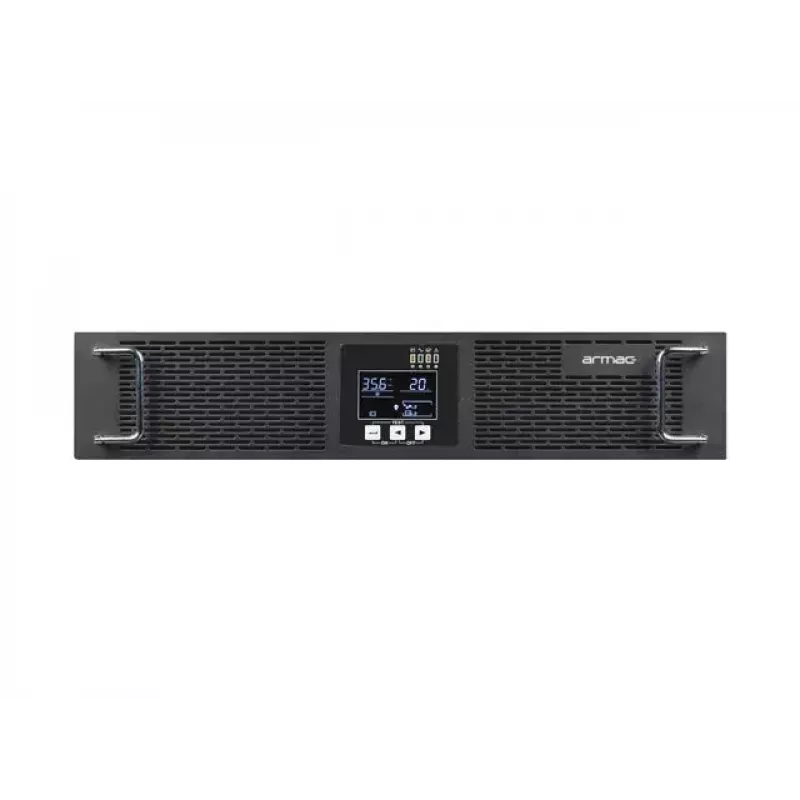

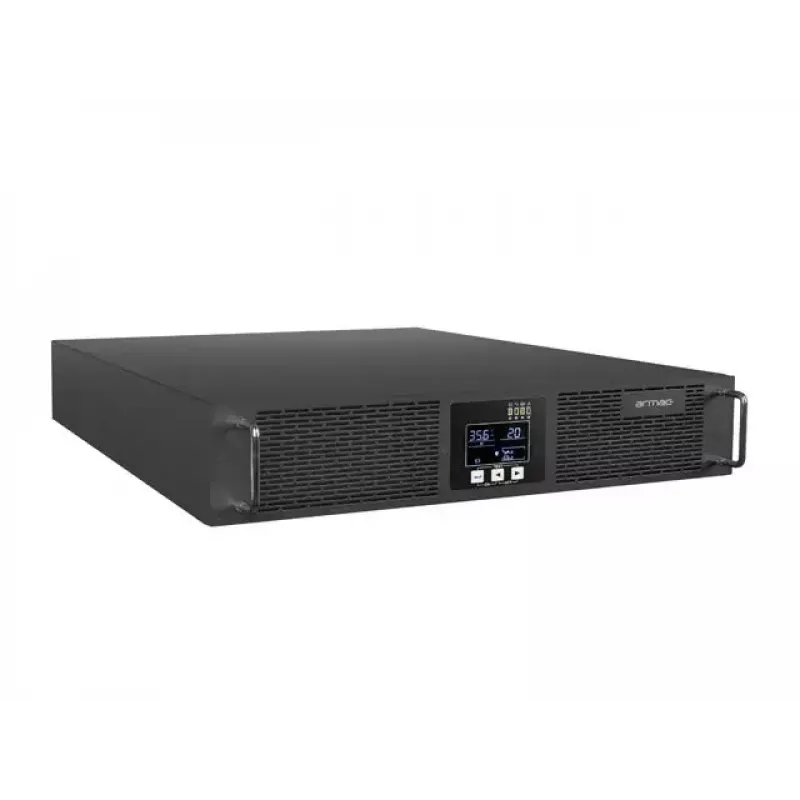

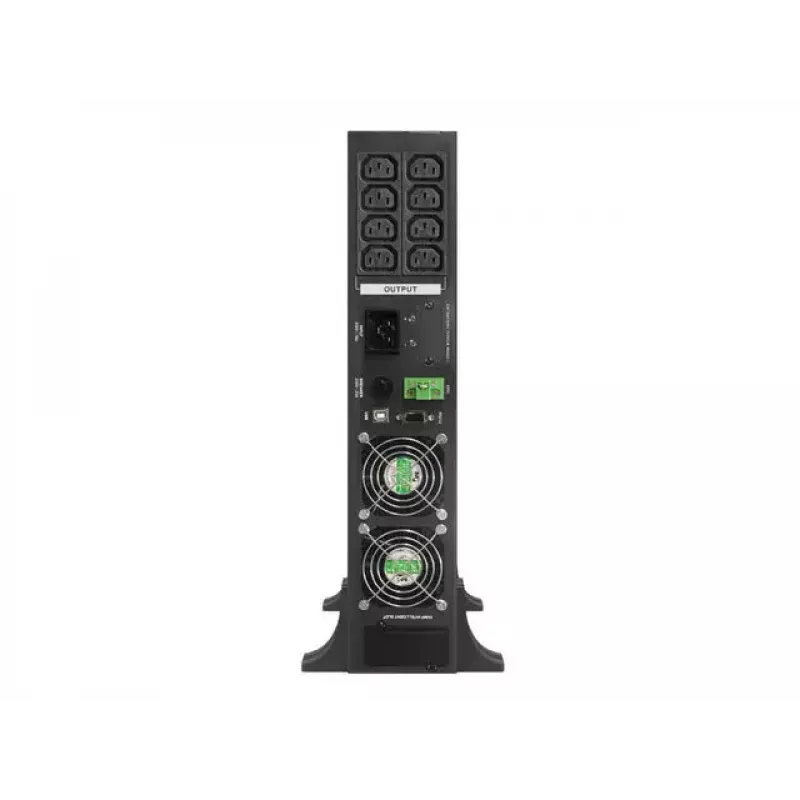

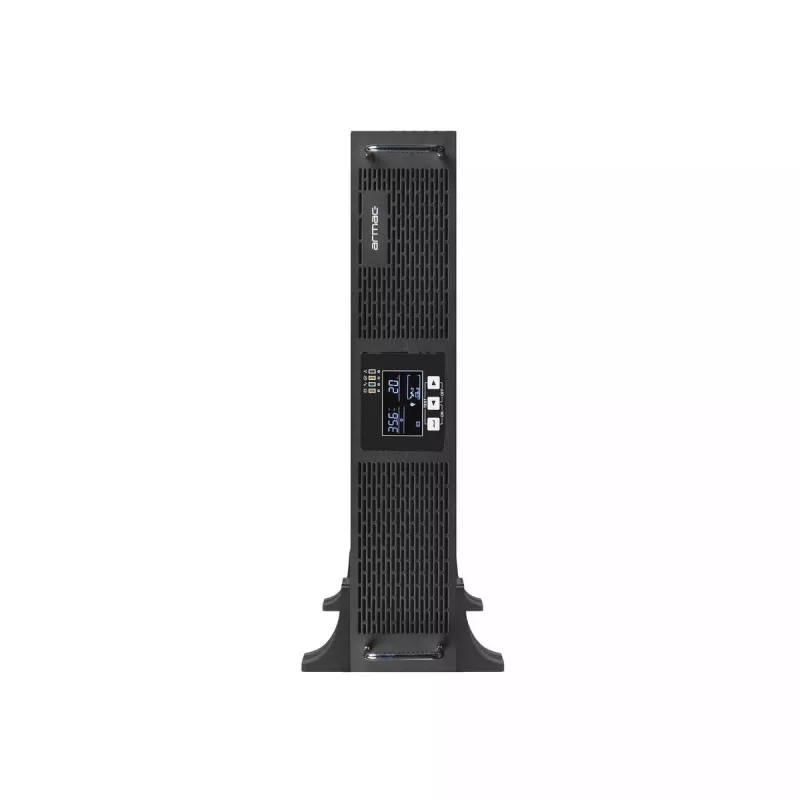

UPS RACK R/2000I/PF1 ONLINE is a rack-mountable on-line UPS designed to keep 19" rack equipment and other devices powered during mains interruptions. With double-conversion topology and a full sine wave output, the unit supplies stable, clean power and supports loads up to 2000 W (2000 VA) thanks to a maintained power factor of 1.0. The UPS includes eight IEC 320 C13 outlets, internal 9 Ah batteries and a socket for connecting dedicated external Battery Pack modules (B/0609/R) to extend runtime.

Advantages

The R/2000I/PF1 delivers zero transfer time between AC and battery modes and automatic battery management including periodic self-test every 60 days. A configurable cut-off voltage reduces deep discharge risk and extends battery life. Built-in processor monitoring, overload protection and automatic restart after mains return ensure reliable operation. The unit supports communication via USB or RS-232 and is compatible with PowerManager II software for monitoring and controlled shutdown. Mounting accessories for 19" rack installation and vertical stands with extension legs are included.

Key specifications

• Topology: On-line double conversion
• Output waveform: Pure sine wave
• Power factor: 1.0
• Rated power: 2000 VA / 2000 W
• Battery type: Internal 9 Ah batteries; external B/0609/R supported
• Output sockets: 8 × IEC 320 C13
• Communications: USB, RS-232; PowerManager II compatible
• Automatic battery self-test: Every 60 days

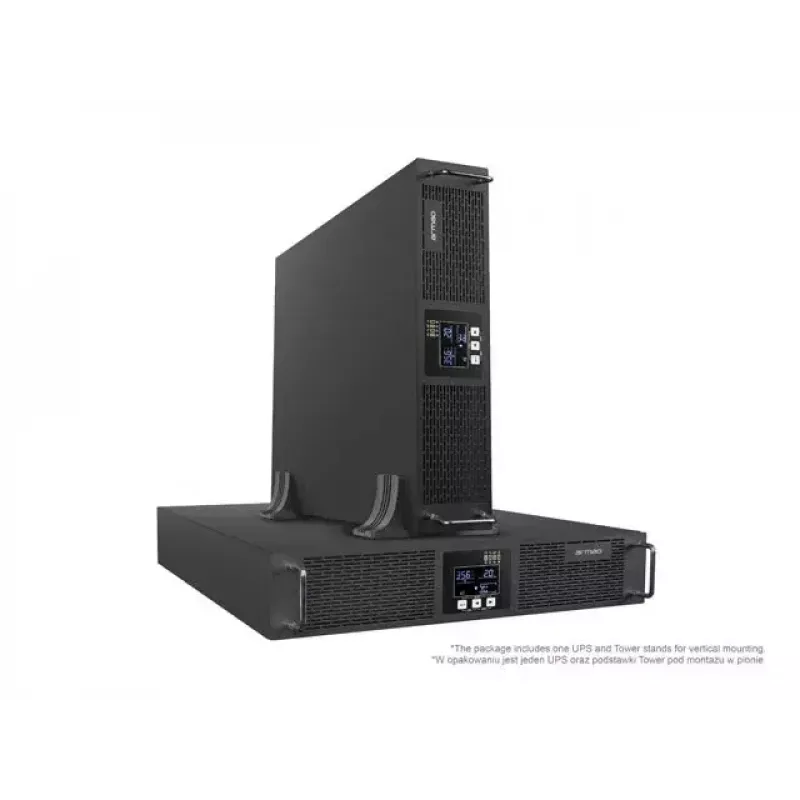

• Mounting: 19" rack ears included; optional R/0019 rail recommended; vertical stands and M6 screws included

How to use

Install the UPS in a 19" rack using the supplied mounting ears or the recommended R/0019 rail for improved stability; alternatively, use the vertical stands for out-of-rack placement. Connect critical equipment to the IEC C13 outlets, verify battery configuration before connecting external Battery Pack modules (ensure total battery voltage matches UPS voltage), and configure cut-off voltage as required via the LCD panel. Connect the UPS to a monitoring computer with USB or RS-232 and install PowerManager II to view status and set shutdown parameters. The UPS charges batteries automatically in standby and will perform periodic self-tests and automatic restarts after mains return.

Recommendations

For extended runtime, add only the manufacturer’s B/0609/R Battery Pack modules and confirm voltage compatibility. Use the R/0019 rail for secure rack mounting when external battery modules are installed, and connect the UPS to monitoring software to receive alerts and schedule maintenance.
