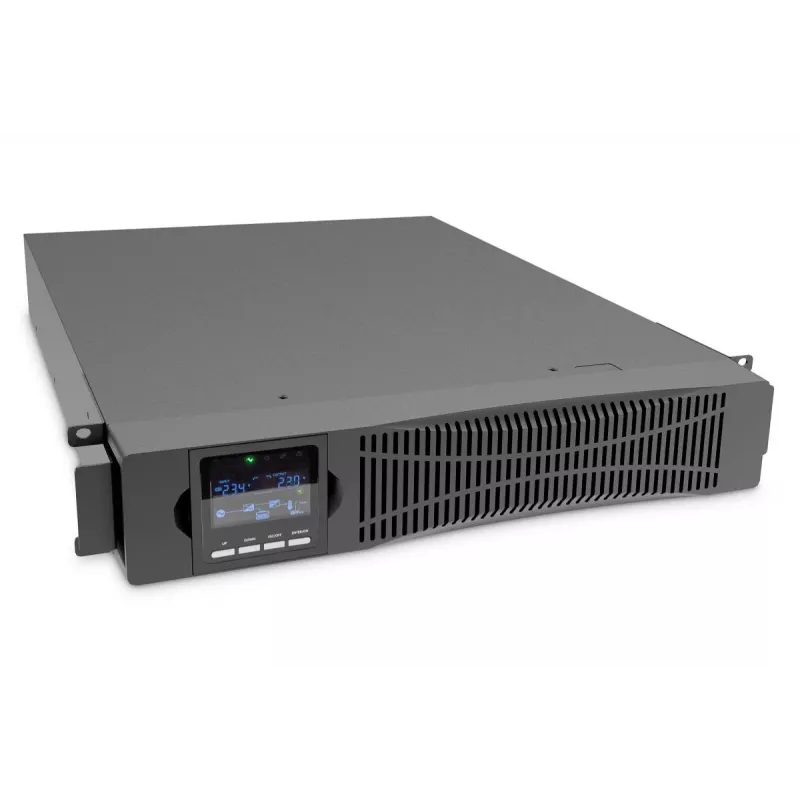

Módulo SAI online DIGITUS 2000VA / 2000W

Módulo SAI online DIGITUS 2000VA / 2000W
Módulo SAI online DIGITUS 2000VA / 2000W
Módulo SAI online DIGITUS 2000VA / 2000W
Módulo SAI online DIGITUS 2000VA / 2000W
Módulo SAI online DIGITUS 2000VA / 2000W
Módulo SAI online DIGITUS 2000VA / 2000W
Módulo SAI online DIGITUS 2000VA / 2000W
Módulo SAI online DIGITUS 2000VA / 2000W
Módulo SAI online DIGITUS 2000VA / 2000W
Módulo SAI online DIGITUS 2000VA / 2000W
494,90 €
PDF
PDF
Stock 2 Código 300091 Modelo DN-170095 Garantía 3 años

Envíos y devoluciones

Entrega estimada miércoles, 2 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardPayPalApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

The OnLine UPS is an ideal backup solution for your demanding power requirements and offers high reliability in various industrial applications.

- High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
- High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.

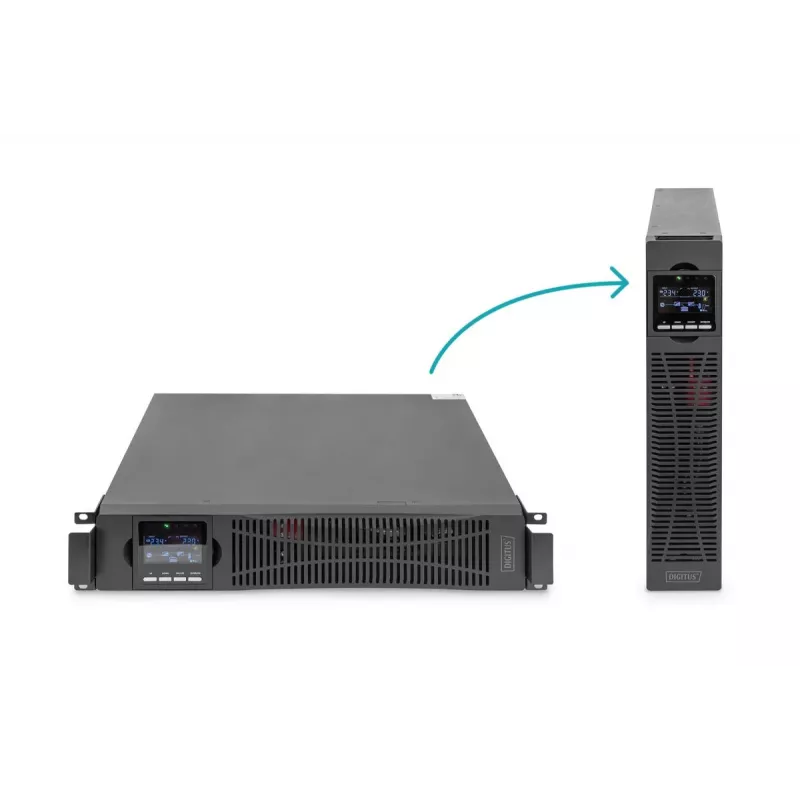

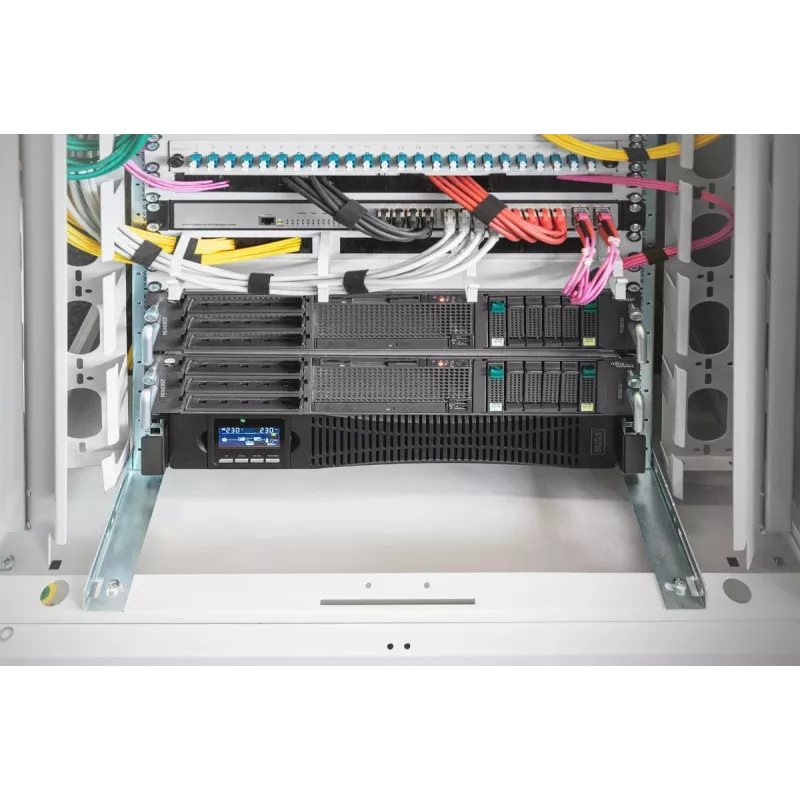

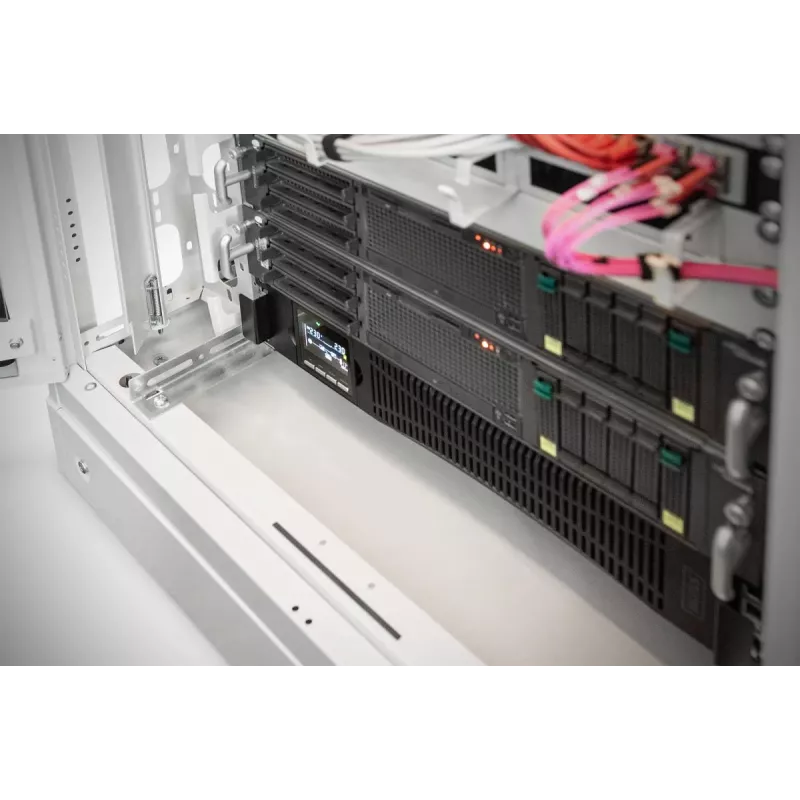

- Compact rack/tower design optimizes the installation space in the rack and enables flexible installation.
- Minimize device downtime with hot-swappable, user-replaceable battery modules that can be replaced during operation.
- External battery modules allow the runtime to be extended.
- High number of outlets (8 x C13) for optimum power distribution to the consumers.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system.
- Automatic battery self-test and fan speed control increase the service life of the components.
- The REPO function (Remote Emergency Power Off) switches the UPS off in the event of an emergency. If an emergency occurs, the REPO switch turns off the rectifier and the inverter and immediately stops the power supply to the load. The UPS stops charging.

The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers first-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and unity power factor, the UPS meets your critical application requirements.

Aspectos destacados
  • Online double conversion system (VFI-SS-111)
  • Input: IEC60320 C20 socket, 208/220/230/240 Vac
  • Output: 8 x IEC60320 C13, max. 10A per socket outlet
  • Nominal system power: 2000 VA / 2000 W, power factor 1.0
  • AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %.
  • Internal battery pack can be replaced during operation.
  • Battery: Valve-protected, non-spillable lead-acid battery
  • Battery quantity: 4 x 12V x 9.0 Ah
  • Charging: 4 hours to 90% capacity after full discharge
  • Network connection: Optional SNMP/Webcard (part number DN-170100) enables the UPS to be monitored remotely.
  • Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
  • Emergency Power-off (EPO) contact for switching off the UPS in an emergency
  • Maximum operating temperature: 0 - 40 °C
  • Storage temperature: -25 - 55 °C
  • Relative humidity: 20 - 90% non-condensing
  • Operating altitude: < 1500 m
  • Product dimensions WxDxH (mm): 440 (19") x 460 x 86.5 (2U)
  • Product weight: 19.5 kg
  • Shipping dimensions WxDxH (mm): 560 x 590 x 200
  • Shipping weight: 23.7 kg
  • Safety standards: IEC/EN62040-1,IEC/EN60950-1
  • EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
  • Optionally available: 19" UPS mounting kit (profile rails), article number DN-170109
  • IP protection class: IP21
  • Heat dissipation: 614 BTU/h
  • Noise level in online mode: approx. 50 dB(A) at a distance of 1 m (may vary slightly depending on load and ambient temperature).

Especificaciones

Especificaciones
Altitud de funcionamiento
0 - 1500 m
Altura
86.5 mm
Altura del embalaje
200 mm
Ancho
440 mm
Ancho del embalaje
555 mm
Cable de alimentación desmontable
Sí
Cables incluidos
RS-232, cable USB
Capacidad de la batería
9 Ah
Capacidad de potencia de salida
1,5 kVA
Código del arancel comercial del Reino Unido
85044085
Color del producto
Negro
Conector de apagado de emergencia (EPO)
Sí
Corriente máxima
10 A
Eficiencia
93%
Eficiencia (modo ECO)
98%
Enchufe
Acoplador C20
Factor de potencia
1
Formato
Rackmount
Humedad relativa de almacenamiento (H-H)
20 - 90%
Humedad relativa de funcionamiento (H-H)
20 - 90%
Kit de montaje en rack
Sí
Manual
Sí
Número de pilas compatibles
4
Número de puertos serie
1
Número de tomas de CA
8 tomas de CA
País de origen
China
Peso
19.5 kg
Peso del embalaje
22.9 kg
Potencia de salida
2000 W
Profundidad
460 mm
Profundidad del embalaje
595 mm
Puerto USB
Sí
Puertos Ethernet LAN (RJ-45)
2
Tamaño (pulgadas)
48.3 cm (19")
Temperatura de almacenamiento (T-T)
-25 - 55 °C
Temperatura de funcionamiento (T-T)
0 - 40 °C
Tensión de funcionamiento de entrada (máx.)
240 V
Tensión de funcionamiento de entrada (mín.)
208 V
Tensión de la batería
12 V
Tiempo de recarga de la batería (90 %)
4 h
Tipo de conector USB
USB tipo B
Tipo de fuente de alimentación
AC
Tipo de interfaz serie
RS-232
Tipo de pantalla
LCD
Tipo de refrigeración
Activo
Tipos de tomas de CA
Acoplador C13
Topología del SAI
Doble conversión (en línea)
Ventilador integrado
Sí
Volumen del embalaje
66705.5 cm³
