Sistema de refrigeración DeLOCK 18285

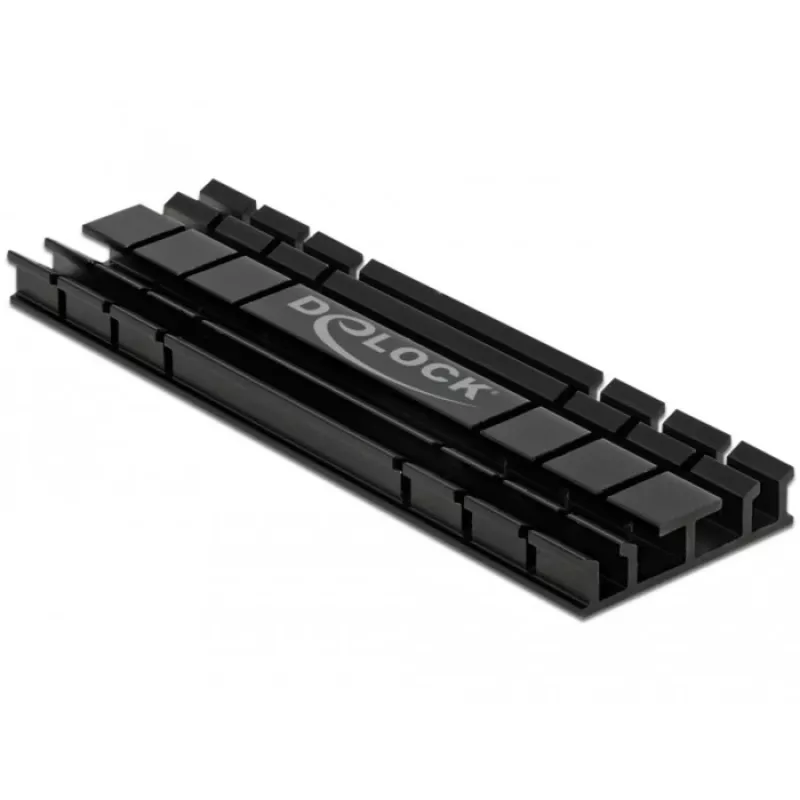

The DeLOCK 18285 cooling system is a compact aluminum heat sink in black finish, designed to dissipate heat from M.2 modules. Measuring 22 mm × 70 mm × 5.2 mm, it fits into tight spaces and helps maintain stable operating temperatures for storage modules when mounted with the included self-adhesive thermal pads.

Advantages

Constructed from durable aluminum for effective thermal conduction and finished in black for a discreet appearance. Its low-profile dimensions allow installation in compact builds, and the supplied self-adhesive thermal pads enable secure attachment to M.2 modules without additional tools.

Suitable for

• Cooling M.2 SSD modules in desktop PCs and small form factor systems
• Improving thermal performance in compact builds with limited space
• Replacing or upgrading an existing low-profile heat sink on M.2 devices

Key specifications

• Manufacturer: DELOCK
• Model number (MPN): 18285
• EAN: 4043619182855
• Material: Aluminum
• Colour: Black
• Dimensions (W × D × H): 22 mm × 70 mm × 5.2 mm

How to use

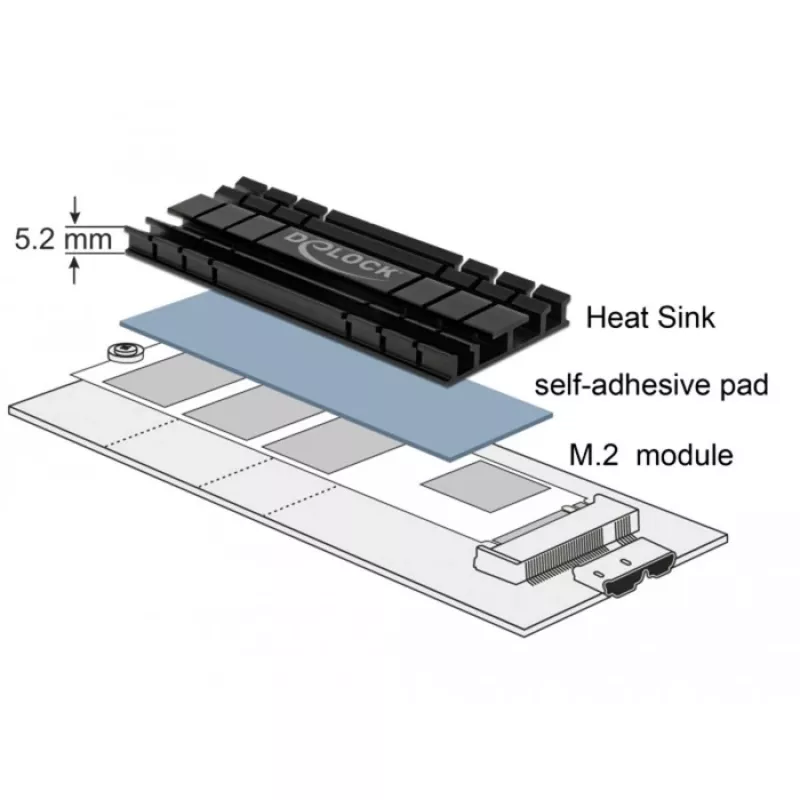

Clean the surface of the M.2 module and surrounding area to remove dust and oils. Peel the protective film from the supplied self-adhesive thermal pad and apply the pad to the contact area of the M.2 module. Align the DeLOCK 18285 heat sink over the module and press firmly to secure the adhesive bond. Reinstall the M.2 module into the system following the device manufacturer's instructions.

Recommendations

Ensure the M.2 module and heat sink make direct contact via the thermal pad and avoid covering adjacent components that require airflow; verify clearance in your case or on your motherboard before installation.
