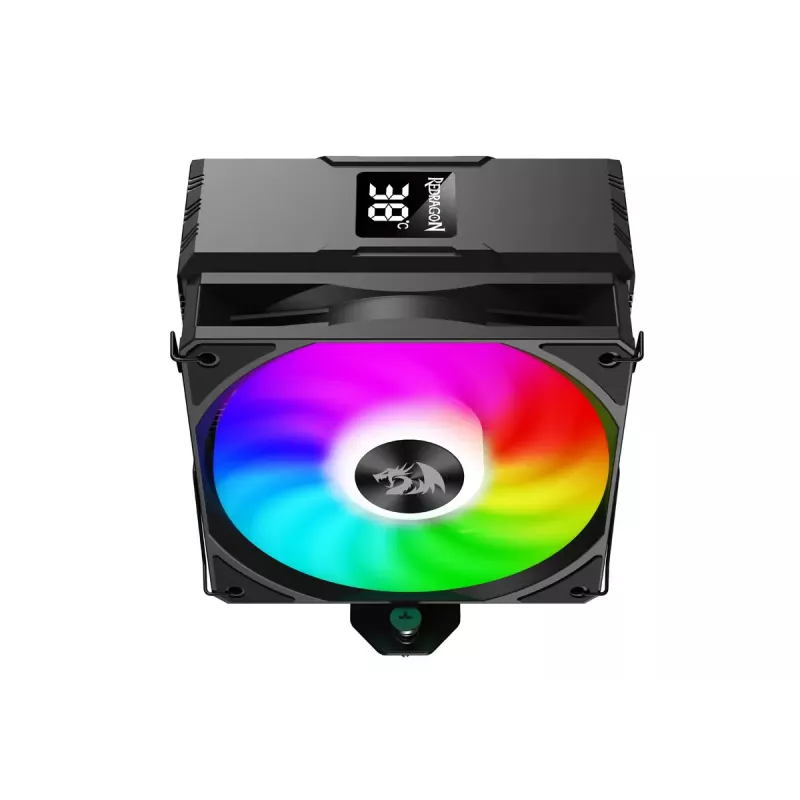

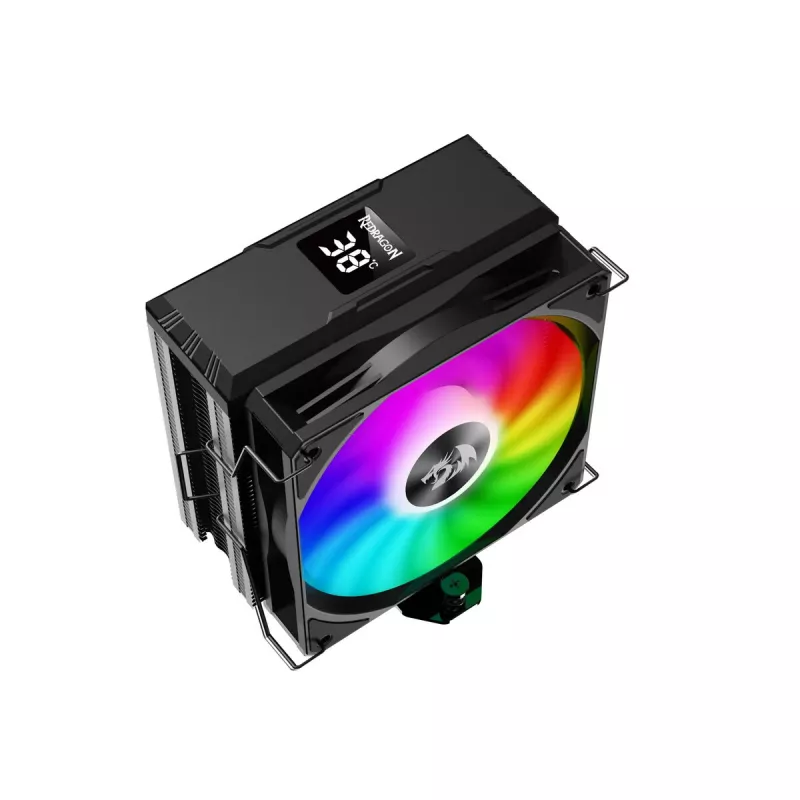

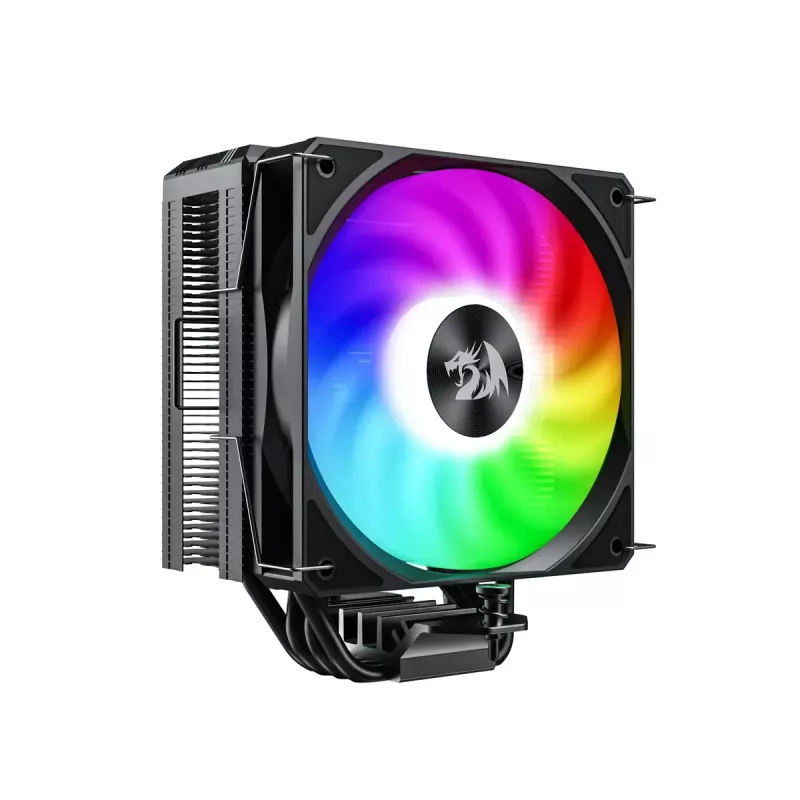

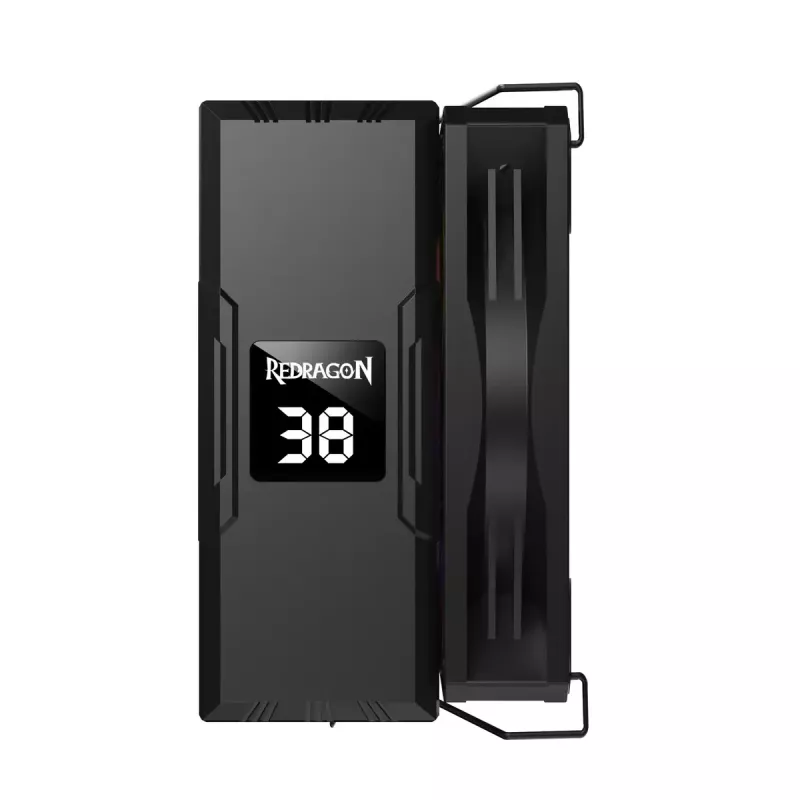

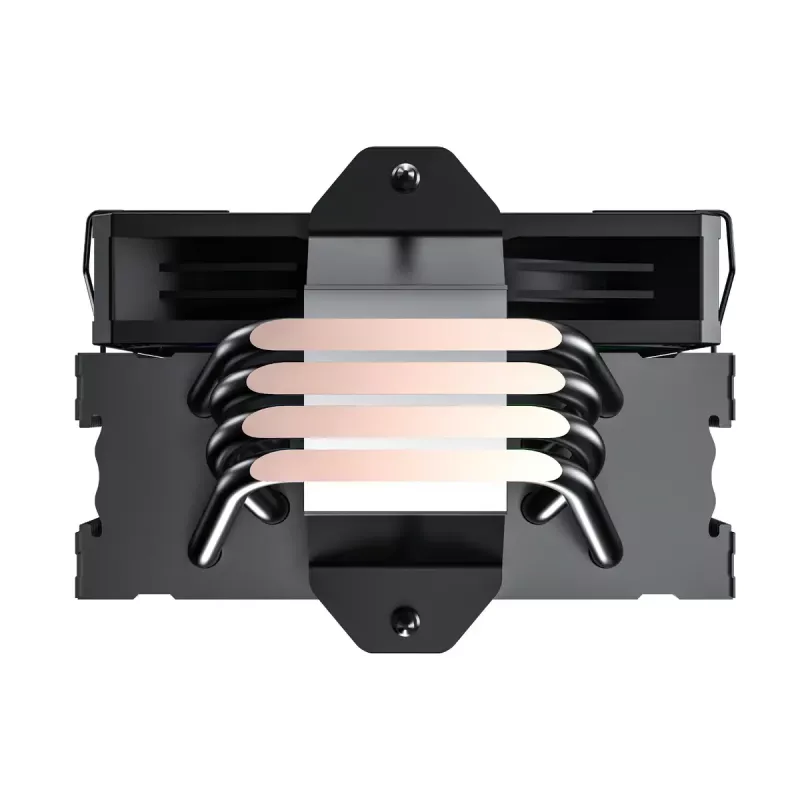

Sistema de refrigeración para ordenador REDRAGON CC-1013 ventilador de 12 cm 1800 rpm

The REDRAGON CC-1013 is a compact CPU air cooler with a 120 mm fan, measuring 152 x 75 x 133 mm and weighing 576 g. Its 1800 RPM fan delivers up to 72.6 CFM of airflow and a maximum static pressure of 2.12 mmH2O. The cooler supports a TDP of 180 W and is compatible with common Intel and AMD sockets, making it suitable for builds where space is limited while maintaining effective processor cooling.

Advantages

The fan uses a hydrostatic bearing for quieter and more stable operation and a rated lifespan of up to 40,000 hours. A digital display shows real-time CPU temperature, and integrated RGB lighting provides a modern appearance. Its compact dimensions and moderate weight simplify installation in smaller cases without sacrificing cooling capacity.

Suitable for

• Compact and mid-tower PC builds with limited clearance
• Systems requiring up to 180 W TDP cooling
• Users who want a temperature readout on the chassis
• Setups where moderate airflow and static pressure are sufficient

Key specifications

• Fan diameter: 120 mm
• Maximum fan speed: 1800 RPM
• Airflow: 72.6 CFM
• Maximum static pressure: 2.12 mmH2O
• Thermal Design Power (TDP): 180 W
• Dimensions (W×D×H): 152 × 75 × 133 mm
• Weight: 0.576 kg
• Bearing type: hydrostatic
• Features: digital temperature display, RGB lighting

How to use

Install the REDRAGON CC-1013 on a compatible Intel or AMD socket following the manufacturer’s mounting instructions. Apply thermal paste between the CPU and the cooler base if not pre-applied. Connect the fan and RGB power/data cables to the appropriate motherboard headers or controller. Verify that the digital display powers on and shows CPU temperature, then boot the system and monitor fan operation and temperatures in BIOS or through system software.

Recommendations

For optimal performance, ensure case airflow is not obstructed and that intake and exhaust fans create balanced circulation. Clean the fan and heatsink surfaces periodically to prevent dust buildup. Use this cooler in systems with up to 180 W TDP; for higher-TDP processors consider a larger air cooler or an AIO liquid solution.
