Sistema de videoconferencia grupal Yealink MeetingBar A40-031 48 MP 4K Ultra HD

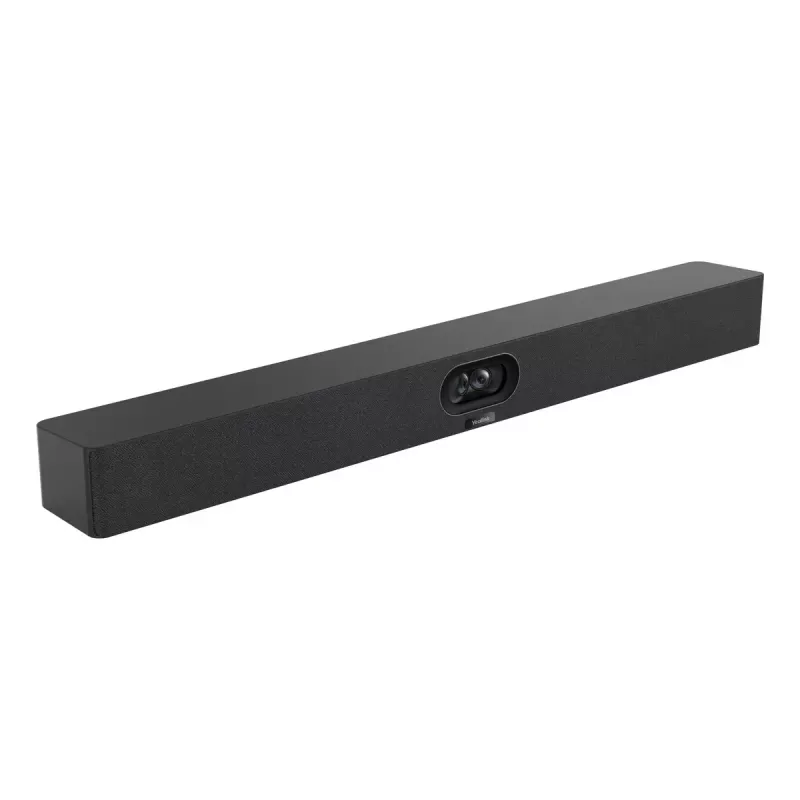

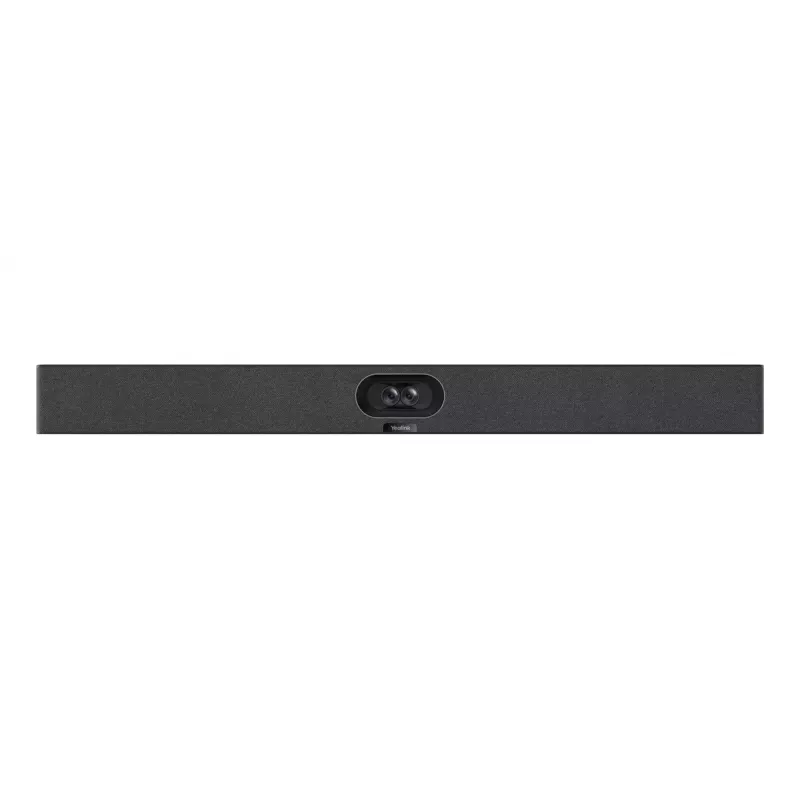

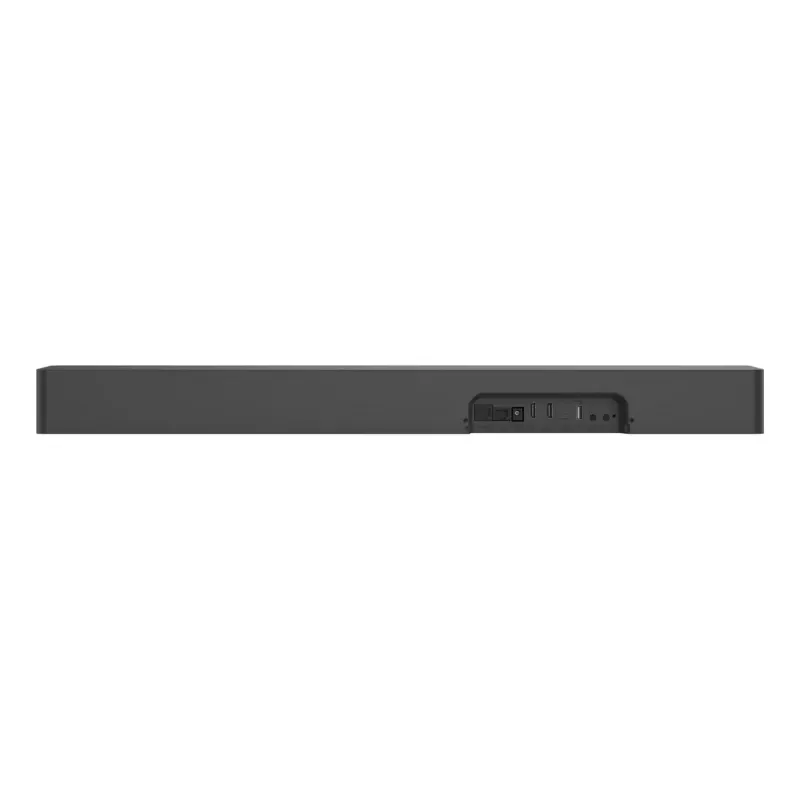

MeetingBar A40 is a next-generation all-in-one video bar designed for premium small and medium-sized meeting rooms. It delivers up to 48 MP capture and 4K Ultra HD output, supports video modes up to 2160p at 60 fps and 6x digital zoom, and provides Ethernet LAN, Wi‑Fi and Bluetooth connectivity. The 10.1-inch IPS touch console (1280 × 800) integrates with the bar via a One Cable Solution: a single Cat5e cable supplies power and network to the console while a single USB‑C on the desk enables 4K content sharing, General Mode and PD charging.

Advantages

The Yealink MeetingBar A40 combines high-resolution video capture with simplified installation and operation. AI-driven audio and video enhancements improve meeting clarity and participant framing. The One Cable Solution reduces cabling complexity and speeds deployment, and built-in connectivity options (Ethernet, Wi‑Fi, Bluetooth) support flexible room setups. The integrated 10.1-inch IPS touch console provides intuitive control and account synchronization via the Cat5e connection.

Suitable for

• Small and medium conference rooms and huddle spaces
• Hybrid meetings with remote participants
• Teams-enabled rooms requiring simple deployment and account synchronization
• Spaces that need 4K content sharing and desk PD charging

Key specifications

• Manufacturer: Yealink
• Model: MeetingBar A40-031
• Camera: 48 MP capture, 4K Ultra HD output, up to 2160p@60 fps, 6x digital zoom

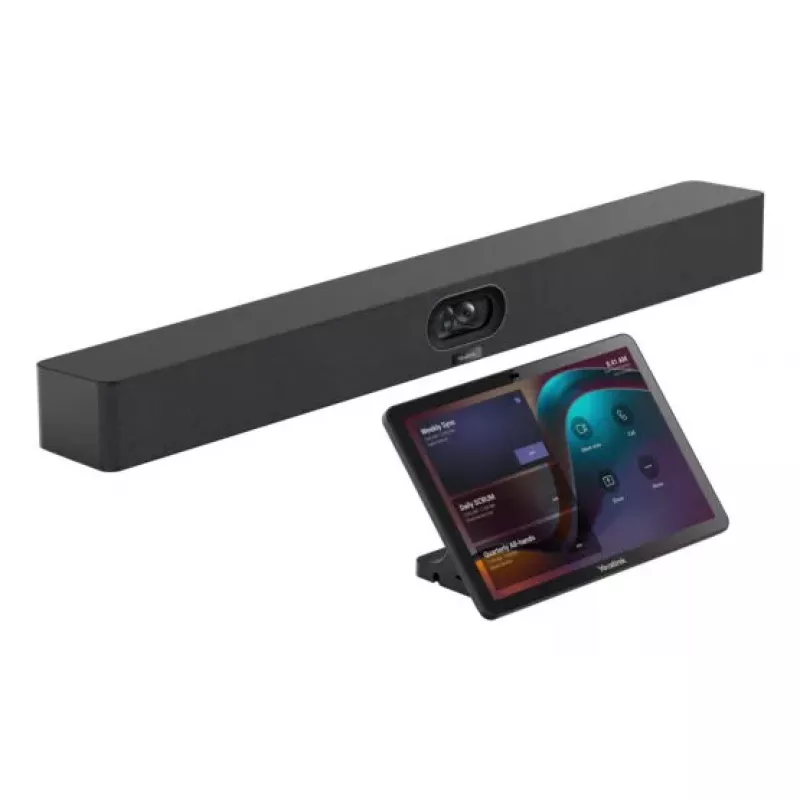

• Display: 10.1-inch IPS touch console, 1280 × 800 resolution
• Connectivity: Ethernet LAN, Wi‑Fi, Bluetooth
• One Cable Solution: Cat5e for power and network to console; USB‑C for 4K sharing and PD charging
• Weight: 5.54 kg
• Color: Black

How to use

Install the MeetingBar A40 on the display or meeting room wall according to the mounting instructions. Connect the touch console to the bar using a single Cat5e cable to provide power, network and automatic Teams account synchronization. For content sharing, plug the desk USB‑C into a laptop to enable 4K video sharing, General Mode functionality and PD charging. Configure network and meeting service settings via the console interface and adjust camera framing and audio settings as needed.

Recommendations

Place the bar centrally above or below the display at eye level for optimal camera framing; ensure the room network supports the required bandwidth for 4K video and enable Wi‑Fi or Ethernet according to your infrastructure. For consistent account synchronization, use the provided Cat5e connection between bar and console.
