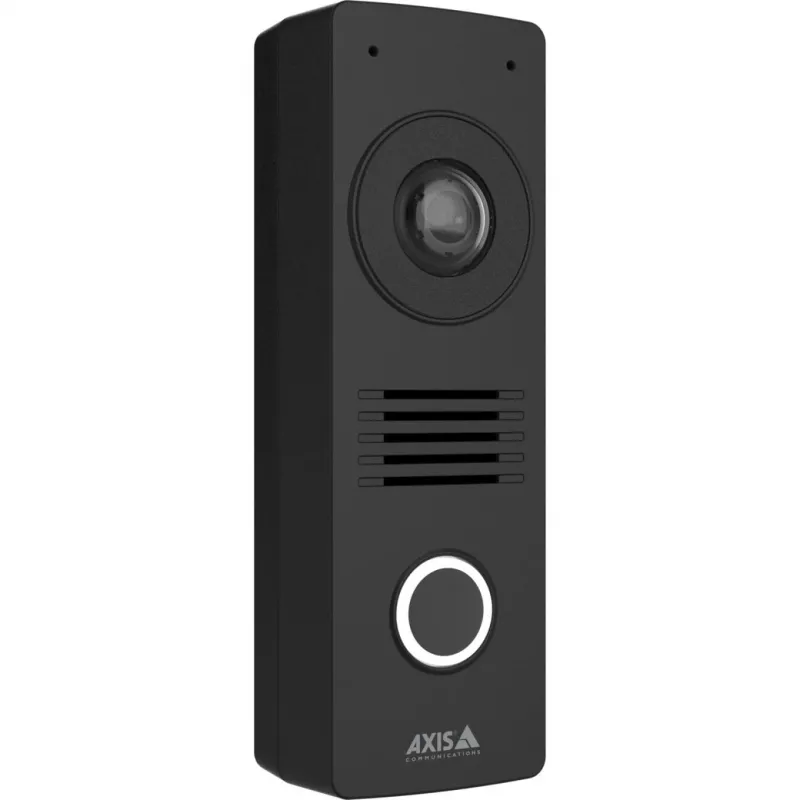

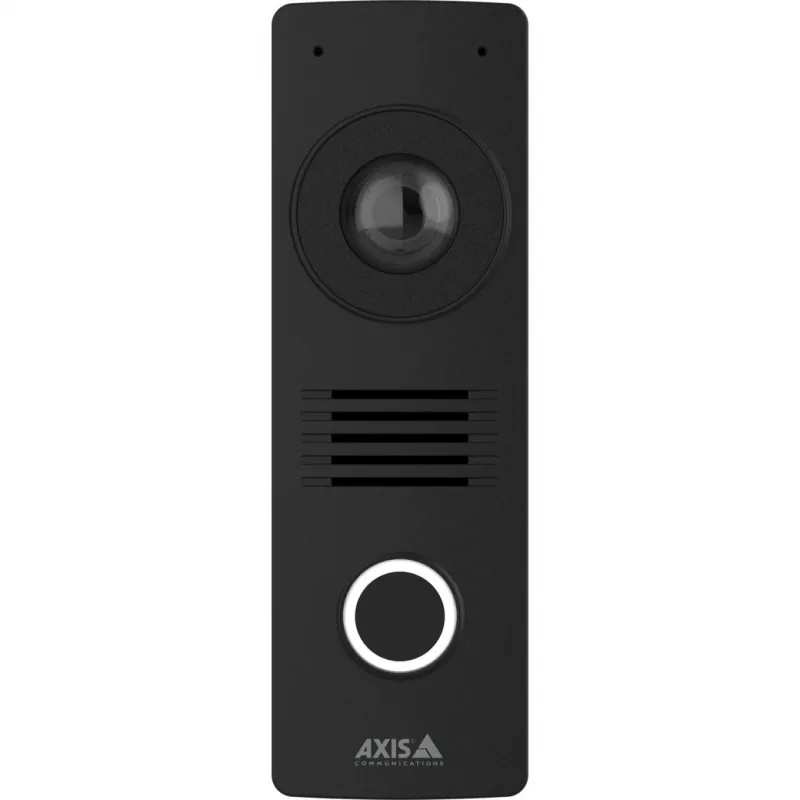

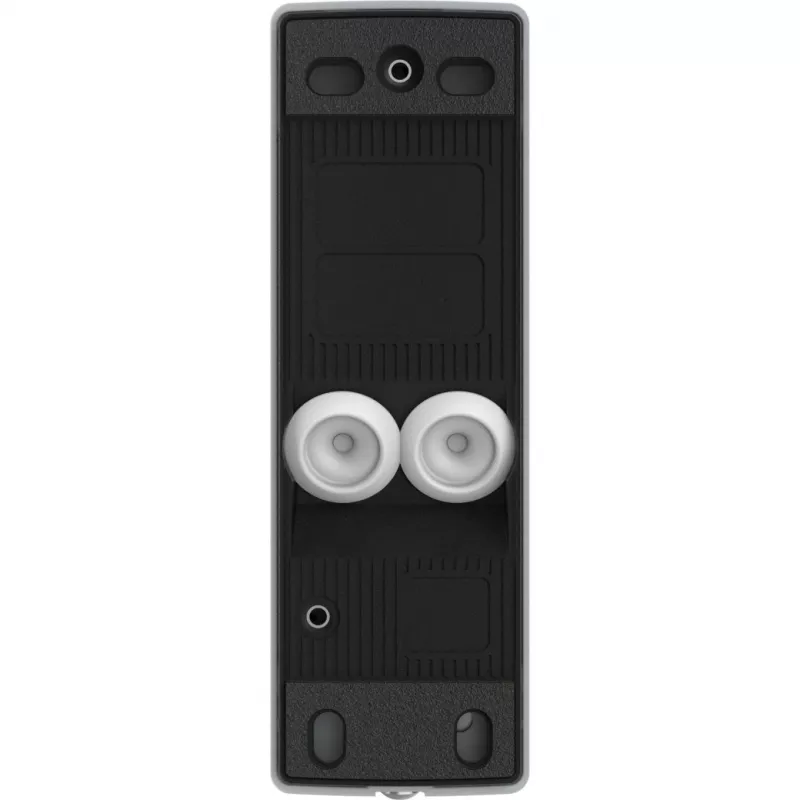

Sistema de videoportero Axis I8116-E 5 MP negro IP65 vertical

AXIS I8116-E is a compact outdoor-ready network video intercom designed for small spaces. At 48 mm (1.89 in.) in width it can be mounted on walls, doorframes or mullions and supports recessed installation with an optional flush-mount accessory. The device combines video surveillance and two-way communication while allowing control of door locks and integration with access control via configurable I/O ports and a single PoE cable.

Advantages

The intercom offers flexible and low-cost installation options thanks to its slim profile and multiple mounting possibilities. Built-in cybersecurity features, including Axis Edge Vault, protect device identity and simplify authorization on the network. AXIS I8116-E supports standard integration protocols such as SIP, VAPIX and ONVIF, enabling interoperability with leading VMS and IP phone systems. Edge-based deep learning analytics and Axis Object Analytics enable detection and classification of humans and vehicles. The 5 MP camera with WDR ensures clear images in scenes with both dark and bright areas.

Key specifications

• Model: AXIS I8116-E
• Width: 48 mm (1.89 in.)
• Outdoor-ready: yes
• Camera resolution: 5 MP
• Wide Dynamic Range (WDR): supported
• Analytics: edge-based deep learning, Axis Object Analytics
• Integration protocols: SIP, VAPIX, ONVIF
• Power and data: PoE
• I/O: configurable; can be switched to reader port

How to use

Mount AXIS I8116-E on a wall, doorframe or mullion using standard or flush mounting accessories for recessed installation. Connect power and network via PoE to provide both power and data over a single cable. Configure the device through your VMS or management interface, enable required cybersecurity features such as Axis Edge Vault, and set the I/O ports for lock control or reader integration as needed. Deploy Axis Object Analytics and other edge analytics to detect and classify people and vehicles, and configure recording like any other surveillance camera to capture events outside the door.

Recommendations

For optimal performance, install the intercom at a height and angle that gives a clear view of approaching persons and vehicles, ensure PoE infrastructure meets power requirements, and integrate with your VMS and access control systems to centralize monitoring and lock control. Use the flush-mount accessory where recessed installation is preferred and enable built-in cybersecurity functions during setup.
