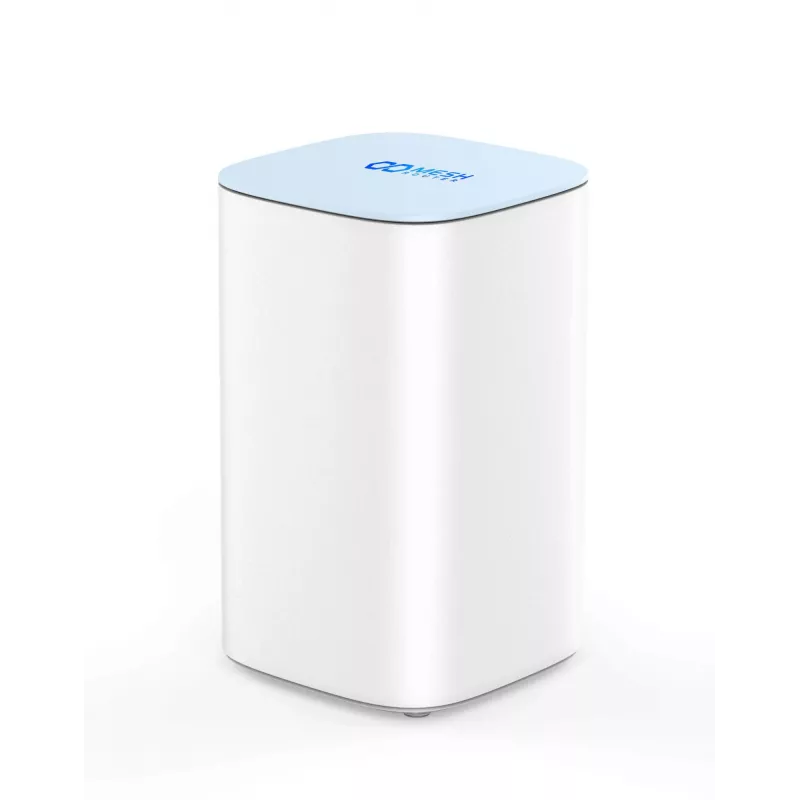

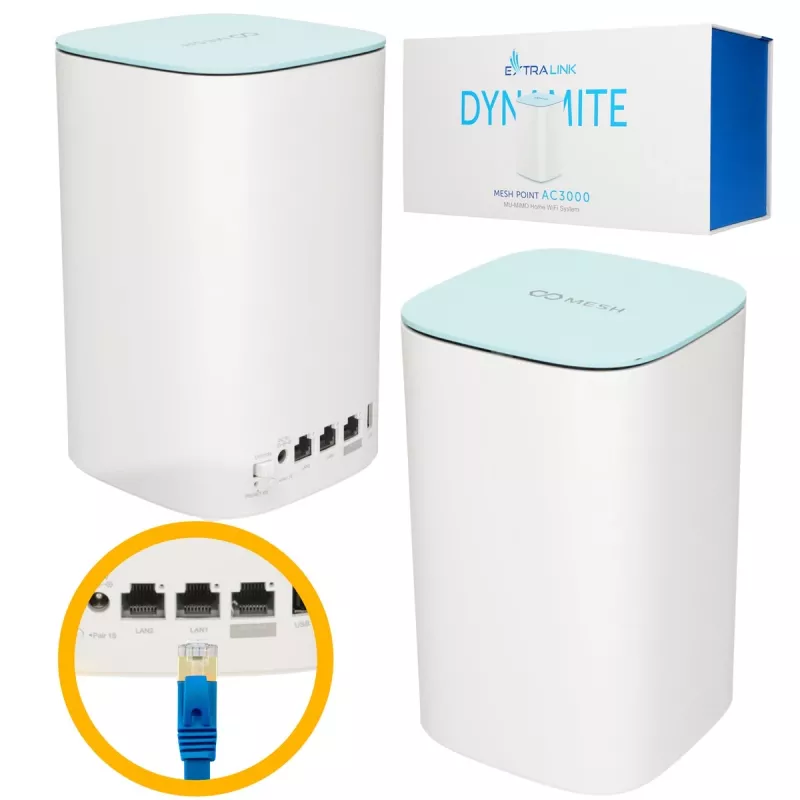

Sistema mesh Extralink DYNAMITE C31 AC3000 dual-band Wi-Fi 5

The Extralink DYNAMITE C31 AC3000 Dual-band Wi‑Fi 5 mesh system is a compact white-and-blue module designed to expand or form a home mesh network. Supporting Wi‑Fi 5 (802.11ac) and dual‑band operation (2.4 GHz and 5 GHz), the unit provides combined wireless capacity suitable for common home internet use. It includes three Ethernet LAN ports and internal antennas to deliver consistent coverage across rooms while working as a router, access point or satellite within an Extralink DYNAMITE mesh configuration.

Advantages

The device supports dual‑band Wi‑Fi 5 for simultaneous 2.4 GHz and 5 GHz connections, offering a practical balance between range and throughput. Internal antennas and a streamlined form factor make installation simple and unobtrusive in most home environments. Its mesh capability ensures devices maintain stable connections when moving between units, and the three Ethernet LAN ports enable wired connections for devices that require lower latency or higher stability.

Suitable for

• Expanding an existing Extralink DYNAMITE mesh network
• Creating a new mesh Wi‑Fi system in a home
• Providing wired connectivity to devices via LAN ports
• Improving wireless coverage in multi‑room apartments and houses

Key specifications

• Wi‑Fi bands: 2.4 GHz and 5 GHz (dual‑band)
• Top Wi‑Fi standard: Wi‑Fi 5 (802.11ac)
• Maximum WLAN data rate (aggregated): up to 2000 Mbit/s

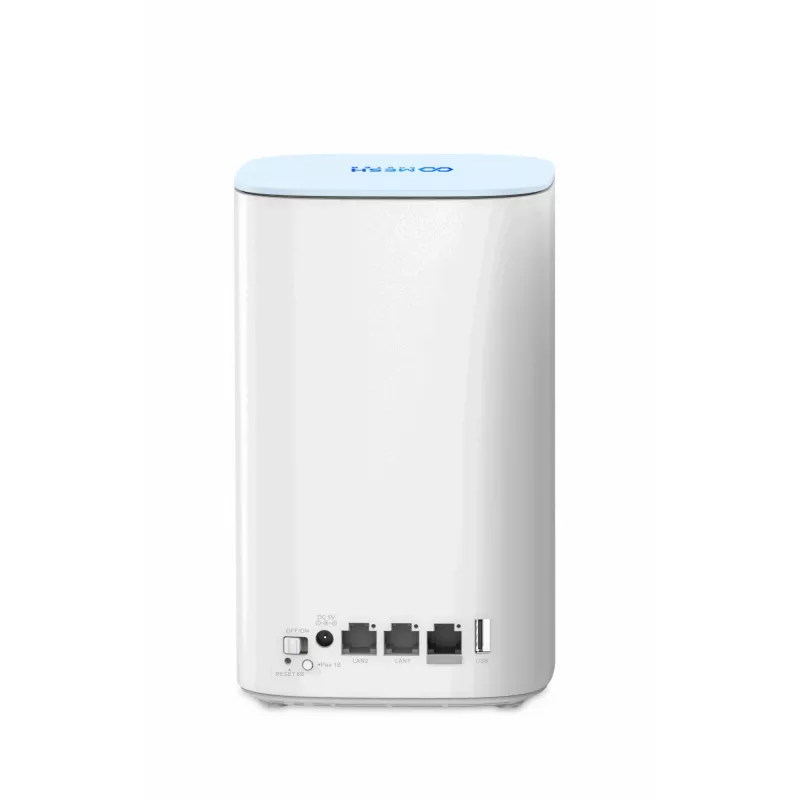

• Ethernet LAN (RJ‑45) ports: 3
• Antenna type: internal
• Supported Wi‑Fi standards: 802.11a/b/g/n/ac
• Product colour: white and blue

How to use

Place the DYNAMITE C31 unit within range of your existing router or other mesh nodes for optimal backhaul performance. Power the device, connect it to your network via one of the Ethernet LAN ports if required, and follow the Extralink setup procedure to add the unit to an existing mesh or to configure it as a primary router or access point. Positioning the unit centrally in areas with weak signal will help extend coverage; avoid placing it near large metal objects or sources of interference.

Recommendations

For best performance, use the 5 GHz band for high‑bandwidth activities such as streaming and gaming, and use the 2.4 GHz band for longer range or legacy devices. If you deploy multiple units, space them to maintain stable connections between satellites while keeping coverage overlapping in required areas.
