Sistema Mesh Mercusys AX3000 Dual Band Wi-Fi 6

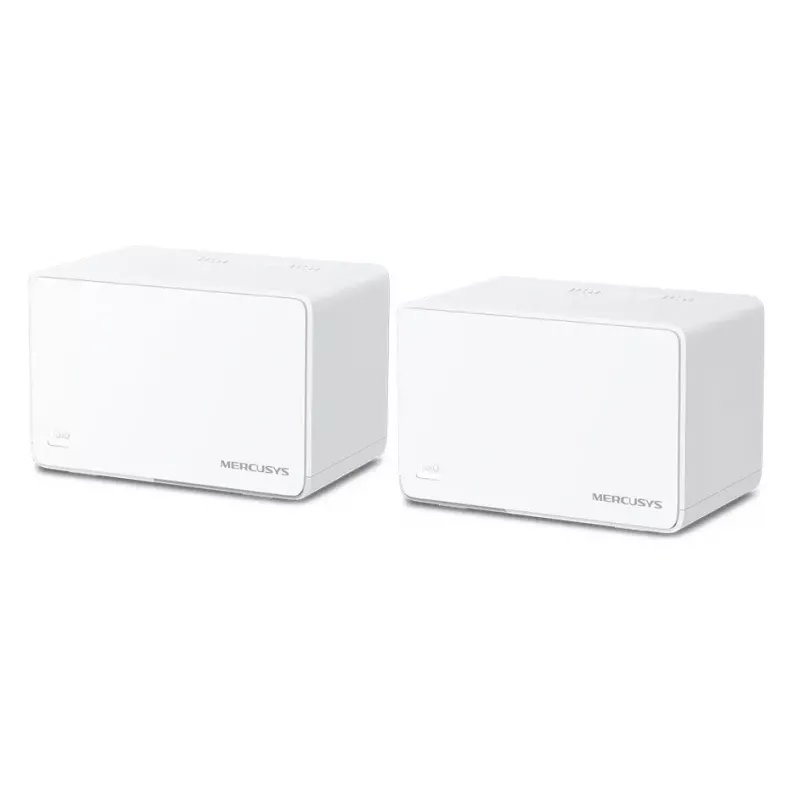

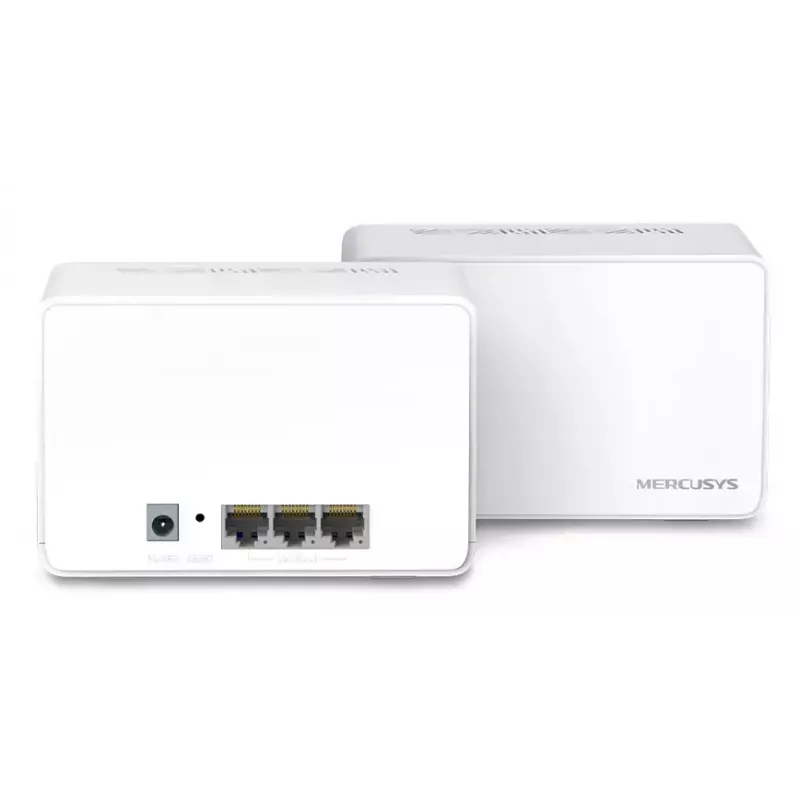

Mercusys AX3000 Dual-band Wi‑Fi 6 mesh system delivers whole-home WiFi coverage with dual‑band (2.4 GHz / 5 GHz) Wi‑Fi 6 (802.11ax) performance and a combined maximum throughput of up to 3000 Mbit/s. The kit includes multiple Halo units with internal antennas and full gigabit Ethernet ports to provide stable wired and wireless connections across large homes, simplifying setup and network management through the MERCUSYS app.

Advantages

The AX3000 mesh system provides seamless roaming on a single unified network name and password, automatic connection to the fastest node, and self‑healing routing between Halo units for consistent performance. Equipped with Beamforming and refined signal amplifiers, it concentrates and extends wireless signal strength. Wi‑Fi 6 technologies (OFDMA and MU‑MIMO) improve capacity so the network can handle over 150 connected devices. Full gigabit WAN/LAN auto‑sensing ports simplify wired setup and deliver high-speed wired transfers.

Suitable for

• Homes with WiFi dead zones that need whole‑home coverage
• Households with many smart devices, streaming and gaming needs (over 150 devices)
• Users who want simple app-based setup and parental controls

Key specifications

• Wi‑Fi standard: Wi‑Fi 6 (802.11ax); backwards compatible with 802.11a/b/g/n/ac
• Dual‑band speeds up to 3000 Mbit/s — 2402 Mbit/s (5 GHz) + 574 Mbit/s (2.4 GHz)
• Coverage: up to 650 m² (approx. 7,000 ft²) per kit; maximum coverage listed 460 m² per unit
• Connects over 150 devices simultaneously

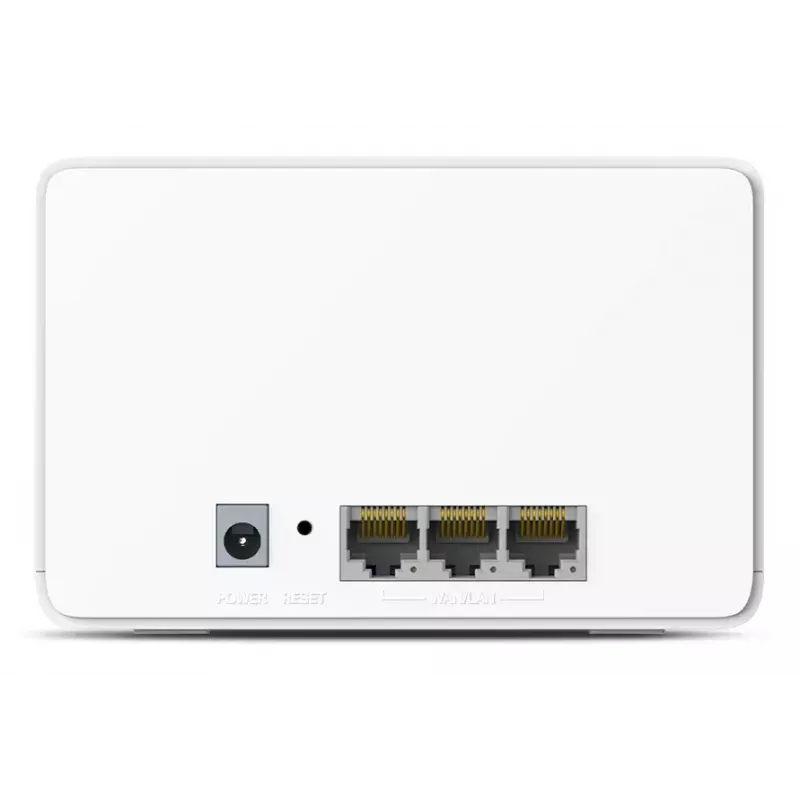

• Ethernet: 3× Gigabit ports per Halo unit; WAN/LAN auto‑sensing
• Security: WPA‑PSK, WPA2‑PSK, WPA3
• Network features: DHCP client/server, QoS support, PPPoE/Dynamic IP/Static IP
• Antenna: Internal; Colour: White
• Model / MPN: 6957939000691

How to use

Place Halo units around the home to ensure even coverage, ideally one unit per floor or large area, and connect one unit to your internet modem via an Ethernet cable. Install the MERCUSYS app on a smartphone, follow the in‑app setup steps to create the unified WiFi network name and password, and allow the system to automatically configure optimal connections and routes between units. Use the app to assign devices, monitor network status, and access parental controls.

Recommendations

For best performance, position Halo units in open areas away from large metal objects and sources of interference; keep a reasonable distance between units (not more than one or two interior walls) to maintain strong mesh links. Note that Halo H series and S series are not compatible with each other.
