Sistema SAT SCHWAIGER 80 cm 1 usuario LNB Single antracita

With a 38.5 dB dish gain at 11.7 GHz and a noise figure of just 0.1 dB, this 80 cm satellite system delivers crisp, uninterrupted reception for a single participant.

Overview

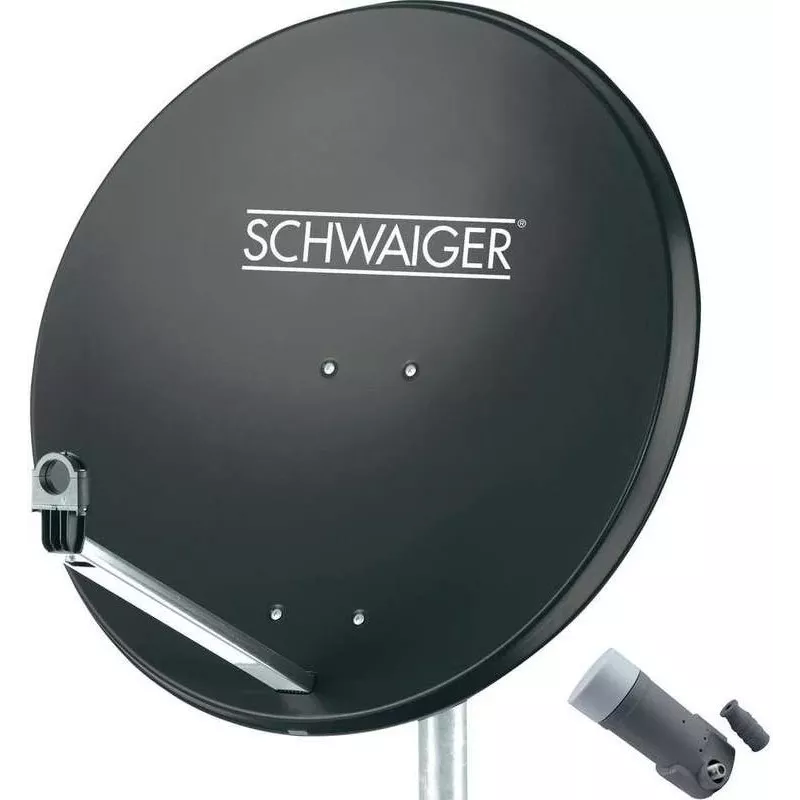

The SCHWAIGER SPI9961SET1 is a complete satellite reception set built around an 80 cm offset dish with anthracite powder-coated steel reflector. It includes a Single-LNB with pull-out weather protection housing, mast mount, and all mounting accessories. The LNB covers an input frequency range of 10.7–12.75 GHz and outputs 950–2150 MHz, with linear H/V polarization and an F-connector interface.

What stands out

• 80 cm reflector for strong signal gain even in fringe areas
• Low-noise LNB with 0.1 dB noise figure for clear reception
• Pull-out weather protection housing shields the LNB from rain and snow
• Wide mast clamp fits 32–60 mm poles for flexible installation
• Elevation adjustable from 0° to 90° for precise alignment

Technical details

• Dish diameter: 80 cm
• Reflector material: powder-coated steel
• Reflector colour: anthracite
• LNB type: Single-LNB
• Number of participants: 1
• LNB feed diameter: 40 mm
• Input frequency range: 10.7–12.75 GHz
• Output frequency range: 950–2150 MHz
• LNB noise figure: 0.1 dB (typ.)
• LNB gain: 50–62 dB
• Dish gain at 11.7 GHz: 38.5 dB
• Offset angle: 26°
• Mast clamp diameter: 32–60 mm
• Elevation adjustment range: 0–90°
• Wind load resistance: up to 200 km/h
• Connector type: F-connector
• Polarization: linear H/V

Our verdict

A robust, all-in-one satellite kit for single-user installations, offering excellent gain and weather protection in a discreet anthracite finish.
