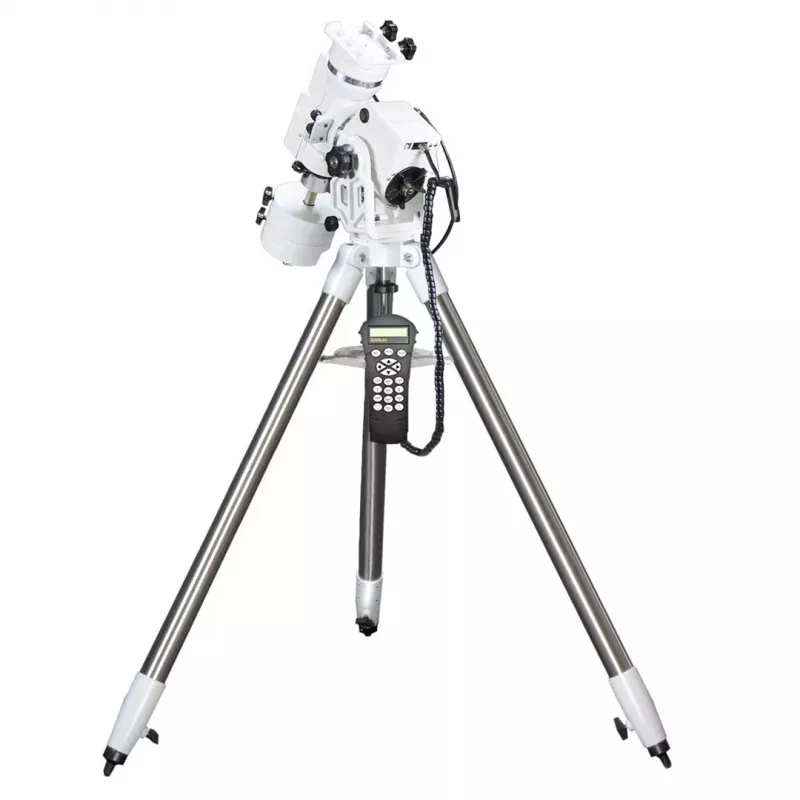

Montura híbrida Skywatcher AZ-EQ5 NEQ5 trípode para uso ecuatorial y altazimutal, modelo SW-4156

Skywatcher Hybrid Mount AZ-EQ5 NEQ5 tripod (model SW-4156) is a versatile mounting solution designed for amateur astronomers who need both equatorial tracking and alt-azimuth pointing in a single platform. The hybrid design converts between NEQ5 equatorial mode for accurate sidereal tracking and an AZ mode for intuitive up-down/left-right movements. It is intended to carry medium-weight telescopes for backyard observing, guiding visual sessions, and entry-level astrophotography where stable support and flexible alignment are required.

Advantages

The hybrid AZ-EQ5 NEQ5 mount offers stable mechanical support and straightforward conversion between equatorial and alt-azimuth configurations, reducing the need for multiple mounts. It enables precise polar alignment for long-exposure tracking in equatorial mode and simple intuitive motion in alt-azimuth mode for quick visual targeting. The tripod provides a rigid platform with adjustable legs for leveling on uneven ground, and the mount’s controls are designed for smooth manual slewing and fine adjustments during observations.

Suitable for

• Backyard visual astronomy with medium-weight refractors or reflectors
• Planetary and lunar observation
• Wide-field and short-exposure astrophotography with guide or short tracking sessions
• Public outreach events and casual observing sessions
• Switching quickly between visual use and simple tracking tasks

Key specifications

• Mount type: hybrid convertable between equatorial (NEQ5-style) and alt-azimuth modes
• Payload capacity: suitable for medium-weight telescopes and optical tubes
• Tripod: adjustable-height aluminium tripod with stability features for field use
• Movement control: manual slow-motion controls and smooth slewing in both modes
• Alignment capability: supports polar alignment procedures in equatorial mode

How to use

Assemble the tripod and secure the mount head according to the included assembly points; extend and lock the tripod legs to a comfortable observing height and level the mount roughly. For visual observing or quick setup, convert to alt-azimuth mode and balance the telescope on the mount, then use the manual controls to point and track objects. For tracking and longer exposures, switch to equatorial (NEQ5) mode, perform polar alignment using a polar scope or drift alignment method, balance the instrument on both axes, and engage the tracking mechanism if available for sidereal rate motion. Check balance and tighten clutches before starting observations.

Recommendations

Use medium-weight optical tubes within the mount’s capacity and always balance the instrument before tightening clutches. Level the tripod and use a stable surface to minimize vibration; add a small weight or sandbag to the tripod spreader for increased damping during imaging sessions. When switching modes, verify all locks and clamps are secure and perform a fresh balance and alignment to ensure accurate tracking and smooth motion.
