Unidad de accionamiento para montura ecuatorial — accionamiento en ambos ejes EQ3-2 SW-4307 OEM

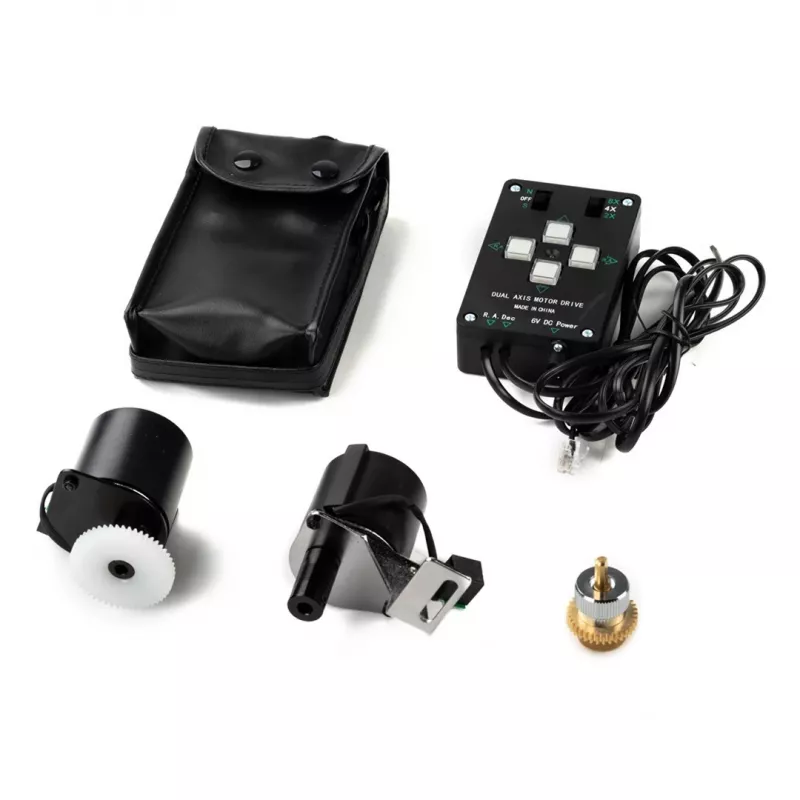

Drive in both axes EQ3-2 SW-4307 OEM is a replacement drive unit engineered for EQ3-2 equatorial mounts. It provides motorized motion in both right ascension and declination axes to enable tracking of celestial objects and to assist with manual slewing. The unit is intended as a direct-fit upgrade or replacement for compatible EQ3-2 mount assemblies and supports basic astrophotography and observational use by improving tracking stability and facilitating target centering.

Advantages

The dual-axis drive delivers coordinated movement in both right ascension and declination, which reduces manual adjustments during observation. It enables steady sidereal tracking for longer visual sessions and short-exposure imaging. Designed for compatibility with EQ3-2 mounts, the drive unit simplifies installation as a replacement component and offers consistent motor control for incremental guiding and positioning.

Suitable for

• Visual observation of planets, the Moon, star clusters and brighter deep-sky objects
• Beginner to intermediate astrophotography with short exposure times
• Replacing or upgrading the drive mechanism on EQ3-2 equatorial mounts
• Field use where motorized tracking and manual slewing are required

Key specifications

• Motorized drive for both right ascension and declination axes
• Compatibility with EQ3-2 style equatorial mounts
• Supports sidereal tracking for visual use and short-exposure imaging
• Manual slewing capability alongside motorized tracking
• Replacement unit form factor designed for straightforward installation

How to use

Install the drive unit onto an EQ3-2 equatorial mount following the mount manufacturer’s mechanical and electrical connection instructions. After secure mounting, balance the telescope on both axes to minimize motor load. Power the motor according to the mount’s power requirements and engage the drive to begin tracking; use manual controls or hand adjustments as needed to center targets. For imaging, perform polar alignment and ensure the mount is well-balanced before starting exposures to achieve the best tracking performance.

Recommendations

For optimal results, verify mechanical fit and electrical compatibility with your specific EQ3-2 mount model before installation. Perform a careful polar alignment and balance the payload to reduce strain on the motors. Use the drive for visual observing and short-exposure astrophotography; for long-exposure imaging, consider additional guiding solutions and vibration mitigation.
