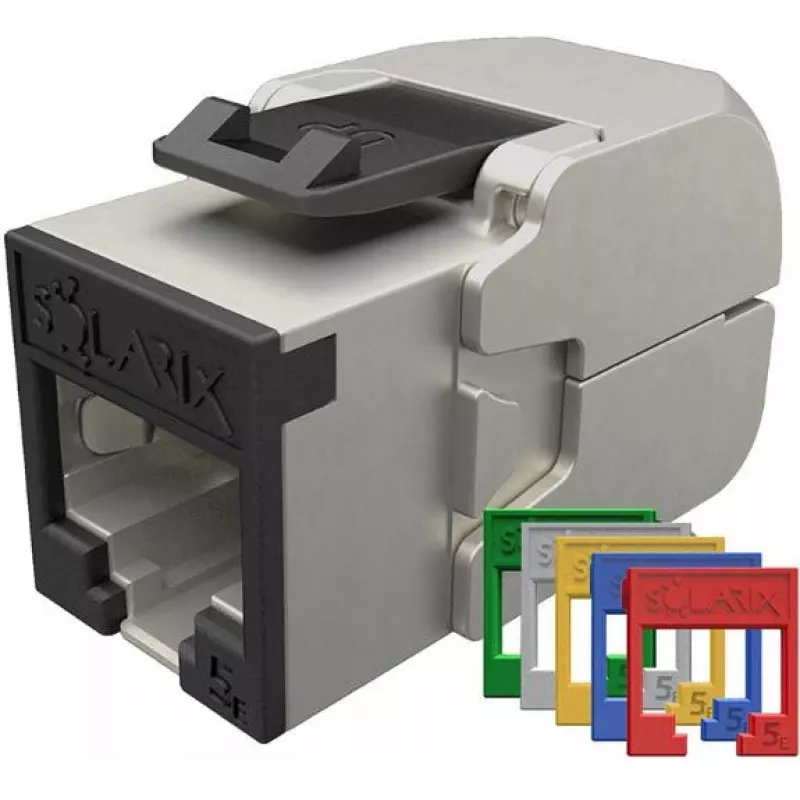

SOLARIX keystone jack Cat.5E STP sin herramientas, RJ45, blanco

In modern network installations, terminating shielded Cat.5E cabling can be time-consuming and error-prone, often requiring specialized punch-down tools and risking inconsistent connections. The SOLARIX SXKJ-5E-STP-BK-SA tool-free keystone jack eliminates this hassle with a self-terminating design that lets you complete a reliable, shielded RJ45 connection in seconds—no tools required. Ideal for data centers, office cabling, and residential networks, this module ensures consistent performance and durability, even in high-density patch panels and wall plates.

Who is it for

This keystone jack is perfect for network installers, IT professionals, and DIY enthusiasts who need a fast, reliable termination for shielded Cat.5E cabling. Whether you're setting up a new office network, upgrading an existing infrastructure, or performing field repairs, the tool-free design saves time and reduces installation errors. It's also suitable for use in patch panels, wall plates, and surface-mount boxes where a standard keystone footprint is required.

Main features

• Tool-free termination: simply insert wires and snap the cap—no punch-down tool needed.
• Shielded STP design with metal housing for superior EMI/RFI protection in noisy environments.
• Supports both T568A and T568B wiring standards with clear color-coded labels.
• Gold-plated contacts (50µm) ensure low contact resistance and corrosion resistance for long-term reliability.
• Accepts 22-26 AWG solid or stranded conductors, providing flexibility for various cable types.
• Durable construction: rated for at least 750 mating cycles and 200 re-terminations.
• UL 94V-0 flammability rating for safety in commercial installations.
• Compliant with ISO/IEC 11801, EN 50173, and ANSI/TIA-568-C.2 standards.

Specifications

• Category: Cat.5E
• Shielding: STP (Shielded Twisted Pair)
• Connector type: RJ45 (8P8C) female
• Termination: Tool-free IDC
• Wiring standard: T568A/B
• Contact plating: Gold, 50µm
• Housing material: Polycarbonate with metal shielding
• Wire gauge: 22-26 AWG (solid and stranded)
• Mating cycles: ≥750
• IDC durability: ≥200 terminations
• Flammability rating: UL 94V-0
• Operating temperature: -10°C to +60°C
• Colour: White
• Compliance: ISO/IEC 11801, EN 50173, ANSI/TIA-568-C.2

Tips

For best results, strip the cable jacket to the recommended length and arrange the wire pairs according to the color code printed on the jack. Ensure the cable shield makes proper contact with the metal housing to maintain grounding continuity. When using stranded cable, avoid excessive bending near the termination to prevent conductor breakage. This jack is compatible with standard keystone wall plates and patch panels, making it a versatile addition to your networking toolkit.
