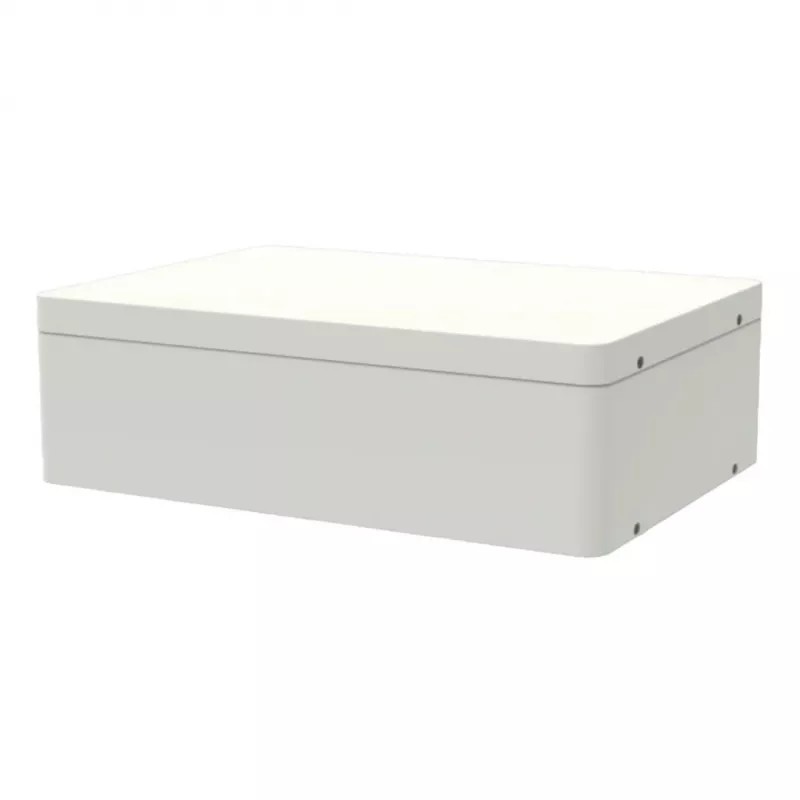

SolaX Triple Power Battery Master Box TB-HS51O - Base de batería, cubierta inferior, cable de comunicación, cable de alimentación

The SolaX Triple Power Battery Master Box TB-HS51O is an essential component for managing and expanding your SolaX Triple Power High Voltage battery storage system. This master box serves as the central hub, providing the necessary interfaces for communication and power distribution between the inverter and up to four battery modules. Designed for both residential and light commercial energy storage applications, it ensures reliable and efficient operation of your solar-plus-storage system.

Advantages

Seamlessly integrates with SolaX Triple Power HV battery modules, enabling flexible system scaling from 1 to 4 modules. The robust IP65-rated enclosure protects against dust and water ingress, making it suitable for indoor or outdoor installation. Real-time monitoring and fault detection capabilities allow for proactive system management and maintenance.

Suitable for

• Residential energy storage systems using SolaX Triple Power HV batteries
• Light commercial solar-plus-storage installations
• Expanding existing SolaX battery systems with additional modules

Key specifications

• Product Type: Battery Management System (BMS) / Master Box
• Compatibility: SolaX Triple Power High Voltage Battery Modules (e.g., T-BAT H 5.8)
• Supported Battery Modules: 1 to 4
• System Voltage Range: 80V - 460V (depending on connected modules)
• Communication Interface (Inverter): CAN Bus
• Communication Interface (Modules): RS485
• Protection Features: Over-charge, Over-discharge, Over-current, Over-temperature, Short Circuit
• Operating Temperature Range: -10°C to +50°C
• Ingress Protection (IP) Rating: IP65
• Installation Type: Wall-mounted or Floor-standing
• Monitoring: Real-time data, Fault detection
• Max. Charge/Discharge Current: 25A (System Dependent)
• Battery Chemistry Support: Lithium Iron Phosphate (LiFePO4)
• Certifications: CE, IEC 62619, UN38.3 (System Level)

Recommendations

For optimal performance, pair this master box with genuine SolaX Triple Power HV battery modules and a compatible SolaX inverter. Ensure proper installation by a qualified electrician and follow all local regulations.
