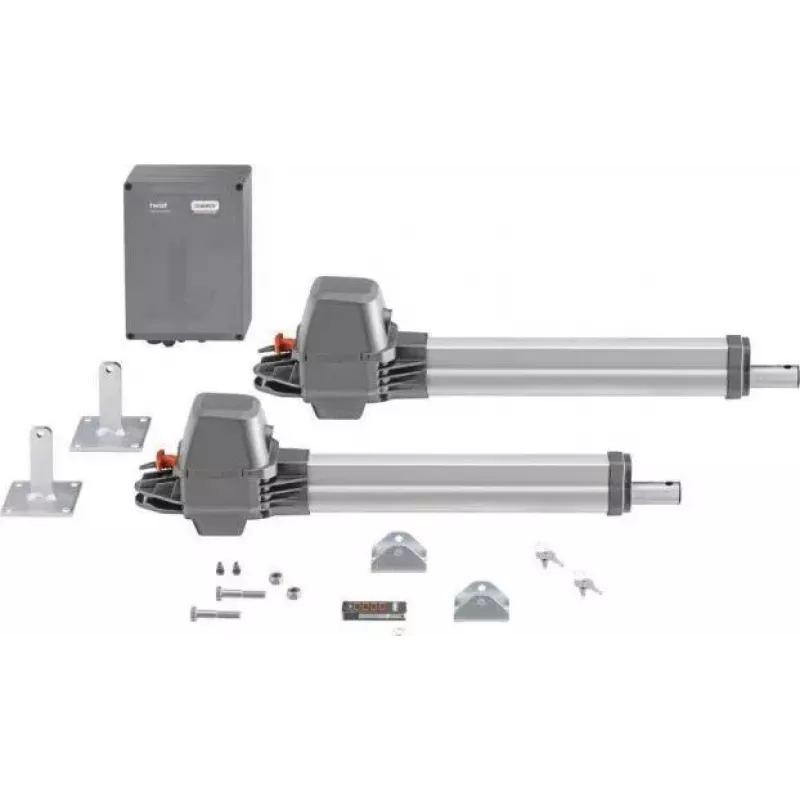

SOMMER CABLE twist M S3 Set Motor de puerta batiente de 2 hojas 868,95 MHz negro con fuente de alimentación Schuko

The SOMMER twist M S3 is a professional electromechanical swing gate opener designed for residential and light commercial use. This complete set includes two drive units, two 4-command hand transmitters, and a Schuko mains power supply, providing everything needed for a reliable and secure gate automation system. With SOMloq2 bidirectional radio technology at 868.95 MHz, it ensures safe and interference-free operation.

Advantages

Robust 24 V DC motor with soft start/stop for smooth operation. Integrated obstacle detection with automatic reversal enhances safety. Manual emergency release allows operation during power outages. Weather-proof IP54 housing ensures long-lasting performance in all climates.

Suitable for

• Swing gates up to 2.5 m per leaf and 250 kg per leaf
• Residential properties and small commercial sites
• 2-leaf gates with opening angle up to 120°

Key specifications

• Gate Type: Swing Gate
• Number of Leaves: 2
• Max Leaf Width: 2500 mm
• Max Leaf Weight: 250 kg per leaf
• Motor Voltage: 24 V DC
• Mains Supply: 230 V AC, 50 Hz
• Radio System: SOMloq2 (bi-directional)
• Radio Frequency: 868.95 MHz
• Protection Class: IP54
• Operating Temperature: -30 °C to +70 °C
• Max Opening Angle: 120°
• Soft Start/Stop: Yes
• Obstacle Detection: Yes, with automatic reversal
• Manual Emergency Release: Yes
• Included Remote Controls: 2 x 4-command hand transmitters
• Drive Technology: Electromechanical spindle drive
• Max Thrust Force: 1500 N
• Control Unit: Integrated, programmable
• Housing Material: UV-resistant plastic
• Color: Black

Recommendations

For optimal performance, ensure gate hinges are in good condition and the gate moves freely. Professional installation is recommended.
