SOMMER S 9060 base+S3 Set Abrepuertas de garaje

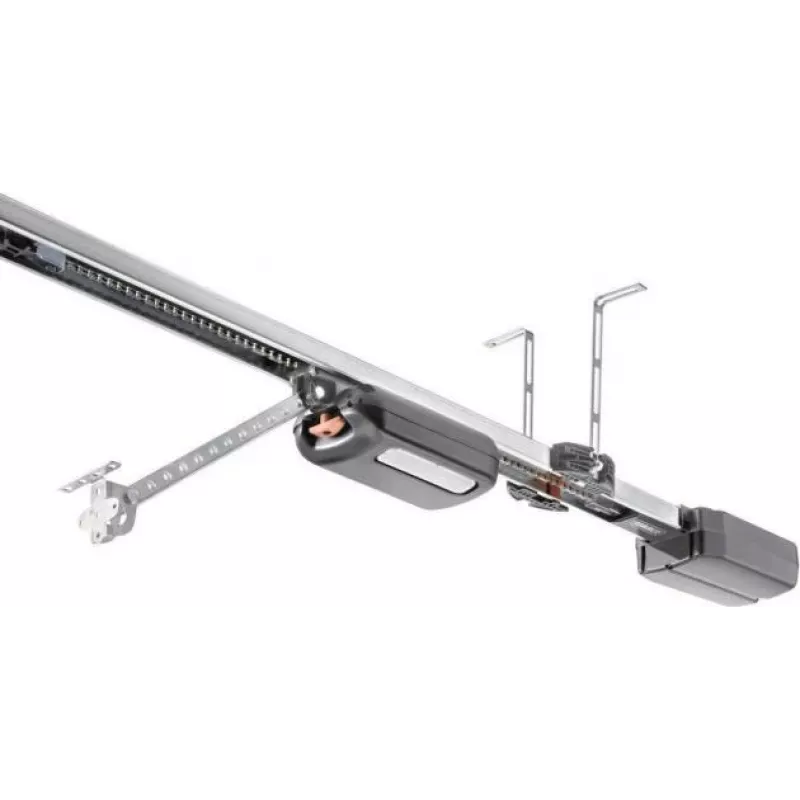

The SOMMER S 9060 base+S3 Set is a complete garage door opener system designed for residential use. It combines a powerful 600 N drive head with a robust S3 steel rail, offering reliable and quiet operation for sectional and up-and-over doors. The set includes two Pearl Vibe 4-command hand transmitters with SOMloq2 bidirectional radio technology for secure and convenient control.

Advantages

Experience smooth and quiet door movement thanks to the moving motor with stationary chain/belt drive system. The integrated LED lighting illuminates your garage, while soft start/soft stop reduces wear and tear. Safety features include automatic obstacle detection and reversal, plus an emergency release for power outages. The SOMloq2 radio system with 128-bit AES encryption ensures high security against unauthorized access.

Suitable for

• Residential sectional garage doors
• Up-and-over garage doors
• Single-leaf doors up to 9 m² area
• Doors with max width 5500 mm and max height 2750 mm (with S3 rail)

Key specifications

• Max. Pulling/Pushing Force: 600 N
• Max. Door Area: 9 m²
• Max. Door Height (with S3 rail): 2750 mm
• Max. Door Width: 5500 mm
• Opening Speed: Approx. 180 mm/s
• Drive System: Moving motor with stationary chain/belt
• Radio System: SOMloq2 (bidirectional, 868.8 MHz, 868.95 MHz)
• Included Remote Controls: 2x Pearl Vibe 4-command hand transmitters
• Power Supply: 230 V AC, 50/60 Hz
• Standby Power Consumption: < 0.5 W
• Protection Class (Drive Head): IP21
• Operating Temperature Range: -20°C to +50°C
• Safety Features: Automatic obstacle detection, automatic reversal, emergency release
• Soft Start/Soft Stop: Yes
• Integrated Lighting: LED lighting
• Rail Type: S3 (3-part steel rail)
• Security: 128-bit AES encryption
• Connectivity Options: Optional modules for SmartHome, WLAN, Bluetooth, battery backup
• Motor Type: DC Gear Motor
• Max. Cycles per Day: 20

Recommendations

For optimal performance, ensure the door is properly balanced and lubricated. The S3 rail must be installed according to the door height. Optional modules can add smart home integration or battery backup for continued operation during power failures.
