Soporte activo Brodit 513013 Inclinable/Giratorio para ordenador móvil

The Brodit Active Holder 513013 is an in-dash active holder designed for mobile computers. It features a tilt swivel for adjustable viewing angles and a Molex adapter system for optional power accessories. The holder supports charging at 2 A and fits devices with standard and extended batteries. The unit is compatible with both 12 V and 24 V vehicle systems and is E-approved.

Advantages

The design allows for a discreet installation inside the dashboard so cables are not visible in the vehicle interior. The tilt swivel enables easy adjustment to reduce screen glare. With the Molex connector you can add external power accessories such as a GPS receiver or other powered devices (note: the Molex connection supplies power only and does not support data or audio).

Suitable for

• Mounting a mobile computer in cars, vans, and trucks
• Charging devices with standard or extended batteries while driving
• Integrating external powered accessories (power only, no data/audio)

Key specifications

• Type: Active holder for mobile computer
• Model: Brodit 513013
• Power output: 2 A charger
• Power input: 12/24 V vehicle systems
• Connector: Molex adapter system (power only)
• Colour: Black
• Approval: E-approved

How to use

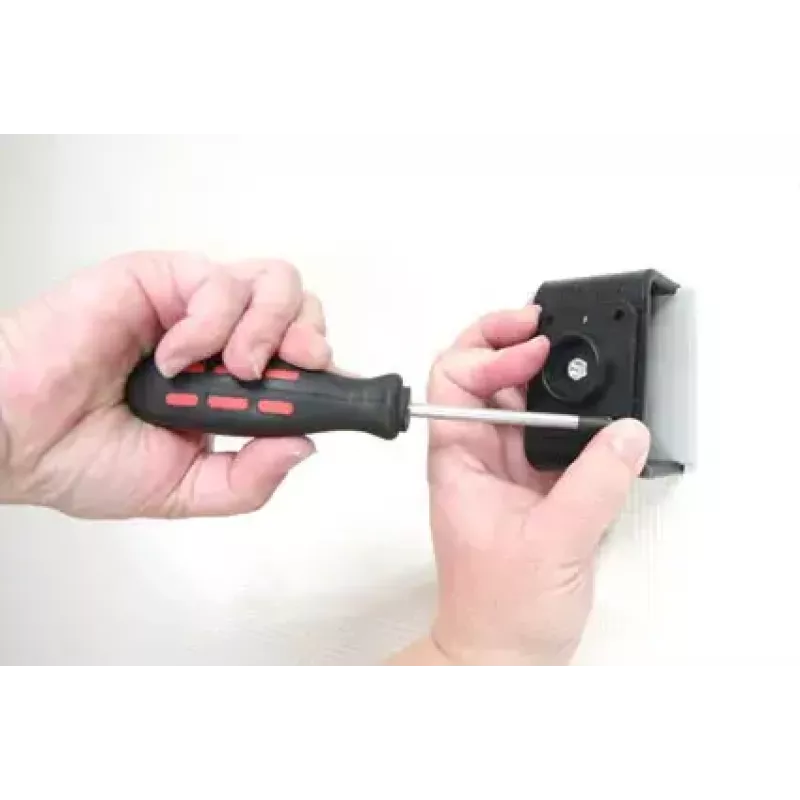

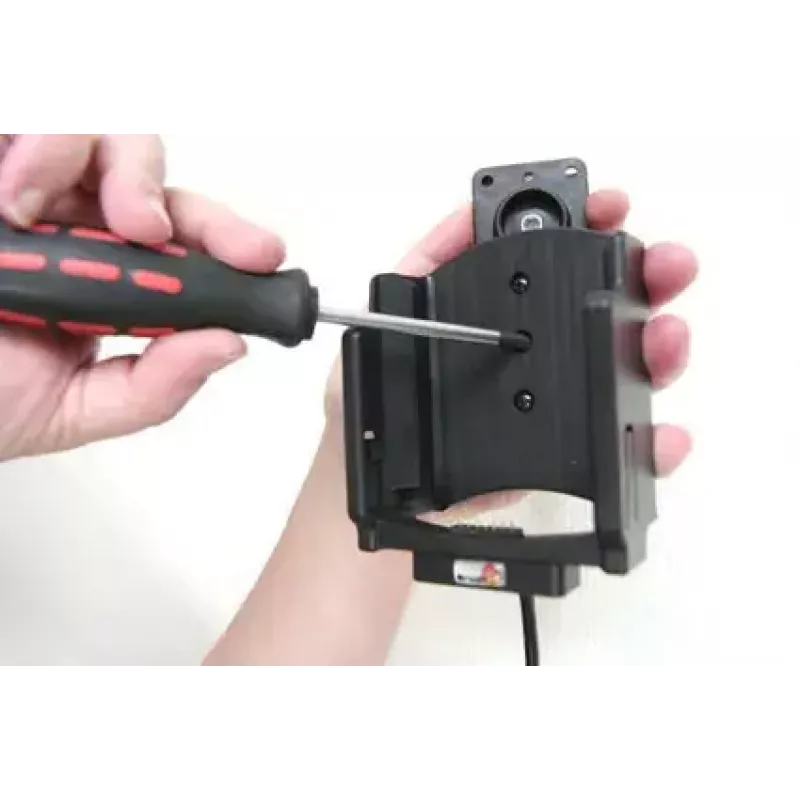

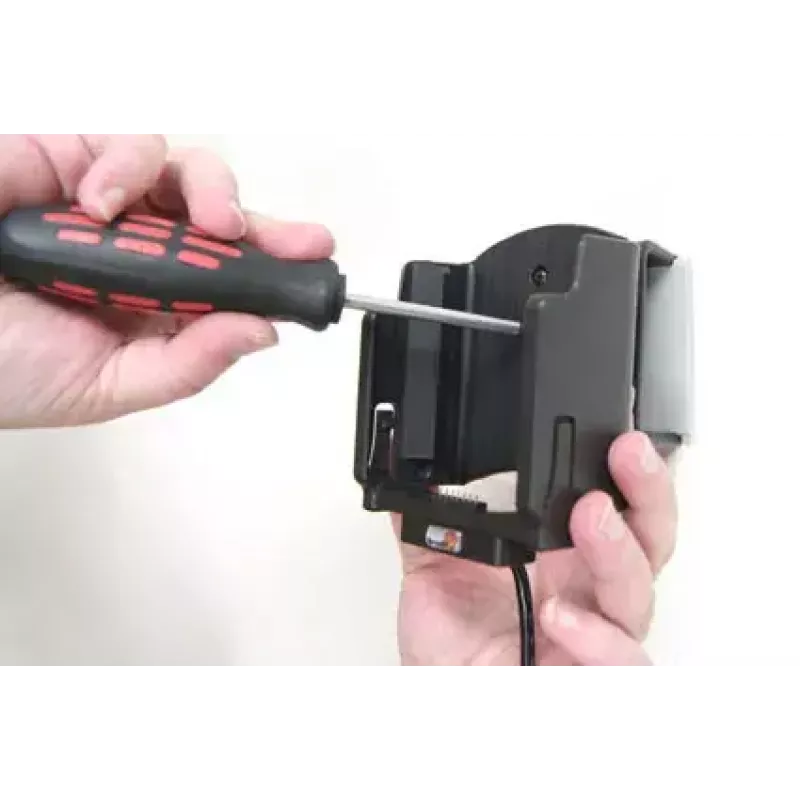

Install the holder inside the dashboard and attach it to a ProClip mounting platform. Connect the power cable through the vehicle wiring using a 2 A fuse as specified. The tilt swivel lets you position the mobile computer to the desired viewing angle to minimise reflections. Use the Molex connector when an additional powered accessory is required; ensure the connected accessory is compatible with a 2 A supply and does not require data or audio connections.

Recommendations

Professional installation is recommended to ensure correct mounting and safe electrical connection. Do not use the Molex connector for data communication or audio. Verify that total current draw does not exceed the 2 A fuse rating.
