Soporte Axagon RHD-435 para 4x 2,5 pulgadas o 2x 2,5 pulgadas HDD/SSD y 1x 3,5 pulgadas HDD en bahía de 5,25 pulgadas, Metal

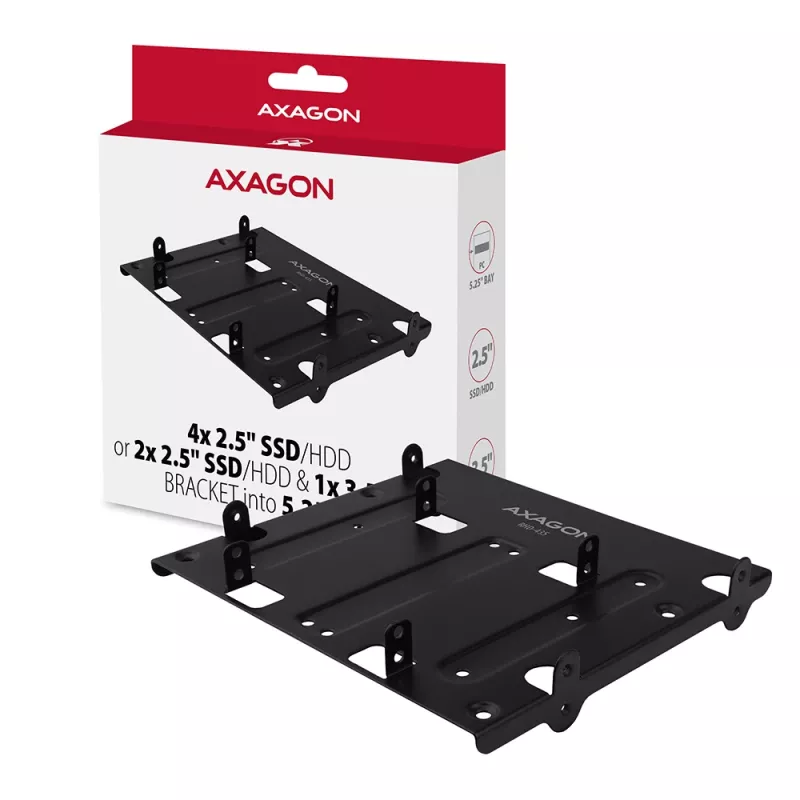

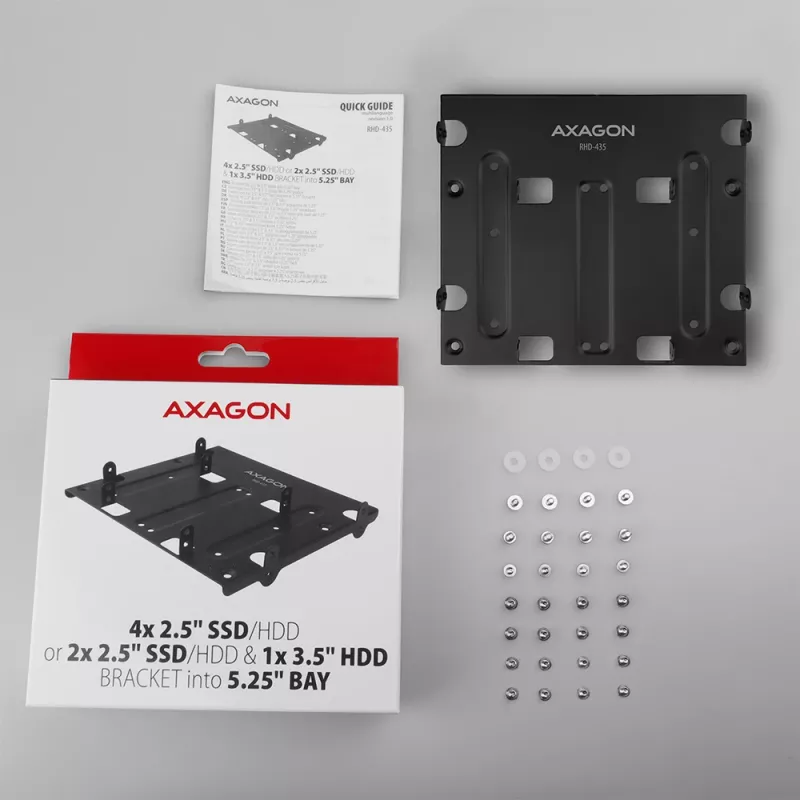

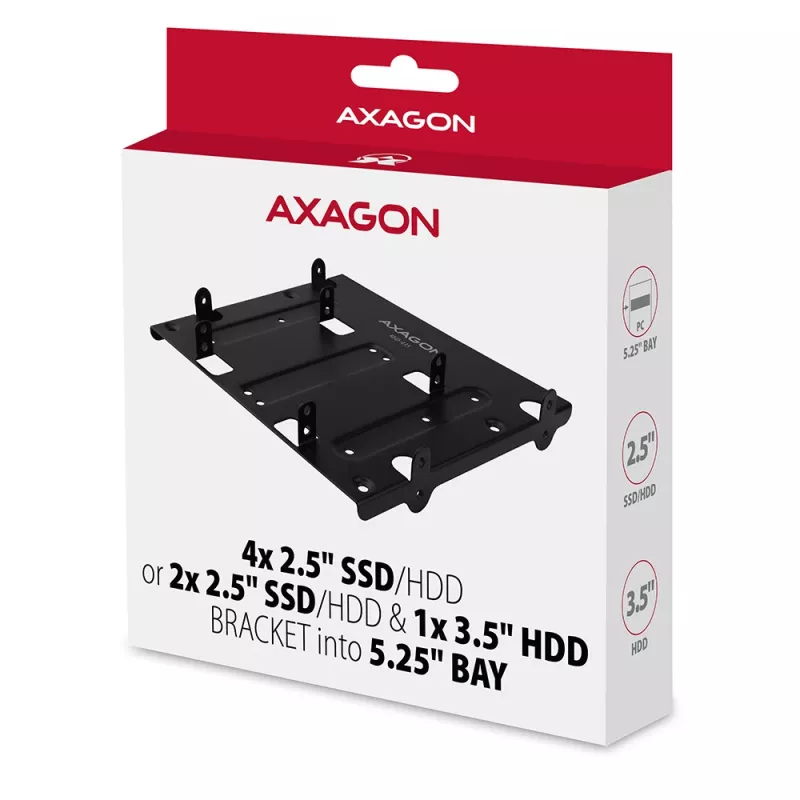

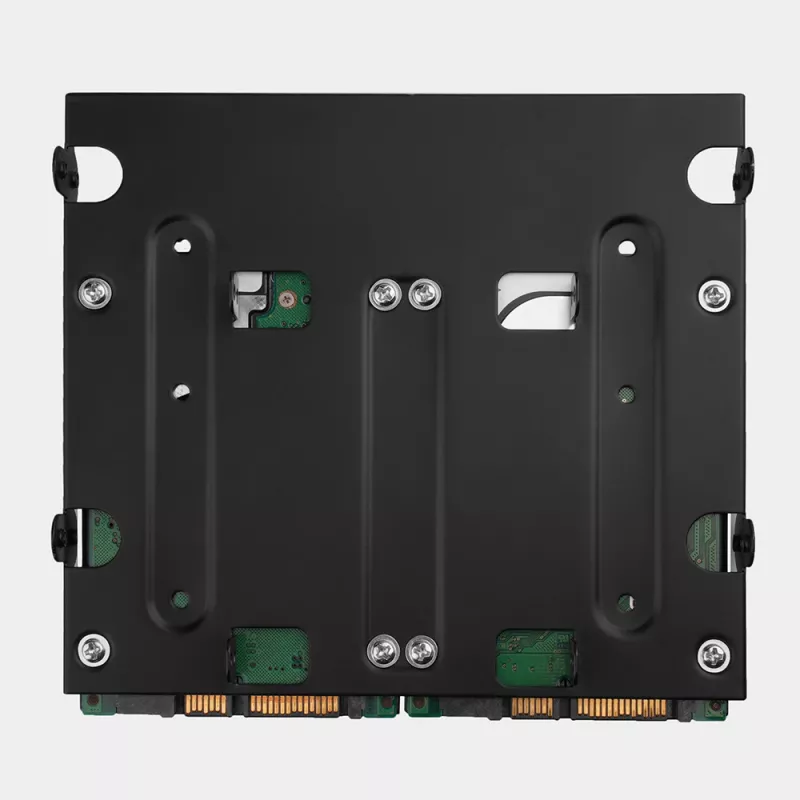

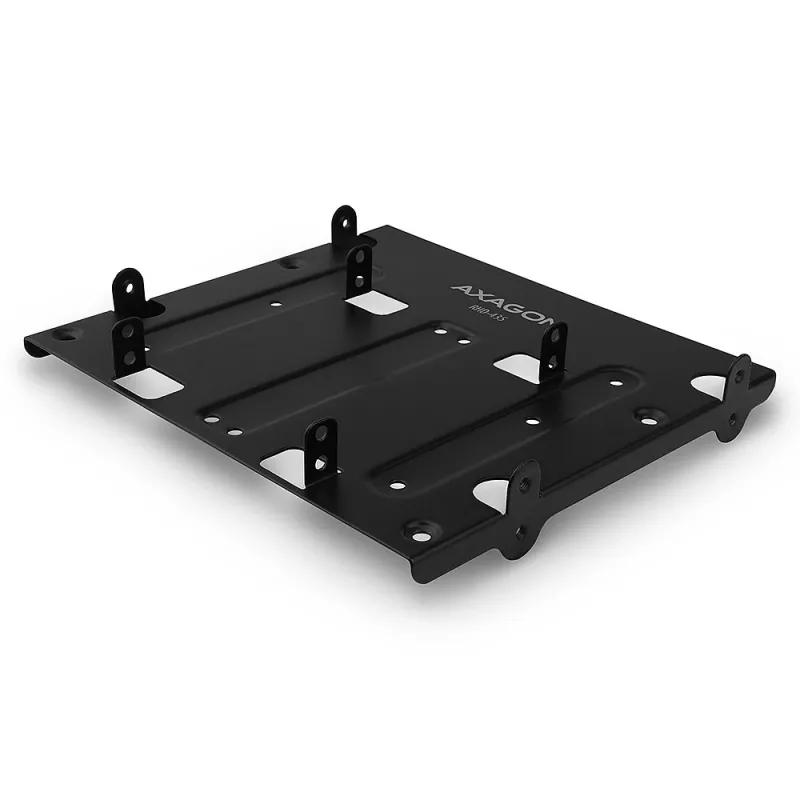

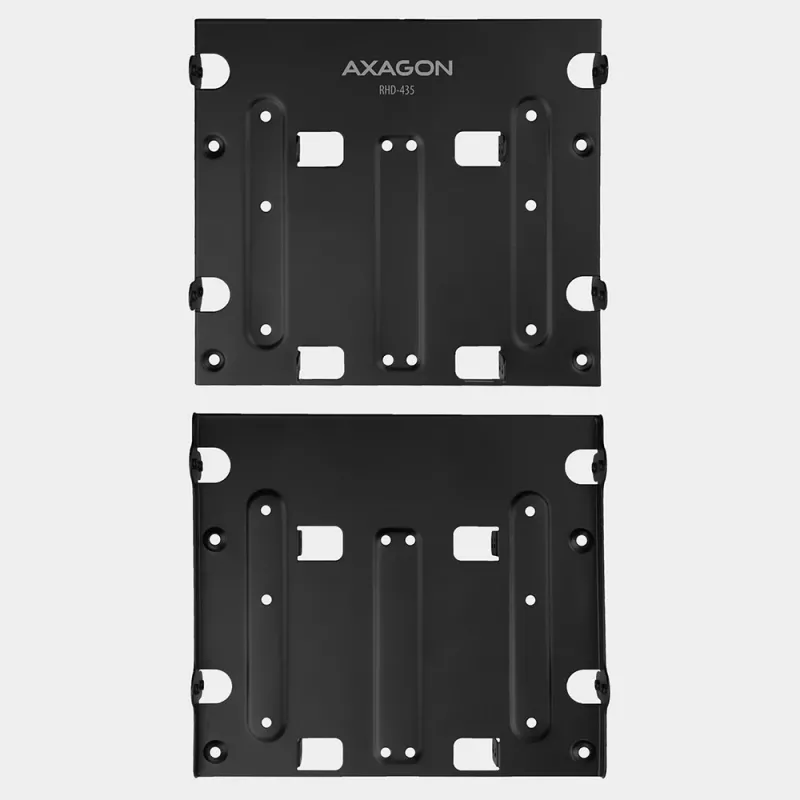

The AXAGON RHD-435 is a black metal mounting frame designed to install up to four 2.5" HDD/SSD drives into a single 5.25" bay, or to accommodate two 2.5" drives plus one 3.5" drive in the same 5.25" position of a PC case. The frame provides precise mounting points and comes with the necessary screws for fastening to the case. Its metal construction and profile aid in mechanical support and passive heat dissipation from installed drives.

Advantages

The metal construction ensures durability and stable support for HDD and SSD units while the compact design allows efficient use of a 5.25" bay. Supplied screws and accurately positioned mounting holes simplify installation. The frame supports multiple drive size combinations (four 2.5" drives or two 2.5" plus one 3.5"), offering flexible configurations for different storage needs.

Suitable for

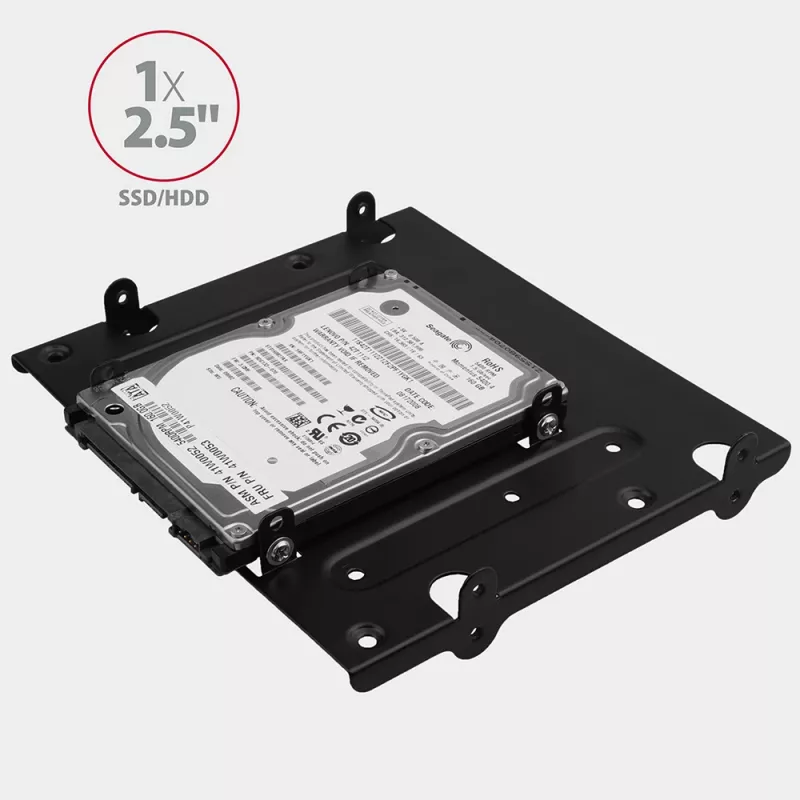

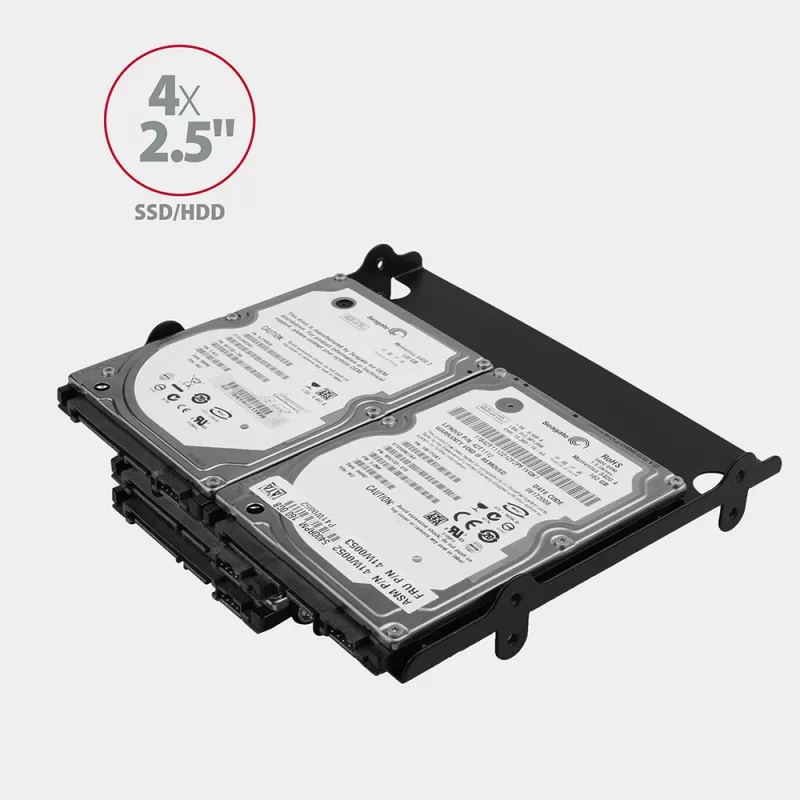

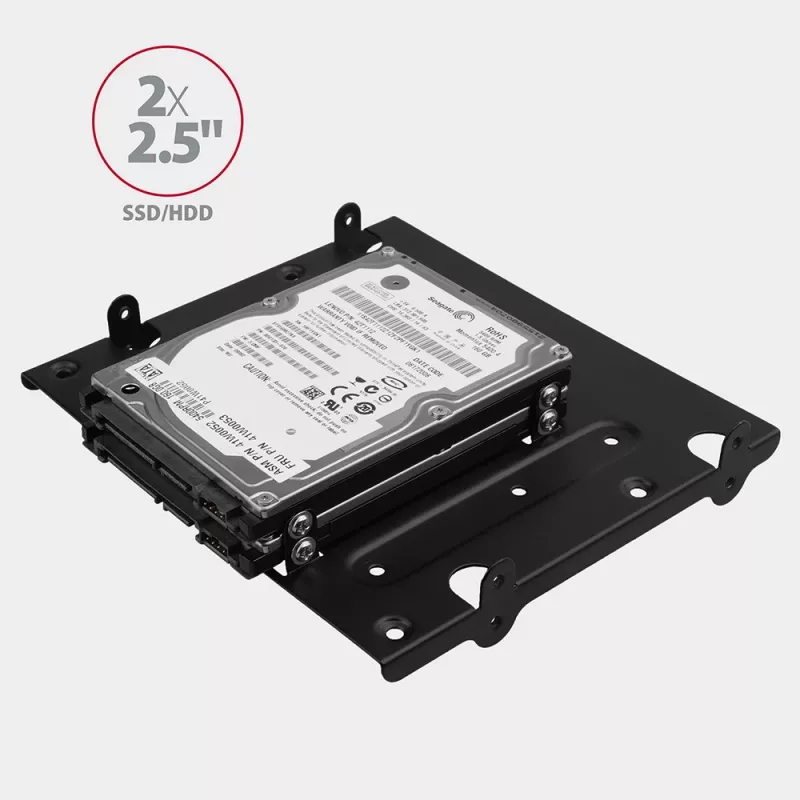

• Installing up to four 2.5" HDD or SSD drives in a 5.25" bay

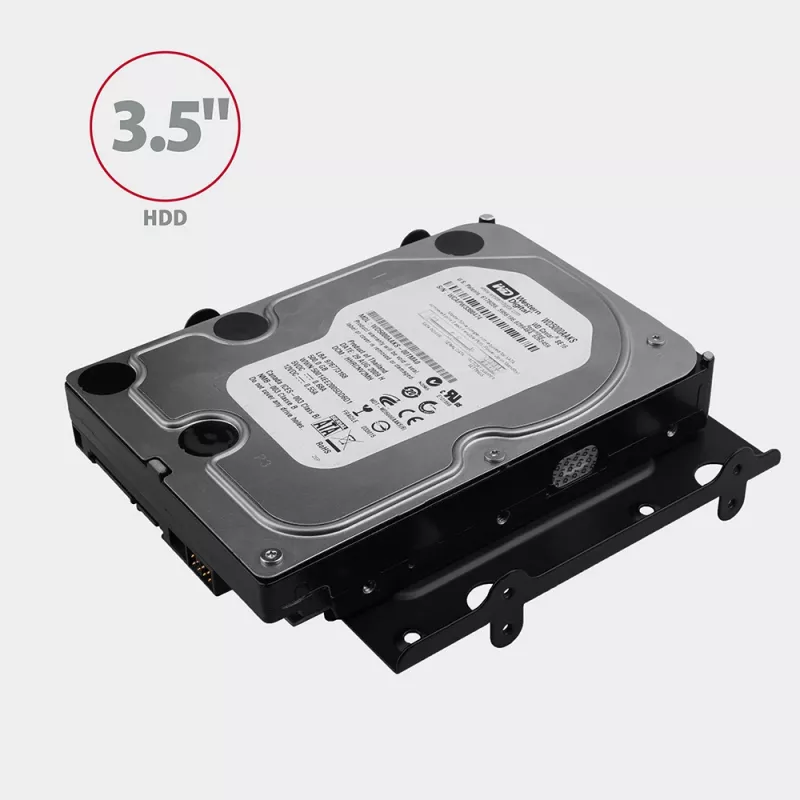

• Installing two 2.5" drives plus one 3.5" drive in a 5.25" bay
• Cases lacking dedicated 2.5" or 3.5" drive bays
• Upgrading or expanding internal storage in desktop PCs

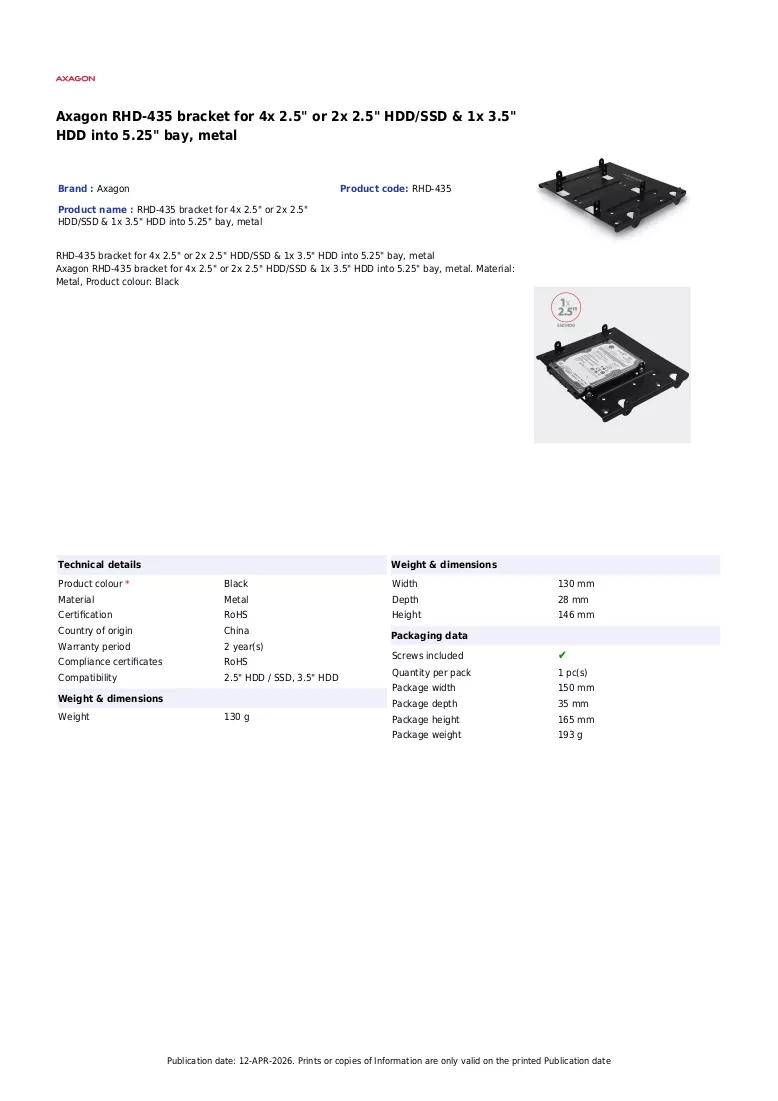

Key specifications

• Brand: AXAGON
• Model: RHD-435
• Material: Metal
• Colour: Black
• Supported drives: up to four 2.5" HDD/SSD or two 2.5" + one 3.5"
• Mounting position: 5.25" bay
• Weight: 0.13 kg

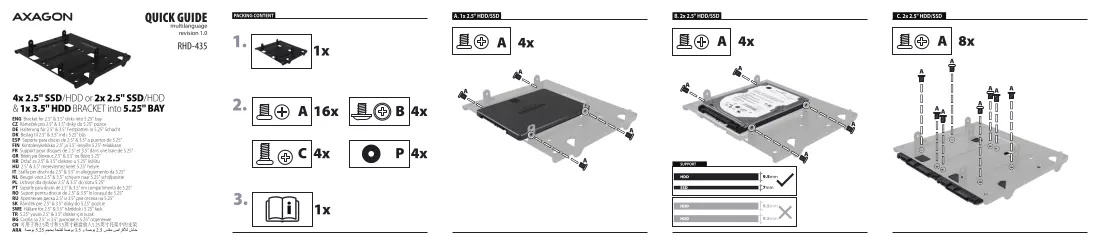

How to use

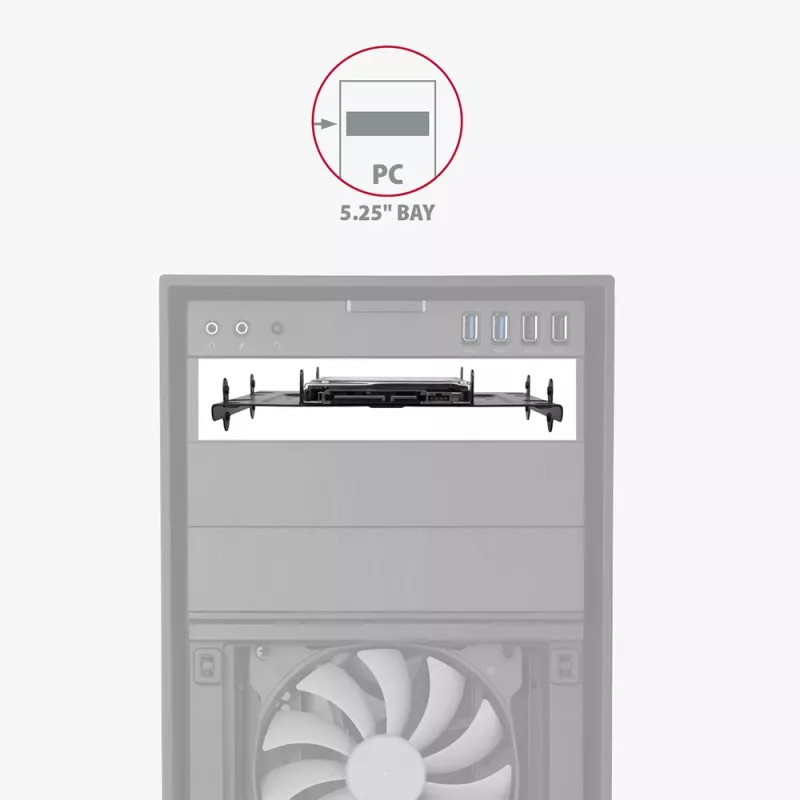

Fit the AXAGON RHD-435 into a free 5.25" bay of the PC case and secure the frame using the supplied screws through the designated mounting holes. Attach 2.5" or 3.5" drives to the frame using the appropriate screw holes: upper positions accept standard 7 mm and 9.5 mm 2.5" drives, while the lower position accepts a standard 3.5" drive or 2.5" drives without height limitation. Connect power and data cables to each drive after mechanical installation.

Recommendations

For optimal cooling, ensure case airflow passes over the mounted drives. Verify drive alignment with screw holes before tightening and use the supplied screws; if using third-party screws, match thread and length to avoid damage.
