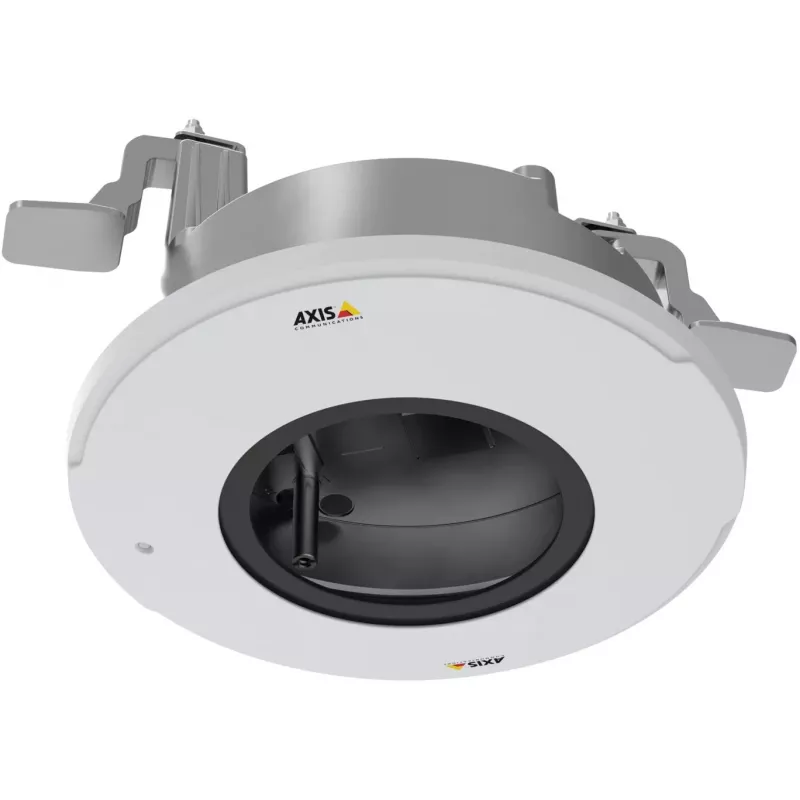

AXIS TP3201 Recessed Mount is a recessed ceiling mount designed for indoor drop ceiling installations and compatible with a wide range of Axis fixed dome network cameras. The metal-alloy enclosure provides protected cable routing with both 1/2" (M20) and 3/4" (M25) conduit holes and supports the optional use of an internal microphone (sold separately) with selected camera series. The design is suitable for installation in air-handling (plenum) spaces.

Advantages

The recessed metal-alloy enclosure offers durable, low-profile installation while providing conduit options for protected cable routing. Compatibility with many Axis fixed dome network cameras and support for an optional internal microphone increase installation flexibility. The unit is designed for use in plenum spaces and for installation in standard drop ceilings.

Suitable for

• Indoor drop ceiling installations
• Surveillance with Axis fixed dome network cameras
• Environments requiring plenum-rated installation
• Installations needing protected conduit cable routing

Key specifications

• Model: AXIS TP3201 Recessed Mount (MPN 01757-001)
• Material: metal alloy enclosure
• Conduit holes: 1/2" (M20) and 3/4" (M25)
• Compatibility: selected Axis fixed dome network cameras; supports optional internal microphone (sold separately)
• Suitable for: drop ceiling and plenum spaces
• Finish: white (as sold under Axis mount series)
• EAN: 7331021067400

How to use

Install the AXIS TP3201 Recessed Mount into a standard indoor drop ceiling opening and secure the enclosure according to ceiling type and local building codes. Route camera and power cables through the provided 1/2" (M20) or 3/4" (M25) conduit holes for protected cable management. Mount a compatible Axis fixed dome network camera into the enclosure and, if required, install the optional internal microphone following the camera and microphone manufacturer instructions. Ensure the assembly is secured and that all cable connections are correct before restoring power.

Recommendations

Verify camera compatibility with AXIS TP3201 before installation and use appropriate conduit fittings and firestop materials where required by local regulations. For microphone support, confirm compatibility with the selected camera series and purchase the internal microphone separately.
