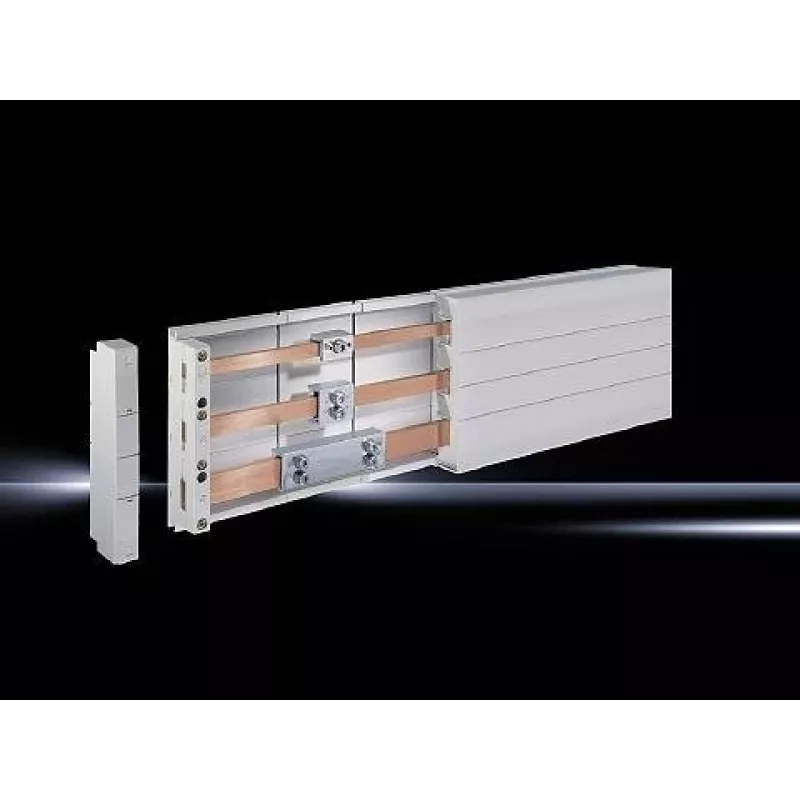

Soporte de barra colectora para barras colectoras planas de cobre Rittal SV, modelo 9340.050, RAL 7035

Rittal SV busbar holder model 9340.050 is a mounting accessory designed to support and secure flat copper busbars in electrical racks, distribution panels and industrial control cabinets. Supplied with a RAL 7035 finish, the holder provides stable mechanical fixation and, where required, electrical insulation to help maintain conductor positioning and separation inside switchgear assemblies and control enclosures.

Advantages

The busbar holder offers a compact, robust solution for organizing flat copper conductors while maintaining alignment and insulation. Its RAL 7035 finish provides a neutral, industry-standard appearance that integrates with common panel interiors. The design reduces stress on busbars by providing fixed support points and facilitates orderly routing and separation of phases or circuits.

Suitable for

Key specifications

How to use

Position the busbar holder at the required support points along the busbar run and secure it to the panel or enclosure mounting surface using appropriate fasteners. Place the flat copper busbar into the holder so that it is fully supported and aligned; ensure required clearances and phase separation are maintained. If insulation between conductors or between conductor and enclosure is required, verify that the holder is installed in the correct orientation to provide the intended electrical separation.

Recommendations

Verify busbar dimensions and clearances prior to installation, and use fasteners and torque settings recommended for the enclosure and busbar material. Follow applicable electrical codes and safety procedures when working on live equipment and ensure compatibility with the busbar cross-section to maintain secure mechanical and electrical performance.
