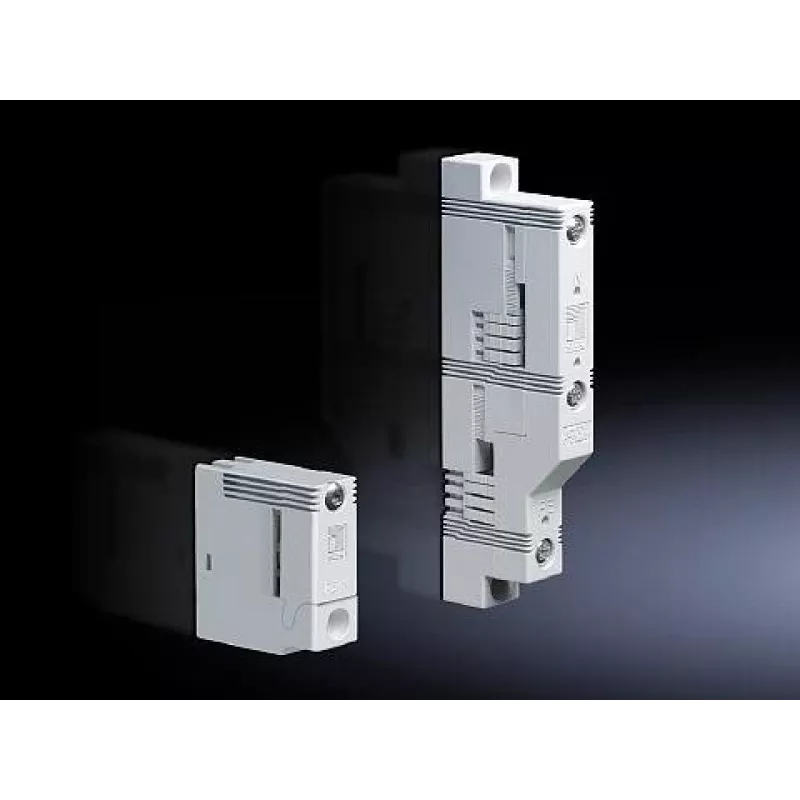

Soporte de barras colectoras para rack Rittal SV 9340030, accesorio de montaje para carcasas SV, RAL 7035

Rittal SV rack busbar holder is a mounting accessory designed for use with SV enclosures. Finished in RAL 7035, the holder secures busbars and supports organized power distribution within 19-inch racks and cabinets. It provides stable mechanical support for busbar runs and helps maintain clear separation and routing of power conductors in server rooms, industrial control panels and distribution cabinets.

Advantages

The busbar holder offers reliable mechanical fixation and consistent alignment of busbars to reduce strain on connections. Its RAL 7035 surface ensures visual compatibility with standard industrial enclosures, while the design enables simple installation and integration into existing rack or cabinet layouts. Durable construction supports long-term use in indoor electrical installations.

Suitable for

Key specifications

How to use

Position the busbar holder at the required location inside the enclosure where busbar routing is needed, aligning it with rack mounting points or cabinet mounting rails. Secure the holder using appropriate fasteners compatible with the enclosure’s mounting system, then place the busbar into the holder and fasten the conductor according to electrical connection standards. Ensure correct spacing and clearances for insulation and ventilation before energizing.

Recommendations

Verify compatibility with your specific SV enclosure model and follow all applicable electrical safety standards during installation. Use appropriate fasteners and torque settings, maintain required clearances from live parts, and perform insulation and continuity checks after installation.
