Soporte de escritorio InLine para TV / LED / TFT hasta 81cm 32 pulgadas máx. 9kg negro

Desk mount for flat screen monitors up to 32" with tilt and swivel functions. The InLine 23108J supports VESA 75x75 and 100x100 mm mounting patterns and includes a joint for flexible orientation. It can be mounted with a screw clamp on the table edge (up to approx. 85 mm) or through the tabletop (up to approx. 40 mm) and offers height adjustment up to 40 cm. The mount supports displays up to 9 kg and is supplied with the necessary accessories for attaching a screen.

Advantages

The InLine 23108J provides a wide tilt range of +/-45° and 360° rotation for versatile screen positioning. It is compatible with common VESA standards (75x75 and 100x100 mm) and offers both clamp and grommet mounting options to fit different desk setups. Height adjustability and included installation hardware make setup and ergonomic alignment straightforward.

Suitable for

• Home offices and workstations with flat screen monitors up to 32"
• Shared workspaces where flexible screen orientation is needed
• Environments requiring clamp or through-desk mounting

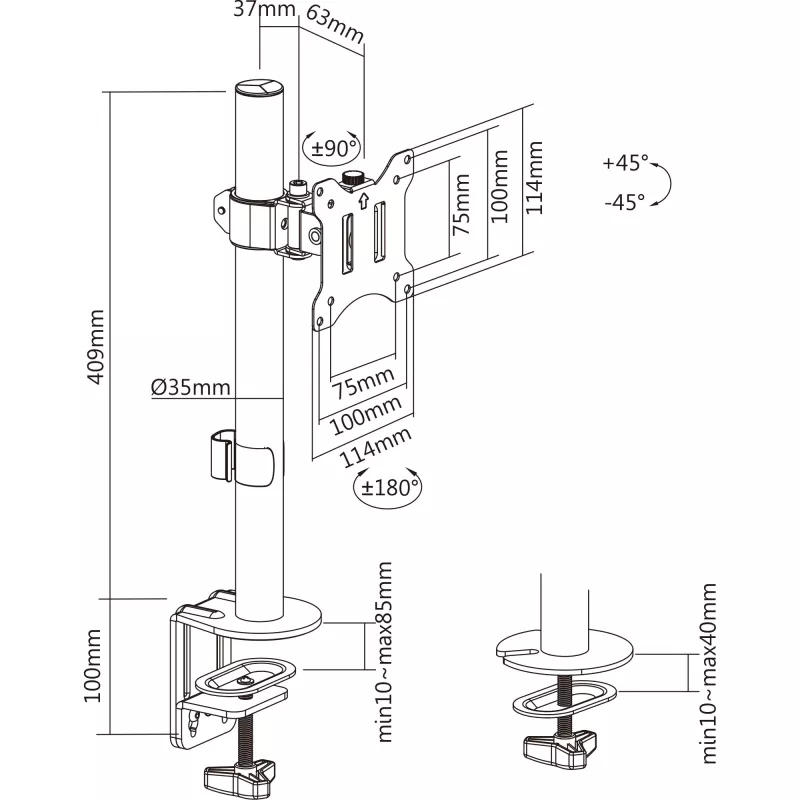

Key specifications

• Maximum screen size: 32"
• VESA compatibility: 75x75 mm, 100x100 mm
• Tilt range: +/-45°
• Rotation: 360°
• Height adjustment: up to 40 cm

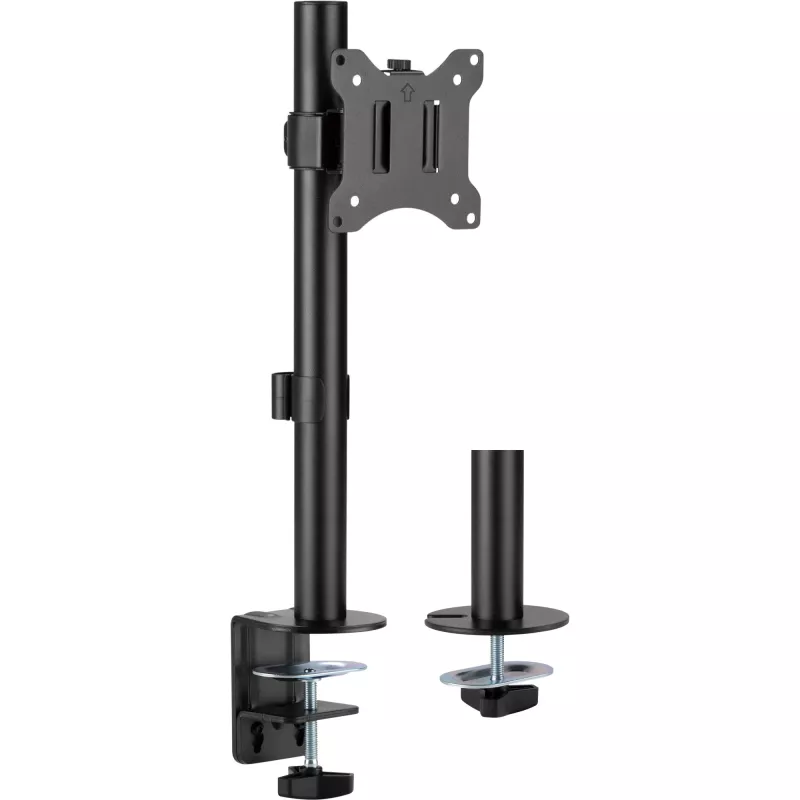

• Mounting: screw clamp (edge up to approx. 85 mm) or grommet (through up to approx. 40 mm)
• Maximum load capacity: 9 kg
• Included accessories: screw set (M4, M5), 2x Allen key, installation instructions

How to use

Attach the mount to the desk using either the screw clamp on the edge (for tabletops up to approx. 85 mm thick) or the grommet method through the tabletop (for thickness up to approx. 40 mm). Fix the VESA plate to the monitor using the supplied M4 or M5 screws, then secure the screen to the arm. Adjust height, tilt and rotation to the required viewing position and tighten all fasteners according to the installation instructions.

Recommendations

Ensure the monitor weight does not exceed the 9 kg maximum load and verify VESA compatibility before installation. Follow the included installation instructions and periodically check fasteners for safety.
