Soporte de esquina AXIS TP3302-E para montaje en exterior, rosca de 3/4 pulgadas, conexión de cable, 1 entrada, 1 salida, 689 × 232 × 191,3 mm

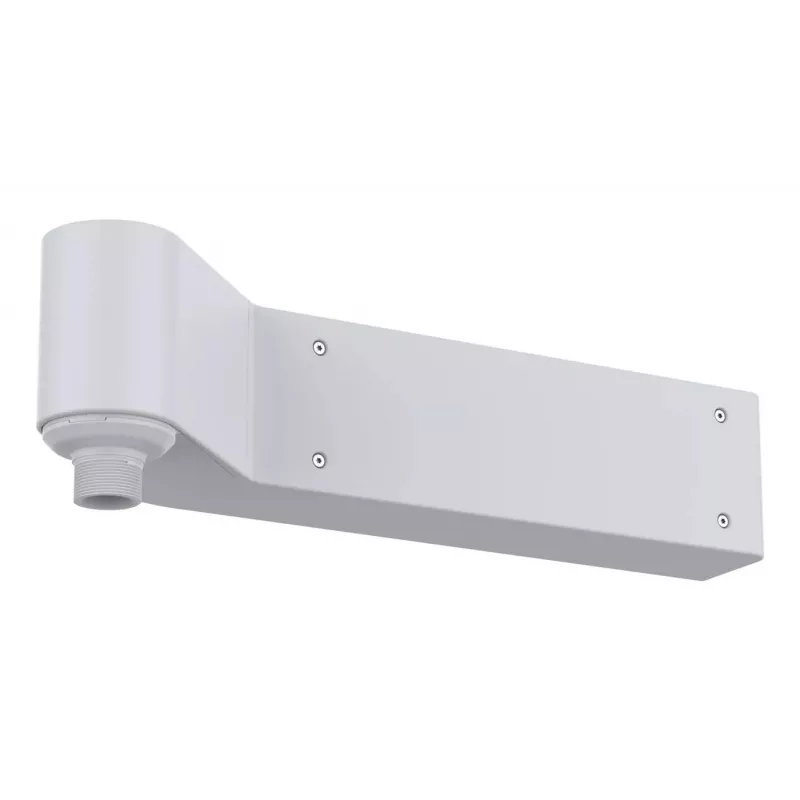

AXIS TP3302-E is a compact corner mount designed for outdoor placement and compatibility with Axis PTZ network cameras. The all-in-one housing provides an IP66-rated compartment that protects connectivity devices such as midspans and media converters, and includes a pre-mounted Ethernet cable for quick power and data connection. The mount is available with a 3/4" connecting thread and is supplied as a single unit with dimensions 689 × 232 × 191.3 mm.

Advantages

The mount combines a stylish appearance with robust construction: it is impact-resistant and weatherproof to suit both indoor and outdoor installations. Its surface can be repainted to match surroundings, and the bracket can be flipped to allow left- or right-side mounting. The enclosure is designed to have a service life compatible with multiple camera lifecycles, and its compatibility with various PTZ cameras and built-in cable simplifies installation and future upgrades.

Suitable for

Key specifications

How to use

Install the AXIS TP3302-E on a building corner using the provided fixing points and the appropriate 3/4" thread adapter for the camera. Route power and data through the pre-mounted Ethernet cable and place any required midspan or media converter inside the IP66 compartment to maintain weather protection. Flip the mounting bracket as needed to choose left- or right-side orientation, then secure the camera and test connectivity and camera functions.

Recommendations

To ensure long-term weather protection and reliable operation, confirm that all cable glands and seals are properly seated after installation and perform periodic inspections. Use compatible Axis PTZ cameras and suitable 3/4" thread adapters; repaint the outer surface if required to match the building without affecting seals.
