Soporte de monitor Ergotron TRACE 45-631-224

The Ergotron TRACE 45-631-224 monitor mount supports two displays up to 27 inches and 9.8 kg each, with compatibility for VESA patterns from 75 x 75 to 100 x 100 mm. The clamp-mounted, black aluminium design provides height adjustment and a modular system that adapts between tasks and postures while returning to a natural home position. The product includes a 15-year warranty and offers multiple mounting options including a standard 2-piece clamp, an optional TRACE Slim Profile Clamp Kit, or an optional TRACE Grommet Clamp Kit.

Advantages

The TRACE dual monitor mount provides ergonomic, flexible positioning for two screens, enabling intuitive adjustments for different tasks and collaborative work. Its modular design and premium 15-year warranty make it a durable investment. The clamp mounting system simplifies installation and the mount supports common VESA standards for broad monitor compatibility.

Suitable for

• Office workstations with two monitors
• Home offices where desk space and ergonomics are important
• Collaborative work environments requiring frequent posture or task changes
• Setups using VESA-compatible monitors (75 x 75 to 100 x 100 mm)

Key specifications

• Brand: ERGOTRON
• Model: TRACE 45-631-224
• Number of displays supported: 2
• Maximum screen size: 27"
• Maximum weight capacity per display: 9.8 kg
• Maximum VESA mount: 100 x 100 mm (supports 75 x 75 mm)

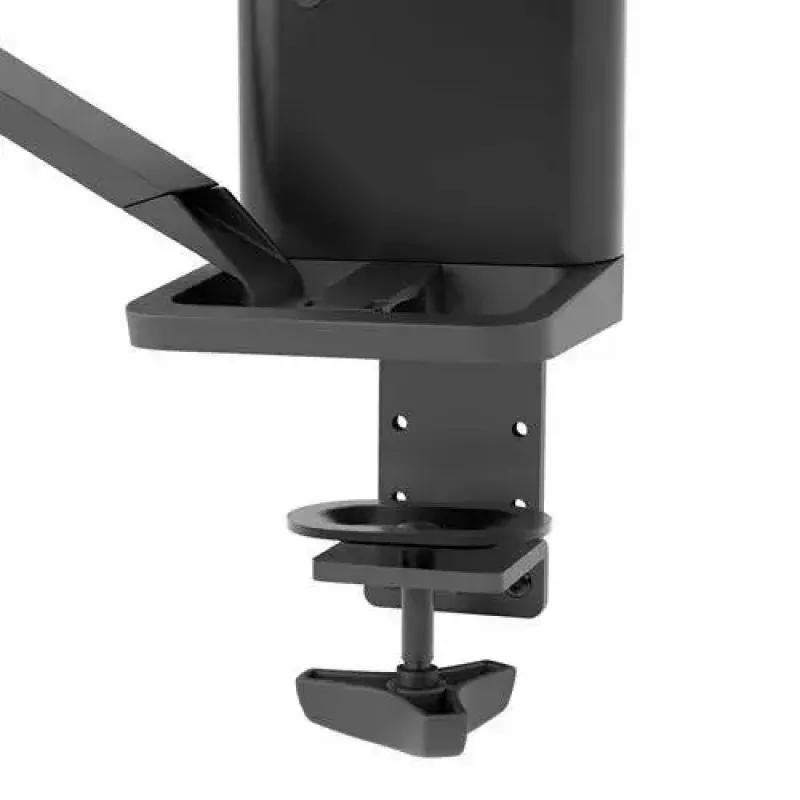

• Mounting type: Clamp (standard 2-piece) with optional slim profile or grommet kits
• Product colour: Black
• Product weight: 8.9 kg

How to use

Install the TRACE mount using the included standard 2-piece clamp or fit one of the optional mounting kits (Slim Profile Clamp Kit or Grommet Clamp Kit) to match your desk. Attach each monitor to the VESA plate (75 x 75 or 100 x 100 mm), ensuring each screen does not exceed 9.8 kg and 27 inches. Adjust the height and angle to your preferred ergonomic position; the mechanism returns to a natural home position and allows smooth transitions between postures and tasks.

Recommendations

Check monitor VESA compatibility and weight before installation, secure the clamp to a suitable desk edge or grommet hole, and follow the manufacturer instructions for safe assembly. For optimal ergonomics, set monitor centers at or slightly below eye level and maintain an arm’s-length viewing distance.
