Soporte de monitor Vision VFM-DAD/4 27" escritorio negro Bolt-through

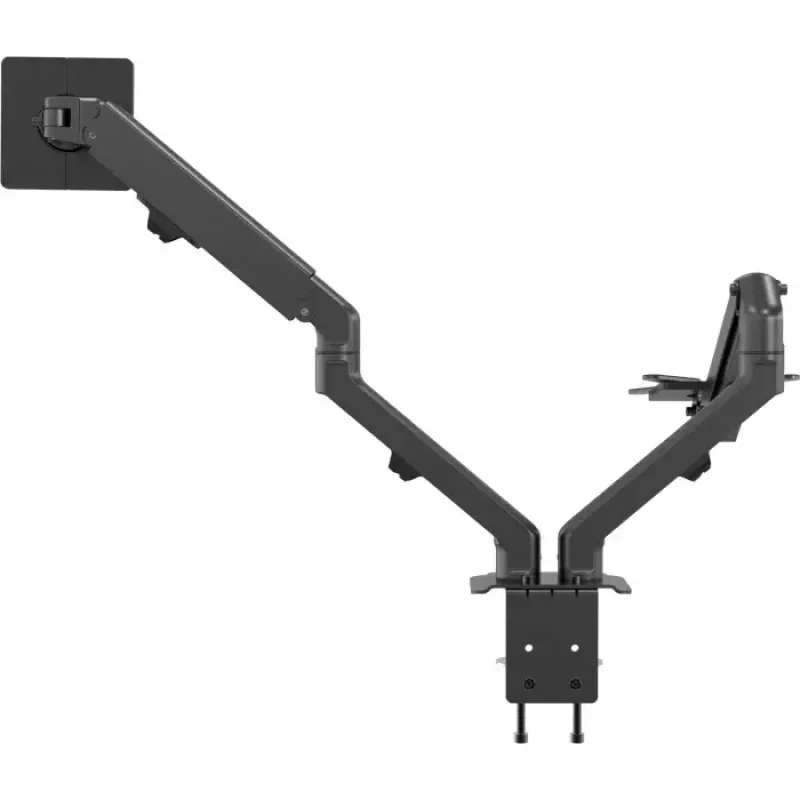

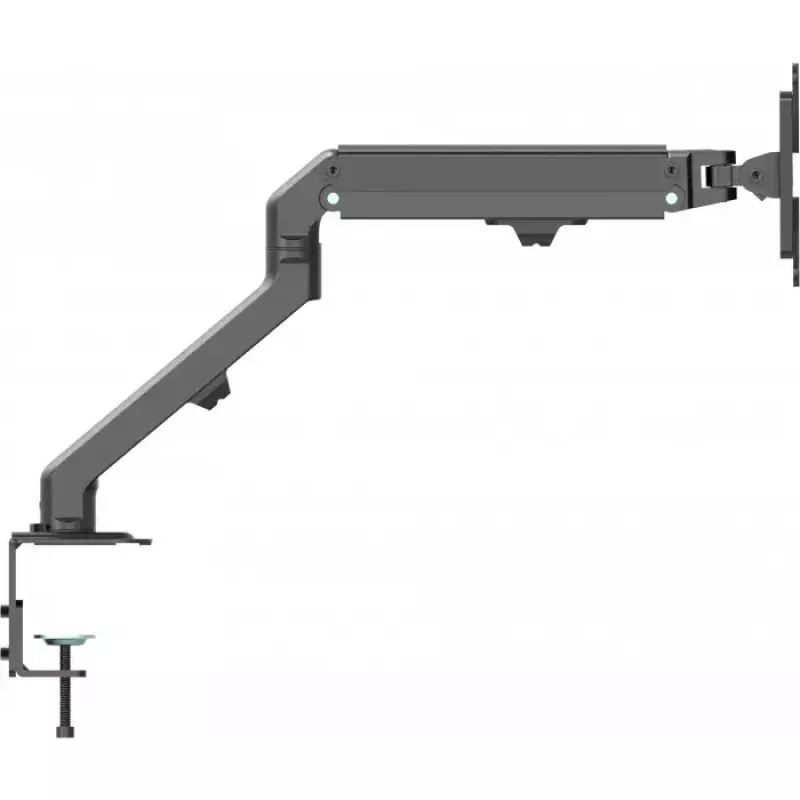

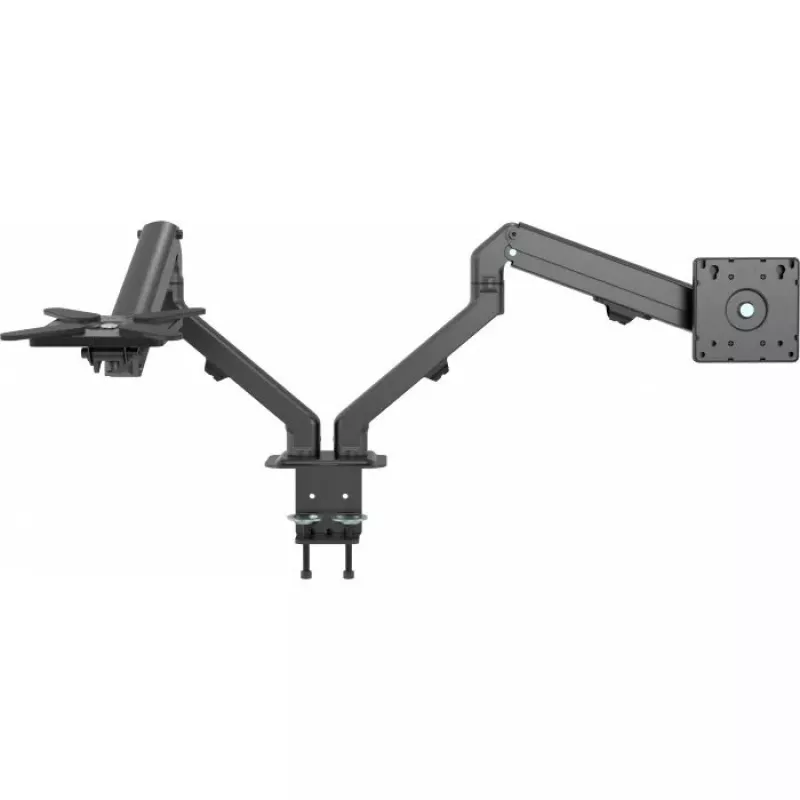

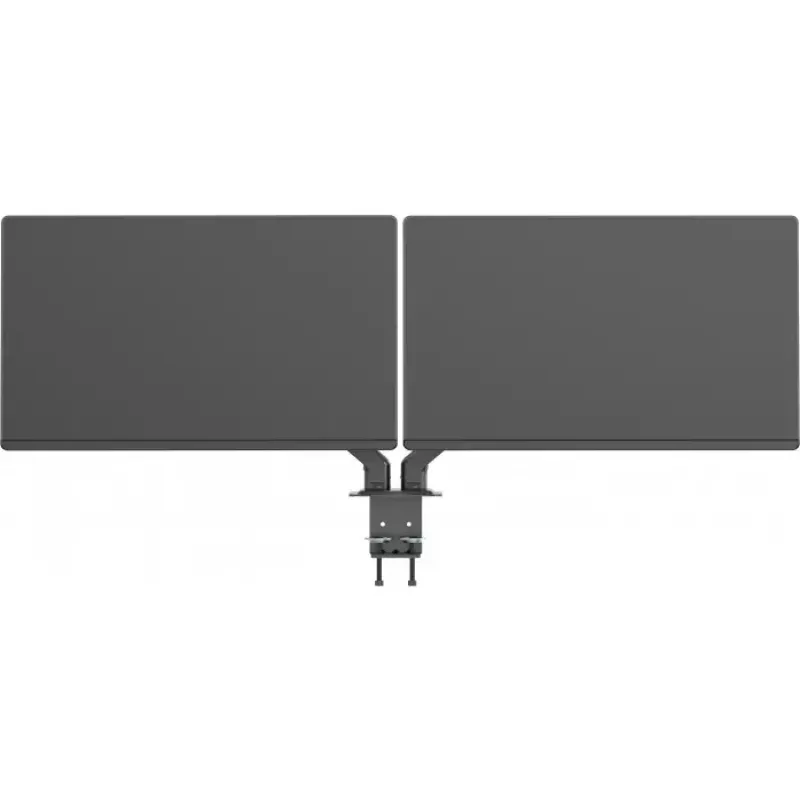

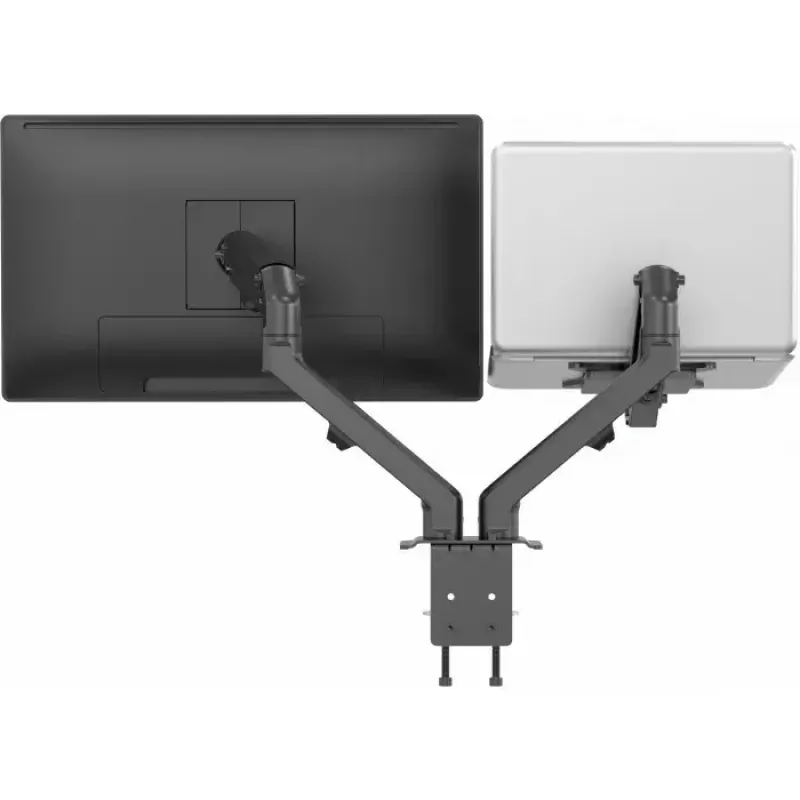

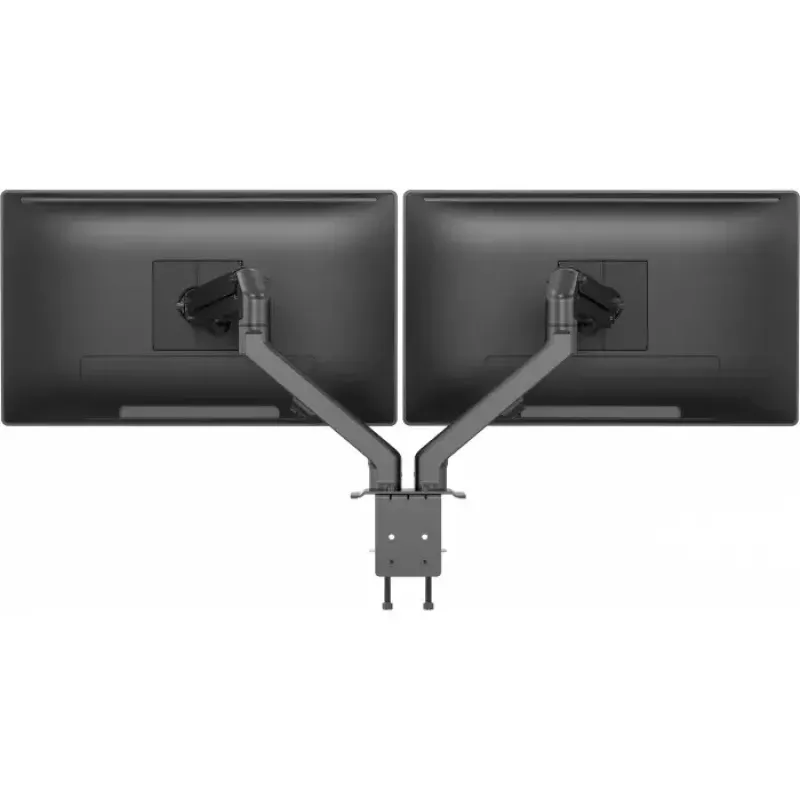

The Vision VFM-DAD/4 Dual Desk Arm raises two monitors off the desk to create a clear-desk workspace and improved ergonomics. It supports two flat-panel displays with 100x100 VESA mounting holes and a maximum load of 7 kg per screen. One arm can be converted into a laptop or tablet shelf using the provided extension strips, and the mount is supplied with cable clips, VESA covers and fittings for clamp or bolt-through (grommet) installation.

Advantages

The arm uses a counter-balancing spring mechanism that supports screen weights from 2 to 7 kg, providing smooth height adjustment without gas struts. Independent arms allow each display to move up and down separately, while near-infinite tilt, swivel and rotation let users position screens in portrait or landscape. The mount includes thumbscrews for faster display attachment, cable management clips, and VESA covers for a neater rear finish. All required parts for edge-clamp or bolt-through installation are included.

Suitable for

• Dual-monitor office workstations (17"–27" displays)
• Home offices where desk space is limited
• Retail or public-facing displays requiring tidy cable routing and covered VESA mounts
• Laptop or tablet use when converted to a shelf

Key specifications

• Brand: VISION
• Model: VFM-DAD/4
• Supported displays: 17" to 27" (fits any display with 100 x 100 mm VESA)
• Number of displays: 2
• Maximum weight per display (SWL): 7 kg
• Mounting options: clamp or bolt-through (grommet)
• Colour: Black
• Product weight: 4.5 kg

How to use

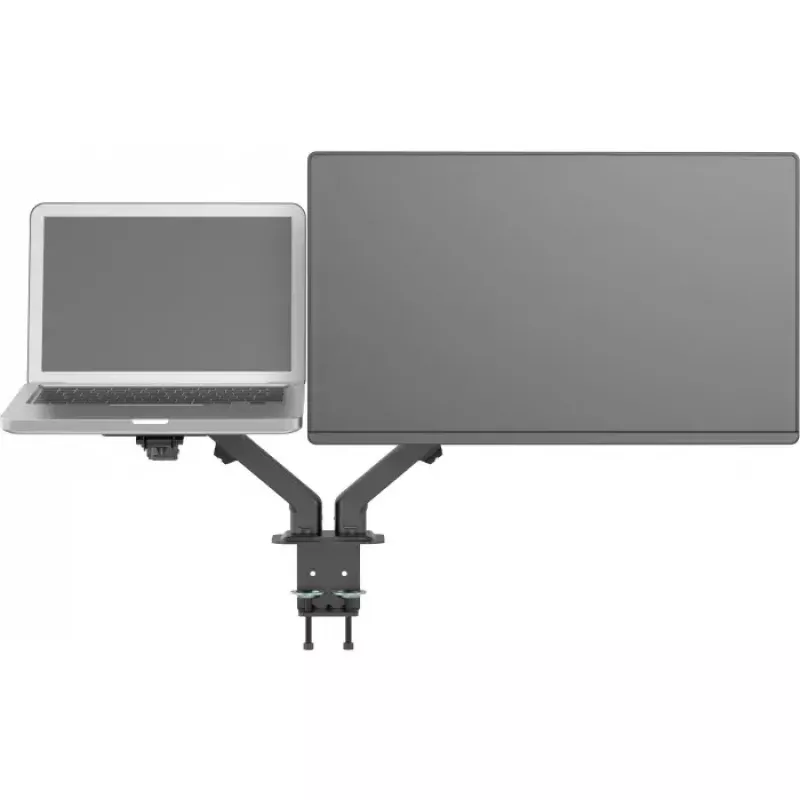

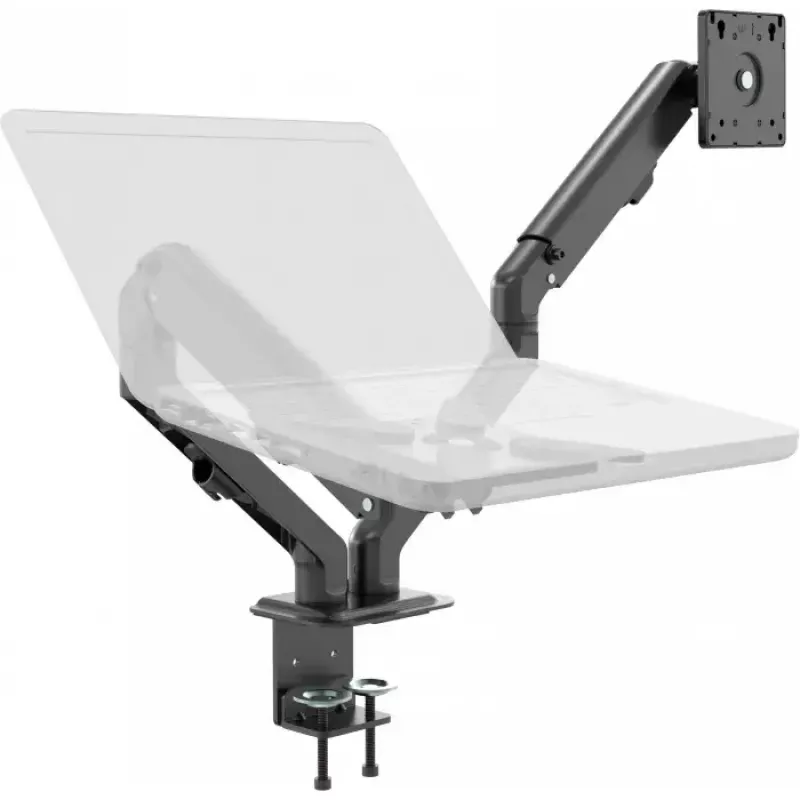

Attach each display to the VESA plate using the supplied thumbscrews, then secure the main arm to the desk using either the clamp or the bolt-through grommet fitting. Adjust the arm height using the counter-balancing spring mechanism to suit a comfortable viewing position; tighten the side bolts if fitting very light loads such as tablets to prevent the arm rising. Use the extension strips with silicon pads to convert one arm into a laptop or tablet shelf. Route cables through the provided clips and conceal VESA mounting points with the supplied covers where needed.

Recommendations

Use within the specified load range of 2–7 kg per arm and ensure displays have compatible 100 x 100 mm VESA mounting holes. For grommet installation, drill the required hole in the desk according to the included instructions. Regularly check thumbscrews and mounting fittings for tightness to maintain stability.
