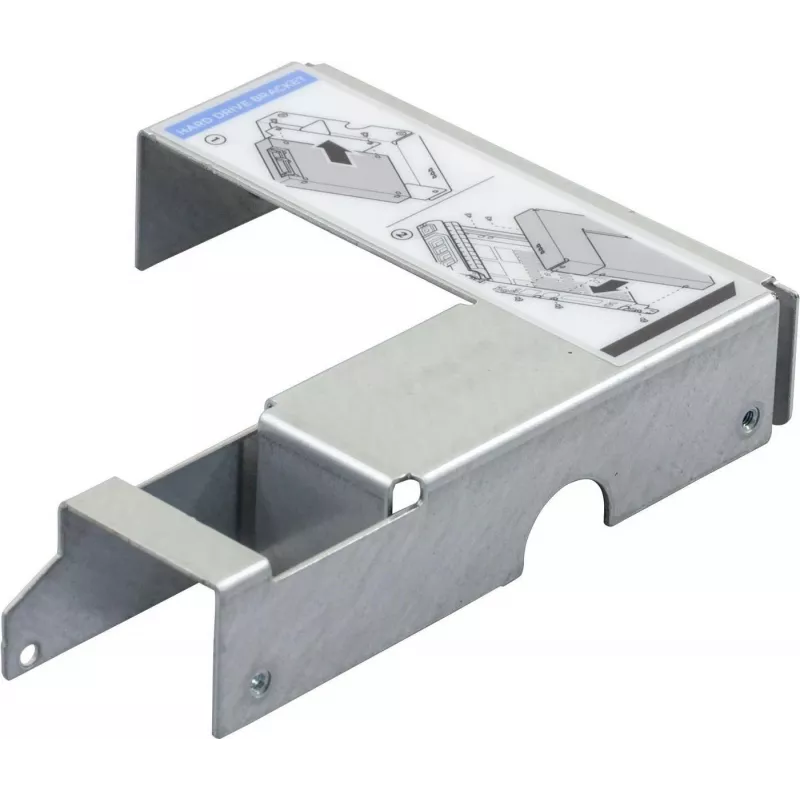

Soporte de montaje para unidad Dell Y004G — adaptador de SSD/HDD de 2,5" a bahía de 3,5"

Dell Y004G is a drive mounting bracket designed to adapt 2.5" SATA SSDs or HDDs for installation into standard 3.5" drive bays. It provides a secure mechanical interface that aligns the smaller drive with the screw holes and mounting plane of desktop or server chassis that do not include dedicated 2.5" bays. The bracket is intended to simplify upgrades, replacements and storage expansions by allowing use of 2.5" drives in systems built around 3.5" bays.

Advantages

The adapter offers a simple, tool-friendly method to install a 2.5" drive into a 3.5" bay while maintaining correct alignment and stable fixation. Its metal construction ensures rigidity and heat dissipation consistent with internal drive mounting. The bracket is compatible with common screw mounting patterns used by consumer and enterprise 2.5" drives and minimizes vibration transfer when secured to the chassis.

Suitable for

• Upgrading a desktop or server by installing a 2.5" SATA SSD in an available 3.5" bay
• Replacing a failed 3.5" drive with a 2.5" HDD or SSD where adapters are required
• Expanding storage capacity in systems without dedicated 2.5" mounting points
• Test benches or repair work that requires quick mounting of 2.5" drives

Key specifications

• Form factor conversion: adapts 2.5" drives to 3.5" bays
• Material: metal construction for structural support and heat conduction
• Compatibility: supports standard 2.5" SATA SSDs and HDDs with common screw hole patterns
• Mounting: screw-mount design aligning 2.5" drive mounting points to 3.5" bay screw positions
• Use environment: internal PC and server chassis installation

How to use

Position the 2.5" drive onto the adapter so that the drive's screw holes align with the bracket's mounting points and secure the drive using the supplied or standard M3 screws. Slide or place the assembled adapter with the drive into the 3.5" bay and fasten it to the chassis using the bay's mounting screws. Connect the drive to the system's SATA data and power connectors and verify recognition by the operating system or BIOS/UEFI. Use appropriate ESD precautions when handling internal components.

Recommendations

For reliable long-term operation, ensure screws are tightened to secure the drive without overtightening, confirm proper airflow around the mounted drive for cooling, and verify drive compatibility with your system's SATA interface and available bay depth before installation.
