Soporte de montaje Rittal VX 8620.400

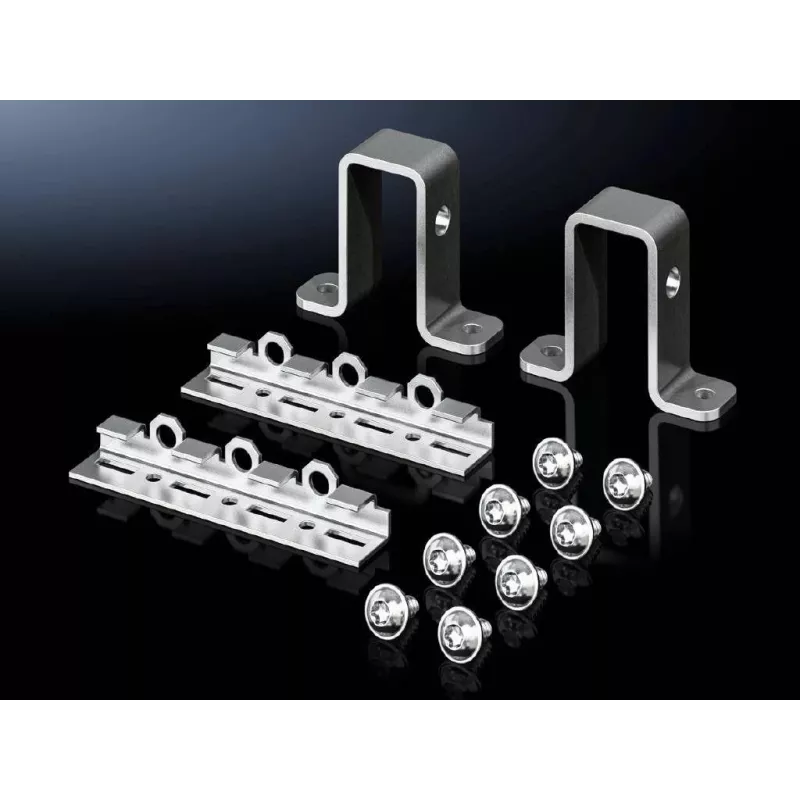

The Rittal VX 8620.400 mounting bracket is a stainless steel and sheet-steel component designed for configuring bases and plinths that have punched sections with mounting flanges or cable clamp rails. Supplied in packs of two and finished in grey, the bracket supports fitting 100 mm and 200 mm high base/plinth trim panels and is intended for secure, stable installation in electrical and enclosure applications.

Advantages

Constructed from stainless steel and sheet steel for corrosion resistance and mechanical strength, the Rittal VX 8620.400 offers durable performance in indoor and protected outdoor environments. Supplied as a pair, the brackets simplify installation and ensure consistent mounting alignment for base and plinth panels. The design accommodates both 100 mm and 200 mm trim heights and integrates with punched sections, mounting flanges, and cable clamp rails.

Suitable for

Key specifications

How to use

Position the mounting brackets on the base or plinth so that their punched sections align with the enclosure's mounting flanges or cable clamp rails. Secure the bracket using appropriate fasteners compatible with the enclosure material and the bracket’s mounting holes. Fit the 100 mm or 200 mm trim panels onto the brackets, checking alignment and stability. Tighten fasteners to the torque recommended for the chosen screws or bolts and verify that the assembly holds the trim panels firmly without deformation.

Recommendations

Use corrosion-resistant fasteners for installations in humid or corrosive environments. Verify compatibility of screw sizes and torque values with the enclosure manufacturer’s guidance. Handle stainless steel parts with protective gloves to avoid fingerprints and surface marks during installation.
