Soporte de pared BenQ WM04G3 soporte para proyector metálico blanco

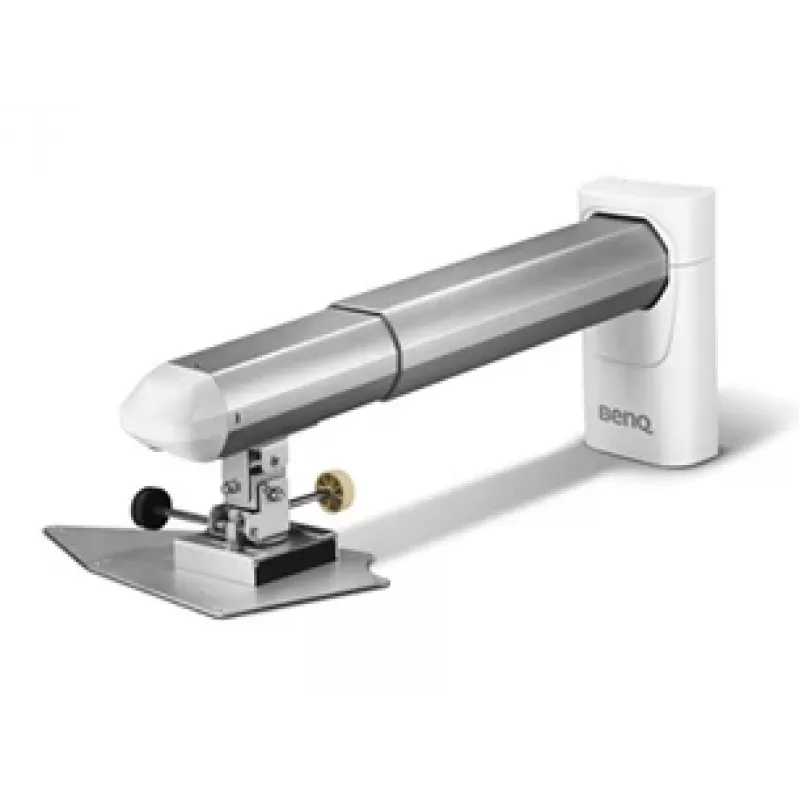

The BenQ WM04G3 Wall Mount is a metallic white mounting solution designed for BenQ short-throw projectors with a 0.4:1 throw ratio. Constructed from steel and aluminum alloy, the mount supports projectors up to 12 kg and measures 110 mm (width) x 215 mm (height) x 803 mm (depth). Its low-profile design secures the projector on the wall while keeping installation neat and space-efficient.

Advantages

The wall mount combines durable steel and aluminum alloy construction for a stable hold and a metallic white finish that integrates with most interiors. It provides three-dimensional tilt adjustment of up to ±10° and a horizontal adjustment mechanism for lateral positioning, with larger user-friendly knobs for easier fine-tuning during installation.

Suitable for

• BenQ short-throw projectors with a 0.4:1 throw ratio
• Projectors weighing up to 12 kg
• Home theaters, classrooms, meeting rooms, and retail displays

Key specifications

• Model: WM04G3 (MPN: 5J.J4V10.011)
• EAN: 4718755030581
• Maximum load: 12 kg
• Material: steel and aluminum alloy
• Finish: metallic white
• Dimensions (W×H×D): 110 mm × 215 mm × 803 mm
• Tilt adjustment: ±10° (three-dimensional)

How to use

Mount the WM04G3 securely to a suitable wall surface following the projector manufacturer's placement recommendations. Attach the projector to the bracket, then use the larger adjustment knobs to set tilt and lateral position until the projected image aligns with the screen. Ensure all fasteners are tightened and verify the mount is level and stable before use.

Recommendations

Confirm the projector's throw ratio and weight match the WM04G3 specifications before installation, and use appropriate wall anchors for the wall type. For optimal image alignment, adjust tilt and horizontal position with the projector powered on and displaying test patterns.
