Soporte de pared de doble brazo ultraplano B-Tech para pantallas planas VESA 600x400 35 kg

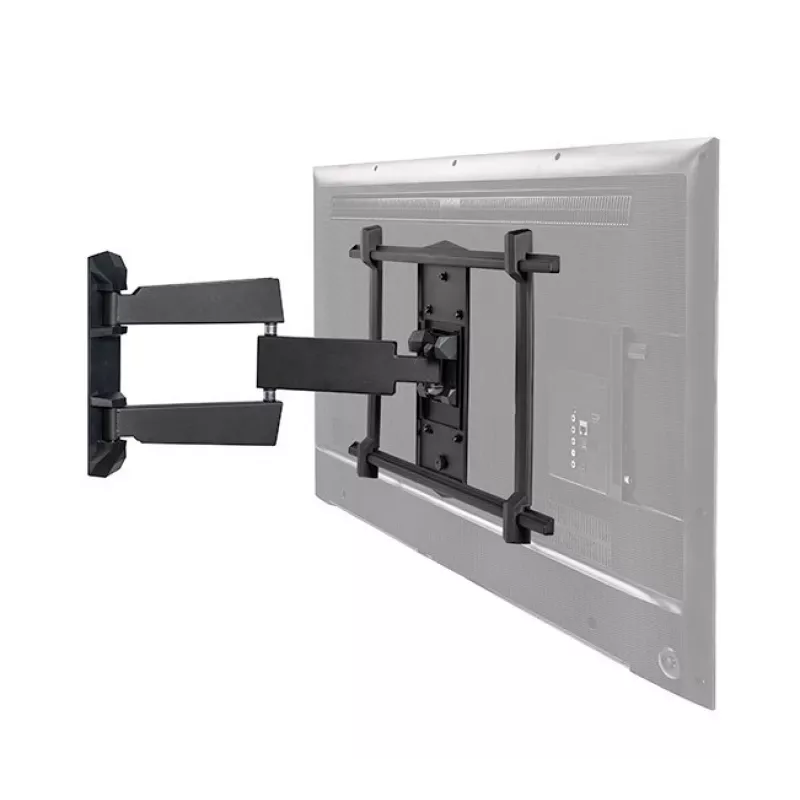

The B-Tech Ultra-slim Double Arm Flat Screen Wall Mount VESA 600x400 35kg is a slim, universal wall bracket designed to hold medium to large flat-screen TVs up to 35 kg and compatible with VESA 600 x 400 mm. The mount offers an ultra-slim profile with a folded depth of 50 mm and a black finish that suits both commercial and home interiors. It includes cover plates and integrated cable management for a tidy installation and supports tilt and swivel adjustments for flexible screen positioning.

Advantages

The double arm design provides smooth repositioning with three swivel points and an easy-to-tilt interface allowing tilt from -3° to 14° and a swivel range of up to 180°. When folded flat, the mount sits just 50 mm from the wall, saving space while keeping the screen stable up to the specified 35 kg load. Integrated cable management and cover plates conceal fixings and cables for a neat appearance.

Suitable for

• Mounting LED/LCD/Plasma flat-screen TVs up to 65 inches and 35 kg
• Commercial displays in meeting rooms, reception areas or retail environments
• Home TV installations where a low-profile or adjustable mount is required

Key specifications

• Manufacturer: B-TECH
• Model: BT8226/B
• EAN: 5019318306006
• VESA compatibility: 600 x 400 mm
• Maximum load: 35 kg
• Recommended screen size: up to 65 inches
• Tilt range: -3° to 14°
• Swivel range: up to 180° (three swivel points)
• Folded depth from wall: 50 mm
• Finish: black

How to use

Attach the wall plate to a suitable solid wall surface following the included manufacturer instructions and using appropriate fixings for your wall type. Secure the arms to the TV using the correct VESA holes (600 x 400 mm) and fasteners provided or specified. Adjust the tilt and swivel to the desired viewing angle; the double arm and three swivel points enable smooth movement. Use the cover plates and integrated cable management to route and conceal cables for a tidy finish.

Recommendations

Check the TV weight and VESA pattern before installation to confirm compatibility. Use appropriate wall fixings for the wall material (solid masonry or studs recommended). If unsure about mounting into studs or masonry, consult a qualified installer. Do not exceed the 35 kg load limit.
